What Types of Wheels Are Used in Electric Pallet Trucks?

Views: 0 Author: Site Editor Publish Time: 2026-06-13 Origin: Site

The wheel is the only contact point between an electric pallet truck and the ground. It directly determines the equipment‘s maneuverability, safety, service life, and even battery range. This article will explain the wheel types, selection criteria, and best matches for different working conditions of the Electric Pallet Truck .

1.Basic Components of Electric Pallet Truck Wheels

A complete wheel typically consists of three parts:

Component	Function	Common Materials
Wheel core	Bear load, connect to drive shaft	Nylon, cast aluminum, cast iron, polypropylene
Tread	Contact ground, provide grip and cushioning	Polyurethane, rubber, nylon
Bearing	Reduce friction, ensure smooth rotation	Ball bearing, roller bearing

The material choice for each component directly determines wheel performance and application suitability.

2.Common Wheel Types and Characteristics

2.1Polyurethane Wheels (PU)

This is currently the most commonly used wheel type for electric pallet trucks, dominating the market.

Characteristic	Rating	Description
Wear resistance	★★★★★	Excellent, long service life
Floor protection		Does not damage epoxy floors
Floor protection		Extremely quiet operation
Grip (dry conditions)	★★★★☆	Excellent on indoor dry surfaces
Grip (wet/oily conditions)	★★☆☆☆	Prone to slipping on water or oil
Cost	★★★☆☆	Moderately high

Applications: Indoor epoxy floors, ordinary concrete floors, clean rooms, warehouse aisles.

2.2Rubber Wheels

Characteristic	Rating	Description
Wear resistance	★★★☆☆	Less wear-resistant than polyurethane
Floor protection	★★★★☆	Soft, does not damage floors
Noise level		Low noise
Grip (wet/oily conditions)		Significantly better than polyurethane
Cost		Relatively inexpensive

Applications: Areas with possible water or oil stains, warehouses with many slopes.

2.3Nylon Wheels

Characteristic	Rating	Description
Wear resistance	★★★★☆	Very wear-resistant
Floor protection	★★☆☆☆	Hard surface may damage floors
Noise level	★★☆☆☆	Noisy
Load capacity	★★★★★	Extremely high
Cost	★★☆☆☆	Inexpensive

Applications: Heavy-load conditions, areas where floor scratches are not a concern.

2.4Off-Road Tires (Pneumatic/Solid)

Characteristic	Rating	Description
Wear resistance	★★★★☆	Solid tires have good wear resistance
Floor protection	★★★☆☆	Depends on surface
Grip (outdoor uneven)	★★★★★	Clear advantage on gravel and dirt roads
Shock absorption	★★★★★	Pneumatic tires offer excellent shock absorption
Cost	★★☆☆☆	Higher

Applications: Outdoor cross-building transfers, gravel roads, asphalt surfaces, construction sites.

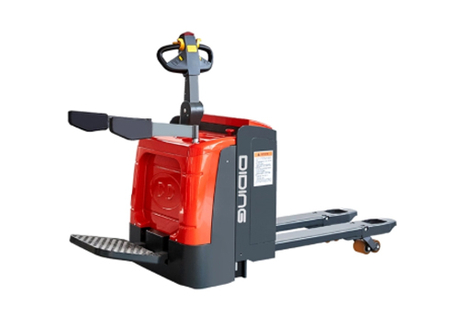

Take Diding Lift‘s 2T Stand On Pallet Truck Off Road CBDE as an example. This Electric Pallet Truck features off-road tires and solid structural design with high stability, maintaining stable travel even on outdoor surfaces such as gravel roads and asphalt.

Key Performance Comparison of Four Main Types of Wheels.png

Comparing the performance of the four types of tires, the off-road tire stands out more.

3.Wheel Selection Guide: Quick Match by Working Condition

Working Condition	Recommended Wheel Type	Reason
Indoor epoxy floor, no water/oil	Polyurethane wheels	Floor protection, quiet, wear-resistant
Indoor floor with possible water/oil stains	Rubber wheels	Better anti-slip performance
Cold storage operation (-25°C)	Low-temperature polyurethane wheels	Standard polyurethane hardens and cracks at low temperatures
Outdoor cross-building transfer (asphalt/concrete)	Polyurethane or rubber wheels	Depends on surface smoothness
Outdoor uneven surfaces (gravel/dirt roads)	Off-road tires	Strong grip, good shock absorption
Heavy load, ultra-heavy load (>3 tons)	Nylon or steel-core polyurethane wheels	High load capacity
Noise-sensitive environments (hospitals, labs)	Polyurethane wheels	Quietest operation

Note: Cold storage operation requires specially selected low-temperature wheels. Standard polyurethane wheels harden, crack, or even shatter at -25°C. The 2T Stand On Pallet Truck Off Road CBDE can be customized with a cold storage package, with wheel materials optimized for low temperatures to ensure stable and reliable operation in freezing environments.

4. Easily Overlooked Wheel Details

4.1 Effect of Wheel Diameter

Wheel Diameter	Advantages	Disadvantages	Applications
Small (<150mm)	Low center of gravity, good stability	Poor maneuverability, easily gets stuck in floor gaps	Indoor smooth floors
Large (>200mm)	Good maneuverability, strong obstacle clearance	Higher center of gravity, slightly larger turning radius	Outdoor, warehouses with rails or floor joints

4.2 Dual Wheel vs. Single Wheel

Single wheel: Simple structure, low cost, suitable for standard conditions

Dual wheel: Larger contact area, better stability, suitable for heavy loads or uneven floors

4.3 Warning Signs of Wheel Wear

Sign	Possible Cause	Recommendation
“Flat spots” on tread	Long-term parking on sharp objects	Change parking habit, or replace wheels
One-sided wear	Bent wheel axle or unbalanced load	Check axle, adjust load distribution
Cracks or peeling on tread	Aging or low-temperature embrittlement	Replace immediately — safety risk
Vibration or noise during travel	Damaged bearing	Replace bearing or entire wheel

5. Summary: Choose the Right Wheels for Twice the Result with Half the Effort

Core Principle	Description
Choose wheels by condition	Polyurethane for indoor, off-road tires for outdoor, low-temperature for cold storage
Regular inspection	Check tread wear and bearing condition monthly
Timely replacement	Replace immediately when worn to limit or cracks appear
Pay attention to diameter	Prefer large diameter for outdoor or warehouses with floor rails

If you are selecting the right wheels for your warehouse‘s Electric Pallet Truck, or want to learn about the wheel configuration and working condition adaptability of the 2T Stand On Pallet Truck Off Road CBDE, please contact Diding Lift. This professional manufacturer has over 12 years of industry experience and a 65,000 m² factory. All products comply with European EN standards and ISO, CE, and EU certifications .

Need wheel selection advice, condition assessment, or equipment pricing? Send an email to sales@didinglift.com — our professional team will respond within 24 hours.

References：

1.Thompson, R. (2025). Electric Pallet Truck Wheel Technology: A Comprehensive Guide to Polyurethane, Rubber, Nylon, and Off-Road Tires. Logistics Equipment Research Publishing.

2.Williams, P., & Chen, L. (2026). Surface Protection and Traction Optimization: Selecting the Right Wheel Material for Electric Pallet Trucks in Different Warehouse Environments. International Journal of Material Handling, 23(3), 56-74.

3.Roberts, S. (2025). Low-Temperature Wheel Performance: Comparative Testing of Polyurethane and Rubber Compounds for Cold Storage Electric Pallet Trucks. Sustainable Logistics Review, 14(4), 91-109.

4.Garcia, M., & Nakamura, K. (2024). Off-Road Electric Pallet Truck Wheel Design: Traction, Durability, and Terrain Adaptability. Industrial Equipment & Maintenance Journal, 19(5), 123-141.
