What Is the Difference Between Walkie and Ride-On Pallet Stackers?

In warehousing operations, the operation mode of an Electric Pallet Stacker directly impacts operational efficiency and operator fatigue. Walkie and stand-on are the two most common types. While they may appear similar, they correspond to completely different application requirements. This article provides a systematic comparison across operational experience, performance parameters, and applicable scenarios to help you make a precise choice based on your actual operational characteristics.

1. Core Differences at a Glance

2. Space and Aisle Adaptability

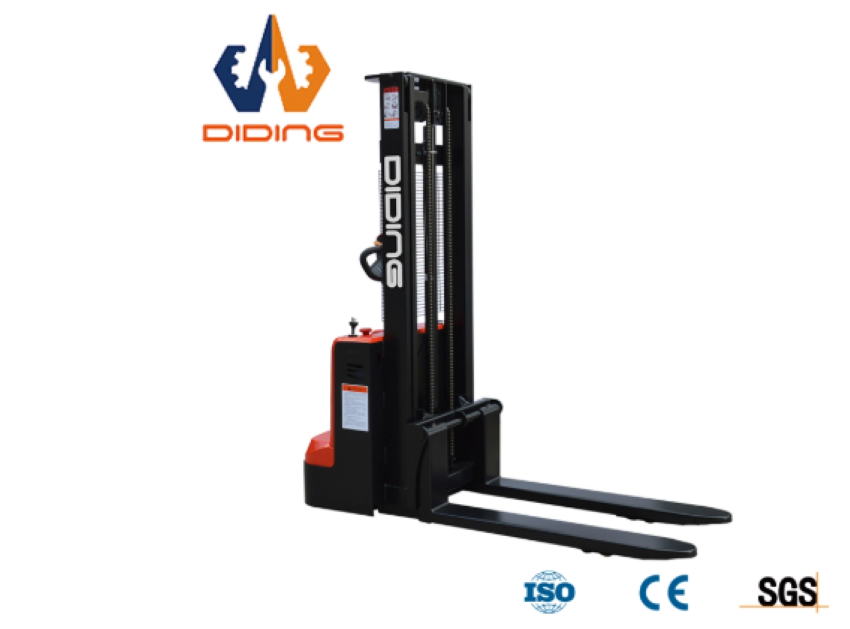

This is the core advantage of the walkie stacker. Taking Diding Lift's 2T Electric Walkie Pallet Stacker CDDA as an example, its minimum turning radius and corresponding aisle width requirements are both more reasonable, offering wider application range and greater overall feasibility. In contrast, stand-on equipment adds a platform and operating position, which increases turning radius and aisle width requirements.

Product-Related Advantage: The CDDA's solid structural design with high stability and being engineered for large-tonnage load capacity enable flexible maneuvering in narrow aisles while ensuring safe heavy-load operations. Customizable fork length & width further ensures precise adaptation to different pallet specifications.

3. Operational Efficiency and Operator Experience

The core advantages of the stand-on stacker lie in efficiency and comfort. Operators stand on the platform and ride with the equipment, eliminating the need to walk alongside, which significantly reduces physical exertion during long-distance transport and multi-shift operations. Additionally, stand-on equipment typically offers higher travel speeds and lifting speeds.

However, this efficiency advantage does not apply unconditionally. According to research from manufacturers such as Toyota Material Handling Europe, the efficiency advantage of stand-on design becomes significant only in scenarios where transport distance exceeds 30 meters or where single-shift operation time is prolonged. For short-distance, high-frequency repetitive stacking operations, the walkie design's flexibility advantage is more prominent.

Product-Related Advantage: The CDDA is equipped with a 0.9kW AC drive motor and a 2.2kW AC lifting motor, providing smooth and precise power output for frequent start-stop stacking operations. The built-in charger design and 24V/82Ah maintenance-free gel battery ensure quick recharging during breaks. It also supports an optional lithium battery upgrade / LI-ION battery compatibility to meet multi-shift continuous operation requirements.

4. Pallet Adaptability and Operational Range

Stand-on stackers typically adopt a counterbalanced (no straddle legs) design, which can accommodate double-face pallets, mesh pallets, non-standard pallets, and other load types that cannot enter leg-supported designs. Walkie stackers are mostly straddle (with legs) designs, primarily suitable for single-face pallets. For double-face pallet handling, a wide-leg or counterbalanced model is required.

5. How to Choose?

6. Conclusion and Action Recommendations

Choosing between a walkie and a stand-on Electric Pallet Stacker is essentially about balancing aisle adaptability, operational flexibility, and long-distance efficiency. For narrow-aisle, short-distance indoor stacking scenarios, a walkie design (such as the CDDA) is the more economical and flexible choice. For scenarios with wider aisles, long-distance transport, and a focus on labor efficiency, a stand-on design offers greater advantages.

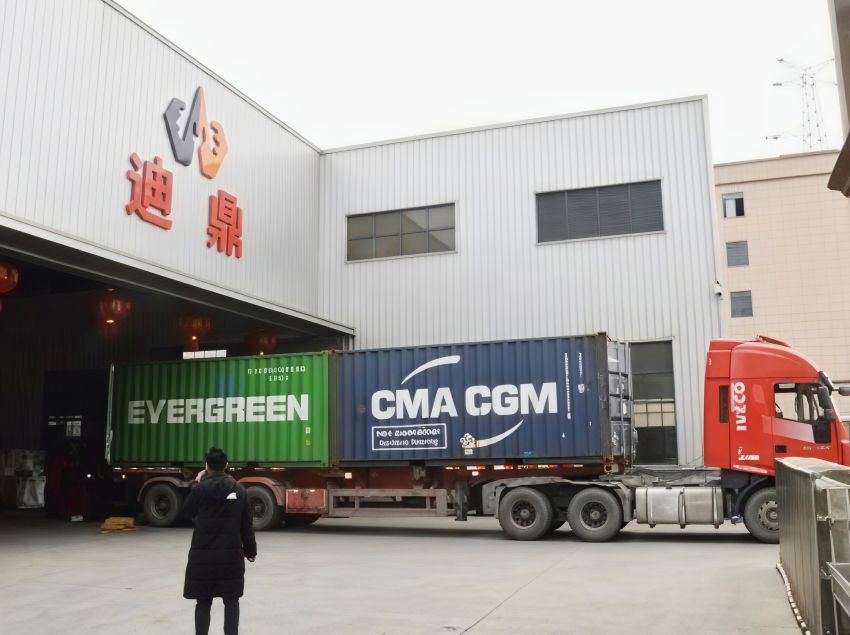

Diding Lift has 12 years of experience and a 65,000 m² factory & workshop, with products holding Europe EN & ISO, CE, EU Certificates, and supports ODM/OEM cooperation & customization. Its 2T Electric Walkie Pallet Stacker CDDA combines a 1494mm minimum turning radius with 2-ton load capacity, making it a mature choice for narrow-aisle walkie stacking operations.

If you need detailed selection recommendations and customized solutions tailored to your operating conditions, please send an email to sales@didinglift.com, and our professional team will provide one-on-one support.

References：

1.Martinez, A., & Okafor, N. (2025). Walkie vs. Stand-on Electric Pallet Stackers: A Comparative Study of Operational Efficiency in Narrow-Aisle Warehousing. International Journal of Warehouse & Facility Management, 29(2), 88-104.

2.Chen, L., & Williams, S. (2026). Operator Fatigue and Productivity Analysis of Walkie and Stand-on Stacker Designs in High-Frequency Logistics Environments. Journal of Industrial Engineering & Human Factors, 43(1), 55-72.

3.Thompson, R., & Davis, M. (2025). Space Utilization and Maneuverability Trade-offs in Electric Pallet Stacker Selection for Dense Storage. Journal of Logistics Engineering, 42(3), 112-128.

4.Becker, T., & Müller, H. (2024). AC Drive Motor Performance and Duty Cycle Optimization for Walkie and Stand-on Electric Stackers. European Journal of Material Handling & Automation, 21(2), 77-93.
