Reach trucks and very narrow aisle (VNA) trucks are both specialized material handling equipment designed for efficient warehouse operations. The main difference lies in their operational capabilities and space requirements. Reach trucks are versatile machines that can operate in aisles as narrow as 2.5 meters, extending their forks to access pallets at various heights. VNA trucks, on the other hand, are designed for even narrower aisles, typically 1.5 meters or less, and can operate in both man-up and man-down configurations. While reach trucks offer flexibility for various warehouse layouts, VNA trucks maximize storage density in high-bay warehouses, allowing for taller racking systems and more efficient use of vertical space.

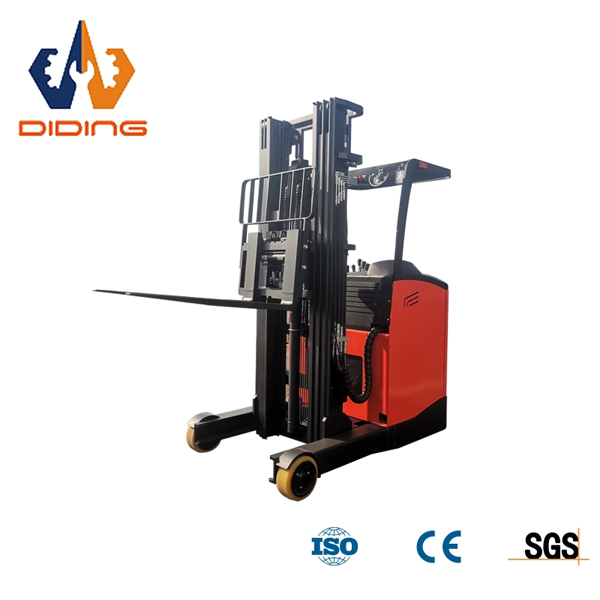

![reach truck high level]( "reach truck high level")
Understanding Reach Trucks: Features and Applications
Design and Functionality of Reach Trucks

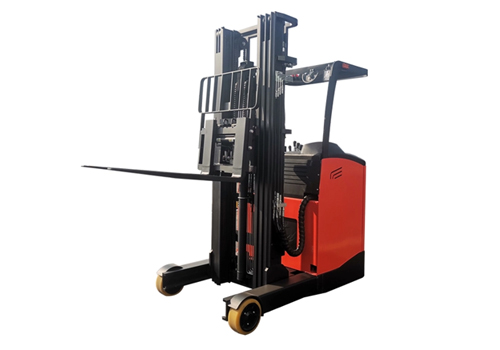

Reach trucks are characterized by their distinctive design, featuring a pantograph mechanism that allows the forks to extend forward and retract. This unique configuration enables operators to access pallets stored at various depths within racking systems. The mast of a reach truck is typically positioned to the side of the operator's cabin, providing excellent visibility and maneuverability.
These trucks are equipped with stabilizing outriggers, which distribute the load weight and enhance stability during lifting operations. The operator's compartment is ergonomically designed, often with controls integrated into the armrest for comfortable and precise operation throughout extended shifts.
Operational Advantages of Reach Trucks
One of the key advantages of reach trucks is their versatility. They can handle a wide range of pallet sizes and weights, making them suitable for various industries and applications. The ability to extend the forks allows for double-deep racking, effectively increasing storage capacity without sacrificing aisle width.
Reach trucks excel in environments where flexibility is crucial. They can easily transition between narrow aisle operations and open floor work, adapting to changing warehouse layouts and operational needs. This adaptability makes reach trucks an excellent choice for businesses with diverse storage requirements or those anticipating future growth and layout changes.
Ideal Environments for Reach Truck Deployment
Reach trucks are particularly well-suited for warehouses with medium to high racking heights, typically up to 10 meters. They perform optimally in facilities with aisle widths between 2.5 to 3.5 meters, striking a balance between storage density and maneuverability.
Industries such as retail distribution centers, manufacturing facilities, and third-party logistics providers often benefit from the versatility of reach trucks. These machines are especially valuable in operations that require frequent stock rotation, order picking, and efficient pallet handling at various heights.
VNA Trucks: Maximizing Vertical Space in Warehouses
Innovative Design of VNA Trucks
Very Narrow Aisle (VNA) trucks represent the pinnacle of space-efficient material handling equipment. These specialized machines are engineered to operate in aisles as narrow as 1.5 meters or less, dramatically increasing warehouse storage density. VNA trucks come in two primary configurations: man-up and man-down models.
Man-up VNA trucks feature an elevating operator cabin that rises with the forks, allowing for precise handling of goods at extreme heights. This design provides operators with an unobstructed view of the load and storage locations, enhancing accuracy and safety. Man-down models, while keeping the operator at ground level, utilize advanced camera systems and sensors to facilitate accurate high-level picking and placing.
Operational Capabilities and Efficiency
VNA trucks are built for speed and precision in high-bay warehouses. They can reach heights of up to 17 meters or more, making them ideal for maximizing vertical storage space. These trucks often incorporate advanced technologies such as wire guidance or rail guidance systems, ensuring precise movement within the narrow aisles and minimizing the risk of collisions or damage to racking.
The efficiency of VNA trucks is further enhanced by their ability to perform both horizontal and vertical movements simultaneously. This feature, known as tri-lateral operation, allows for rapid traversing between picking locations, significantly reducing cycle times and improving overall warehouse productivity.
Optimal Warehouse Scenarios for VNA Implementation
VNA trucks are best suited for high-density storage environments where maximizing space utilization is paramount. They excel in warehouses with high ceilings, allowing businesses to take full advantage of vertical space. Industries such as e-commerce fulfillment centers, cold storage facilities, and high-volume distribution hubs often benefit from VNA systems.
Implementing VNA trucks requires careful planning and often necessitates modifications to warehouse layout and infrastructure. However, for operations dealing with a large number of SKUs or requiring high-density storage solutions, the investment in VNA technology can lead to substantial improvements in storage capacity and operational efficiency.
Comparing Reach Trucks and VNA Trucks: Making the Right Choice
Space Utilization and Aisle Width Requirements
When comparing reach trucks and VNA trucks, one of the most significant factors to consider is the impact on warehouse space utilization. Reach trucks typically require aisles of 2.5 to 3.5 meters wide, which allows for a good balance between storage density and operational flexibility. This width accommodates safe maneuvering and efficient pallet handling while still permitting a substantial increase in storage capacity compared to traditional counterbalance forklifts.
VNA trucks, on the other hand, push the boundaries of space efficiency. Operating in aisles as narrow as 1.5 meters or less, these machines can dramatically increase the number of pallet positions within a given floor space. The narrow aisle configuration can potentially increase storage density by up to 50% compared to reach truck systems, making VNA an attractive option for operations where maximizing storage capacity is critical.
Operational Flexibility and Adaptability
Reach trucks offer superior flexibility in terms of operational versatility. Their design allows them to perform effectively in both narrow aisle configurations and more open areas of the warehouse. This adaptability makes reach trucks an excellent choice for facilities with varying aisle widths or those that require trucks to transition between different operational zones.
VNA trucks, while highly efficient in their designated narrow aisles, are generally limited to these specific areas. The specialized nature of VNA equipment often means that additional material handling vehicles are required for tasks outside the narrow aisle zones, such as loading and unloading trucks or moving pallets in receiving and staging areas.
Cost Considerations and Return on Investment
The initial investment for VNA systems is typically higher than that for reach truck implementations. VNA trucks are more specialized and often incorporate advanced technologies, which contributes to their higher cost. Additionally, the infrastructure requirements for VNA systems, such as precision-engineered flooring and guidance systems, can add significantly to the overall implementation expense.
Reach trucks, being more versatile and requiring less specialized infrastructure, generally represent a lower initial investment. They can be an excellent choice for businesses looking to improve storage efficiency without committing to a complete warehouse redesign or those with budget constraints.
However, the return on investment (ROI) calculation should consider long-term operational efficiency and storage capacity gains. For high-volume operations or those severely constrained by space limitations, the higher storage density achieved with VNA systems can lead to substantial long-term cost savings and operational improvements that justify the initial investment.
Conclusion
The choice between reach trucks and VNA trucks ultimately depends on your specific warehouse requirements, operational goals, and budget constraints. Reach trucks offer versatility and adaptability, making them suitable for a wide range of warehouse operations. They provide a balanced solution for businesses seeking to improve storage efficiency without major infrastructure changes. VNA trucks, while more specialized, offer unparalleled space utilization and are ideal for high-density, high-bay storage environments. By carefully evaluating your current and future needs, you can make an informed decision that optimizes your warehouse operations and drives long-term efficiency.
