We're professional 2 ton pallet stacker manufacturers and suppliers in China, to buy or wholesale ride on pallet stacker from our factory. For quotation or if you have any questions, contact us now for customized stand on pallet stacker and price.

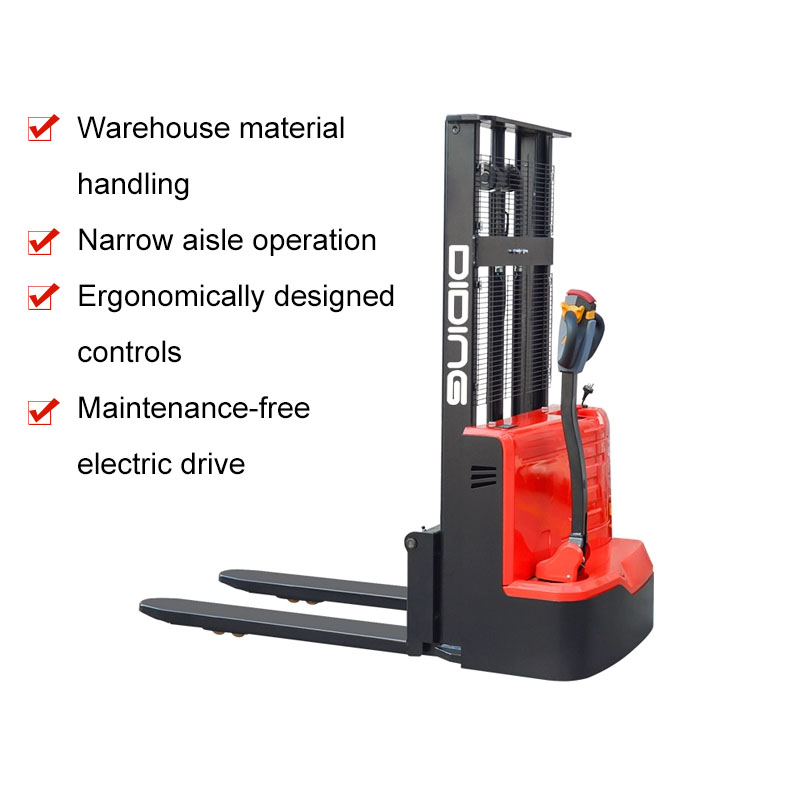

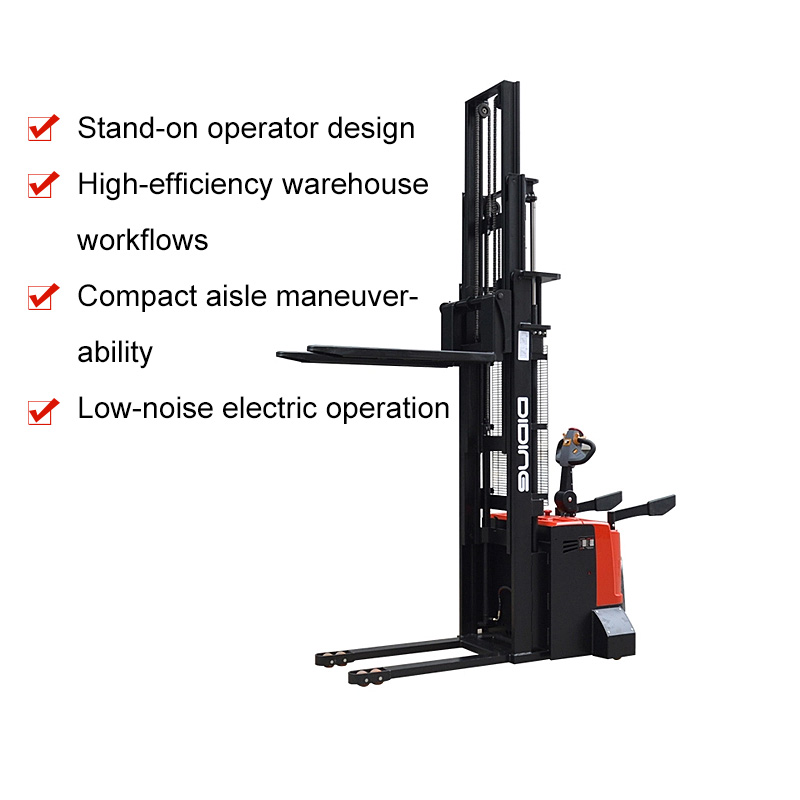

2 ton pallet stacker is a flagship stand-on electric pallet stacker, with a large load capacity and high lifting height. It is equipped with a foldable stand-on pedal, providing smooth operation and an excellent driving experience. It is highly efficient and suitable for warehouse and workshop operations.
Technical parameter of 2 ton pallet stacker
| Specification |
| Characteristics |
| Manufacturer |
| DiDing |
| Model |

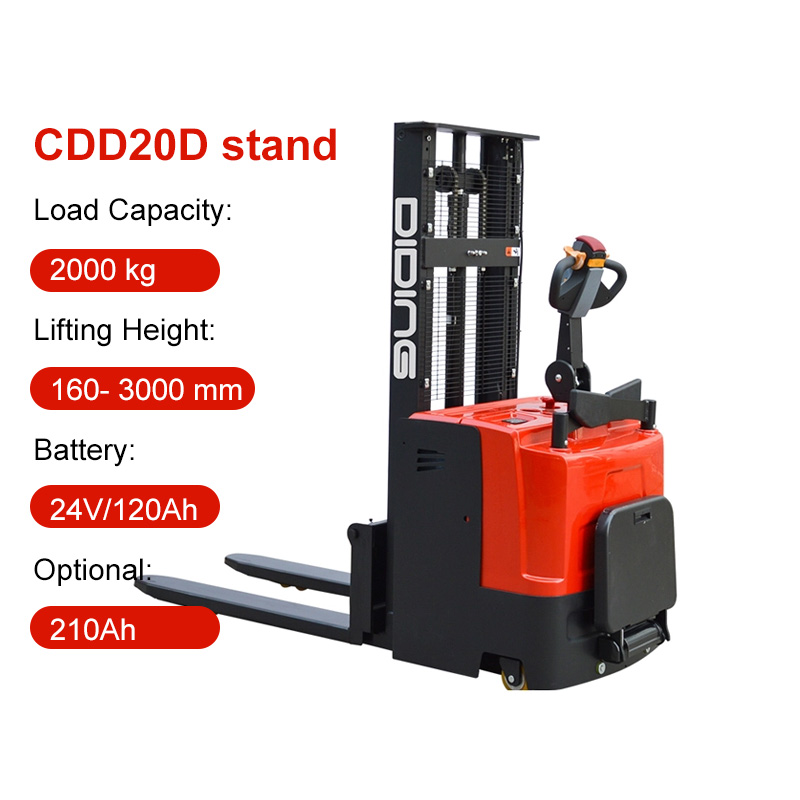

| CDD15D | CDD20D |
| Operation |
| Standed Pallet Stacker |
| Rated traction weight | Q（kg） | 1500 | 2000 |
| Mast type |
| Singel mast | 2-stage | Singel mast | 2-stage |
| Lift | h3（mm） | 1600 | 2000/2500/3000/3500 | 1600 | 2000/2500/3000/3500 |
| Capacity at highest height | kg | 1500 | 1500/1400/1100/800 | 2000 | 2000/1900/1500/1100 |
| Service weight with battery | kg | 630 | 690/720/745/770 | 705 | 750/775/800/825 |
| Load centre | c（mm） | 500 |
| Axle centre to fork face | x（mm） | 764 |
| Wheel base | y（mm） | 1457 |
| Controller |
| LVM24S20（QEXPAND） |
| wheel |
| Wheels type |
| Polyurethane |
| Driving wheel size | ∅×w | φ250×80 |
| Bearing wheel size | ∅×w | φ80×60 |
| Additional wheels(dimensions) | ∅×w | φ115×55 |
| Wheels,number front/rear(x=driven) |
| 1x，2/4 |
| Dimensions |
| Height of mast,lowered | h1（mm） | 2080 | 1580/1830/1980/2330 | 2080 | 1580/1830/1980/2330 |
| Height of mast,extended | h4（mm） | 2080 | 2568/3068/3483/4068 | 2080 | 2568/3068/3483/4068 |
| Fork Height,Lowered | h13（mm） | 88/86 |
| Overall length | L1（mm） | 2125 |
| Length to fork face | L2（mm） | 975 |
| Overall width | b1/b2（mm） | 850 |
| Fork dimensions | s/e/L（mm） | 55/165/1150 |
| Width of forks | b5（mm） | 550/685 |
| Min.Ground clearance | m2（mm） | 30 |
| Aisle width with pallet 1000×1200 along forks | Ast（mm） | 2608 |
| Aisle width with pallet 800×1200 along forks | Ast（mm） | 2536 |
| Min.Turning radius | Wa（mm） | 1744 |
| Performance |
| Travel spees,with/without load | （km/h） | 5.5/5.8 |
| Lifting speed,with/without load | (mm/s) | 100/155 | 75/125 |
| Lowering speed,with/without load | (mm/s) | 100/110 | 95/100 |
| Max.gradeability laden/unladen | (mm/s) | 5/8 |
| Service brake | （%） | Electromagnetic brake |
| Drive and Battery |
| Drive motor,output S2 60 min. | （kW） | 1.5 |
| Lift motor rating at S3 15% | （kW) | 2.2 |
| Battery according to DIN 43531/35/36 A，B，C |
| no |
| Battery voltage/rated capacity | （V/Ah） | 24/120 |
| Battery weight (±5%) | （kg） | 35×2 |
| Others |
| Noise level at operator 'sear | （dB（A）） | 69 |
| Steering type |
| Mechanical steering |
Product details of 2 ton pallet stacker
![]()
2 ton pallet stacker manufacturer

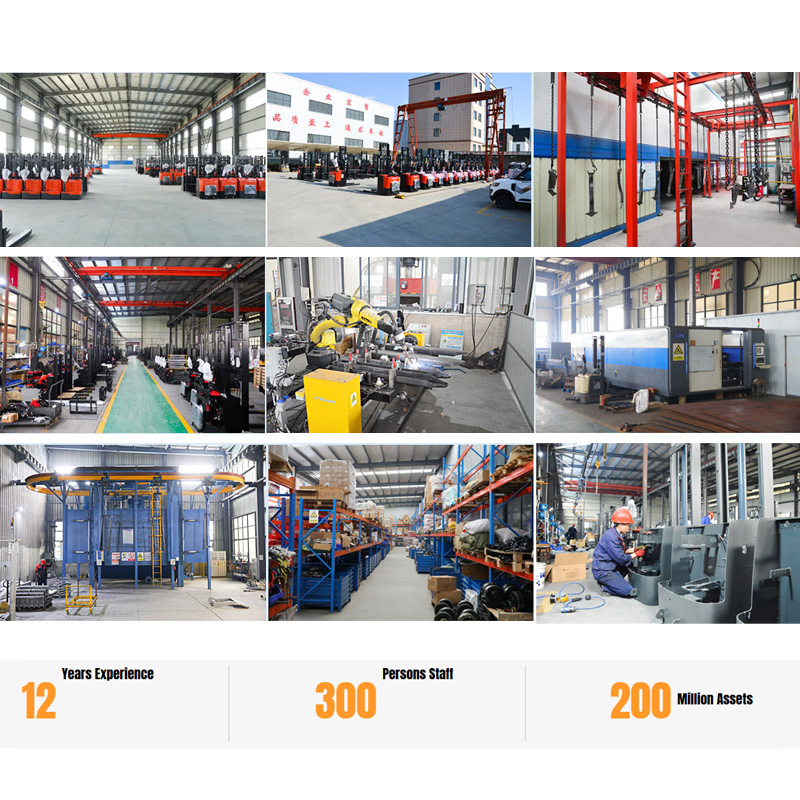

Diding Lift focuses on providing high-quality 2 ton pallet stacker and excellent service since 2015. We are a professional 2 ton pallet stacker manufacturer and factory of 65,000 M2 which mainly produce Electric Pallet Truck, Electric Stacker, Reach Truck products for around 12 years’ experience. Diding provides you with rideable electric pallet jack wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
![exhibition site]( "exhibition site")
![exhibition site]( "exhibition site")
![exhibition site]( "exhibition site")
![delivery site]( "delivery site")
![delivery site]( "delivery site")
![delivery site]( "delivery site")
Where to buy 2 ton pallet stacker?
If you have any questions about 2 ton pallet stacker, ride on pallet stacker, stand on pallet stacker,electric stacker 2 ton, please don't hesitate to send email to sales@didinglift.com at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of Electric Pallet Truck, Electric Stacker, Reach Truck... Welcome you to visit our factory!
