We're professional walkie reach stacker manufacturers and suppliers in China, to buy or wholesale walkie stacker with reach from our factory. For quotation or if you have any questions, contact us now for customized walkie reach stacker forklift and price.
![]()
Removable high-strength stamped tail cover
The tailgate can be removed for easy maintenance.
![]()
Integrated control panel
Integrated with battery display, emergency stop switch and password lock.
![]()
Large Capacity Toolbox
Store data and on-board tools for easy access at any time.
![]()
500mm forward travel distance
Easy travel through narrow aisles, enabling flexible and efficient cargo stacking while significantly increasing warehouse space utilization.
![]()
Integrated quick release battery box
Battery replacement is fast and easy.
![]()
Technical parameter of walkie reach stacker
| Specification |
| Characteristics |
| Manufacturer |
| DiDing |
| Model |
| CQDW13 |
| Operation |
| Pedestrian propelled |
| Rated traction weight | Q（kg） | 1300 |
| Mast type |
| Singel mast | 2-stage |
| Lift | h3（mm） | 1600 | 2000/2500/3000/3500 |
| Capacity at highest height | kg | / |
| Service weight with battery | kg | / | / |
| Load centre | c（mm） | 500 |
| Axle centre to fork face | x（mm） | 125 |
| Wheel base | y（mm） | 1465 |
| Controller |
| KTZ48C15Z0UC |
| Wheels |
| Wheels type |
| Polyurethane |
| Driving wheel size | ∅×w | φ250×80 |
| Bearing wheel size | ∅×w | φ210×85 |
| Wheels,number front/rear(x=driven) |
| 1x，0/2 |
| Dimensions |
| Height of mast,lowered | h1（mm） | 2065 | 1565/1815/2065（1965）/2315 |
| Height of mast,extended | h4（mm） | 2065 | 2545/3045/3545（3400）/4045 |
| Fork Height,Lowered | h13（mm） | ≤65 |
| Overall length | L1（mm） | 2513 |
| Length to fork face | L2（mm） | 1593 |
| Overall width | b1/b2（mm） | 950 |
| Fork dimensions | s/e/L（mm） | 40/100/1070 |
| Width of forks | b5（mm） | 210-685 |
| Min.Ground clearance | m2（mm） | 60 |
| Aisle width with pallet 1000×1200 along forks | Ast（mm） | 2855 |
| Aisle width with pallet 800×1200 along forks | Ast（mm） | 2805 |
| Min.Turning radius | Wa（mm） | 1675 |
| move base | J（mm） | 500 |
| Performance |
| Travel spees,with/without load | （km/h） | / |
| Lifting speed,with/without load | (mm/s) | 100/155 |
| Lowering speed,with/without load | (mm/s) | 100/110 |
| Max.gradeability laden/unladen | (mm/s) | / |
| Service brake | （%） | Electromagnetic brake |
| Drive and Battery |
| Drive motor,output S2 60 min. | （kW） | 1.2 |
| Lift motor rating at S3 15% | （kW) | 2.2 |
| Battery according to DIN 43531/35/36 A，B，C |
| no |
| Battery voltage/rated capacity | （V/Ah） | 48/92 |
| Battery weight (±5%) | （kg） | 32.5×4 |
| Others |
| Noise level at operator 'sear | （dB（A）） | 69 |
| Steering type |
| mechanic steering |

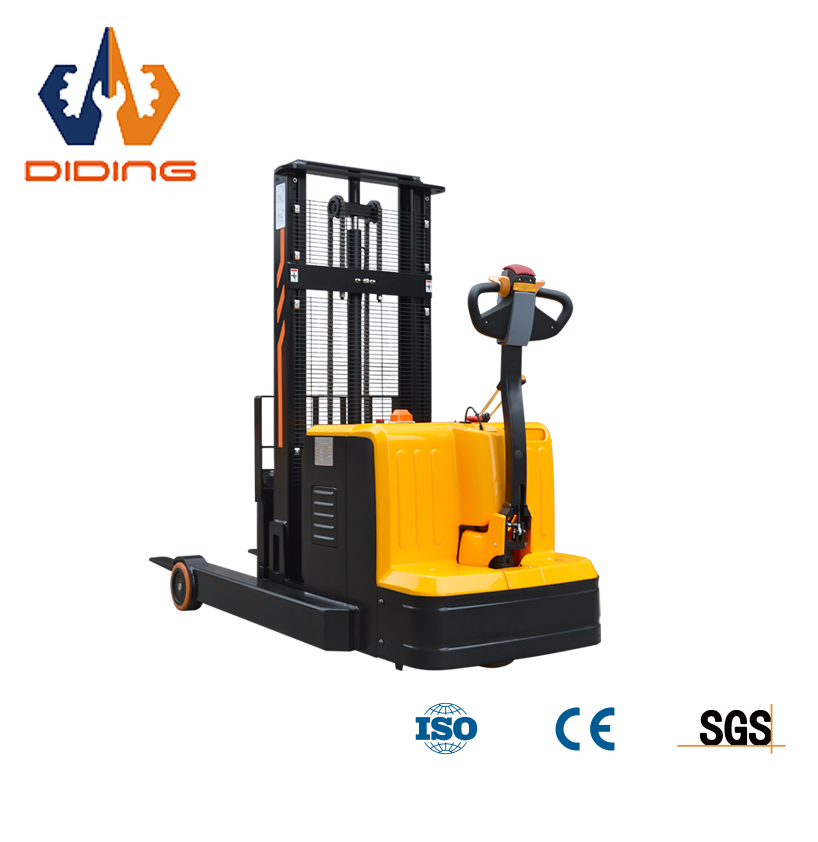

Product details of walkie reach stacker
![]()
Walkie reach stacker manufacturer
Diding Lift focuses on providing high-quality walkie reach stacker and excellent service since 2015. We are a professional walkie reach stacker manufacturer and factory of 65,000 M2 which mainly produce Electric Pallet Truck, Electric Stacker, Reach Truck products for around 12 years’ experience. Diding provides you with rideable electric pallet jack wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
![exhibition site]( "exhibition site")
![exhibition site]( "exhibition site")
![exhibition site]( "exhibition site")
![delivery site]( "delivery site")
![delivery site]( "delivery site")
![delivery site]( "delivery site")
Where to buy walkie reach stacker?
If you have any questions about walkie reach stacker, walkie stacker with reach, walkie reach stacker forklift, please don't hesitate to send email to sales@didinglift.com at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of Electric Pallet Truck, Electric Stacker, Reach Truck... Welcome you to visit our factory!
