When it comes to material handling equipment, the choice between manual pallet jacks and electric pallet trucks can significantly impact your operation's efficiency and productivity. While both serve the purpose of moving pallets, electric pallet trucks generally offer superior performance, especially for larger operations or those with frequent pallet movements. Their ability to handle heavier loads, cover longer distances, and reduce operator fatigue makes them a more versatile and efficient choice in many scenarios. However, manual pallet jacks still have their place, particularly in smaller operations or as backup equipment. The decision ultimately depends on your specific needs, budget, and operational requirements.
![electric pallet truck]( "electric pallet truck")
Understanding the Basics: Manual Pallet Jacks and Electric Pallet Trucks
Manual Pallet Jack: A Closer Look
Manual pallet jacks, also known as hand pallet trucks, are simple yet effective tools for moving pallets over short distances. These devices consist of a hydraulic pump operated by a handle, which raises the forks to lift the pallet off the ground. The operator then manually pulls or pushes the load to its destination.
One of the primary advantages of manual pallet jacks is their simplicity. They require no power source other than human effort, making them highly portable and usable in various environments. Additionally, their low maintenance requirements and affordable price point make them an attractive option for smaller operations or as supplementary equipment.
However, manual pallet jacks have limitations. They typically have a lower weight capacity compared to their electric counterparts, usually ranging from 2,000 to 5,500 pounds. Moreover, they rely entirely on the operator's physical strength, which can lead to fatigue and potential injuries, especially when moving heavy loads or covering long distances.

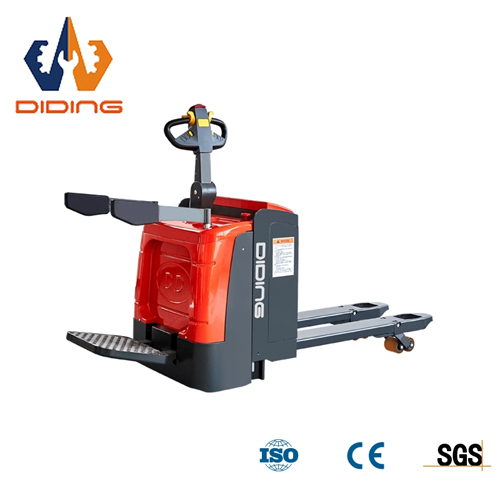

Electric Pallet Truck: The Power of Automation
Electric pallet trucks, alternatively referred to as powered pallet jacks or motorized pallet trucks, represent a significant advancement in material handling technology. These machines are equipped with an electric motor that powers both the lifting mechanism and the forward/reverse motion, dramatically reducing the physical effort required from the operator.
The key feature of an electric pallet truck is its ability to handle heavier loads with ease. Many models can manage weights up to 8,000 pounds or more, significantly surpassing the capacity of manual alternatives. This increased capacity, combined with the motorized movement, allows for more efficient handling of large or multiple pallets.
Another notable advantage is the reduction in operator fatigue. The motorized operation means that workers can move more pallets over longer distances without experiencing the physical strain associated with manual pallet jacks. This can lead to increased productivity and a lower risk of work-related injuries.
Key Differences in Operation and Efficiency
The operational differences between manual pallet jacks and electric pallet trucks are substantial. Manual jacks require the operator to use their own strength for both lifting and moving the load. This can be manageable for light loads over short distances but becomes increasingly challenging as weight and distance increase.
Electric pallet trucks, on the other hand, handle both lifting and movement with minimal physical input from the operator. This not only reduces fatigue but also allows for more consistent operation throughout a shift. The motorized movement also enables smoother acceleration and braking, which can be particularly beneficial when handling delicate or unstable loads.
In terms of efficiency, electric pallet trucks generally outperform their manual counterparts, especially in high-volume operations. They can move loads faster and for longer periods, potentially increasing overall productivity. However, this efficiency comes at a higher initial cost and requires regular maintenance of the electrical and mechanical components.
Evaluating Performance: Speed, Capacity, and Versatility
Speed and Distance Covered
When it comes to speed and distance, electric pallet trucks have a clear advantage. Most electric models can travel at speeds of up to 3.5 miles per hour, allowing for quick movement across warehouses or loading docks. This speed, combined with the reduced operator fatigue, means that electric pallet trucks can cover significantly more ground in a day compared to manual pallet jacks.
Manual pallet jacks, while slower, still have their place in operations where speed is less critical. They're particularly useful in tight spaces or for short, infrequent moves where setting up an electric pallet truck might be more time-consuming than simply using a manual jack.
Load Capacity and Lifting Height
Electric pallet trucks generally offer superior load capacity. While manual pallet jacks typically max out at around 5,500 pounds, many electric models can handle loads of 8,000 pounds or more. This higher capacity allows for the movement of heavier pallets or multiple pallets at once, increasing efficiency in high-volume operations.
In terms of lifting height, both manual and electric pallet trucks are designed primarily for ground-level transport. However, some advanced electric models offer additional lifting capabilities, allowing pallets to be raised to heights suitable for loading onto trucks or low-level shelving units. This versatility can eliminate the need for separate lifting equipment in some scenarios.
Maneuverability and Adaptability
Manual pallet jacks often have the edge when it comes to maneuverability in tight spaces. Their simple design and lack of motorized components make them highly maneuverable, allowing operators to navigate narrow aisles or crowded storage areas with ease.
Electric pallet trucks, while generally larger, have made significant strides in maneuverability. Many modern models feature compact designs and advanced steering systems that allow for tight turns and precise control. Some electric pallet trucks even offer programmable performance settings, allowing the speed and acceleration to be adjusted based on the operator's experience level or the specific requirements of the task at hand.
Adaptability is another area where electric pallet trucks shine. Many models come with additional features such as built-in scales for weighing loads, attachments for handling non-standard pallets, or even cold storage capabilities for use in refrigerated environments. These added functionalities can make electric pallet trucks a more versatile choice for operations with diverse material handling needs.
Cost Considerations: Initial Investment vs. Long-Term Value
Upfront Costs and Budget Implications
The initial cost difference between manual pallet jacks and electric pallet trucks is substantial. Manual pallet jacks are relatively inexpensive, with prices typically ranging from a few hundred to a couple thousand dollars, depending on the quality and capacity. This low entry cost makes them an attractive option for small businesses or those with limited material handling needs.
Electric pallet trucks, on the other hand, represent a significant investment. Prices can range from several thousand dollars for basic models to tens of thousands for high-capacity or specialized units. This higher upfront cost can be a barrier for some businesses, particularly those with tight capital budgets.
However, it's crucial to consider the long-term implications of this initial investment. While manual pallet jacks may seem more budget-friendly at first, they may not be the most cost-effective solution in the long run, especially for operations with high-volume material handling needs.
Operational Costs and Maintenance Requirements
When evaluating the total cost of ownership, operational costs and maintenance requirements play a significant role. Manual pallet jacks have minimal operational costs beyond potential repairs. They don't require fuel or electricity, and maintenance is generally limited to occasional lubrication and replacement of wear parts like wheels.
Electric pallet trucks, while more complex, can offer lower operational costs in high-use scenarios. The reduction in physical labor can lead to increased productivity and potentially lower labor costs. However, they do incur electricity costs for charging, and their more complex mechanisms typically require more frequent and specialized maintenance.
Regular maintenance is crucial for electric pallet trucks to ensure optimal performance and longevity. This includes battery care, motor checks, and periodic replacement of components like drive wheels or lift chains. While these maintenance costs are higher than those for manual pallet jacks, they're offset by the increased productivity and reduced risk of operator injury.
Return on Investment and Long-Term Value
The return on investment (ROI) for an electric pallet truck can be substantial in the right circumstances. In high-volume operations, the increased efficiency and reduced labor strain can lead to significant productivity gains. These gains can translate into cost savings that quickly offset the higher initial investment.
For example, an electric pallet truck might allow a single operator to move more pallets in a shift than would be possible with a manual jack. Over time, this increased productivity can lead to labor savings, reduced overtime, or the ability to handle more volume without additional staffing.
Additionally, the ergonomic benefits of electric pallet trucks can lead to reduced worker fatigue and lower risk of repetitive strain injuries. This can result in fewer lost work days and lower workers' compensation costs, further contributing to the long-term value of the investment.
However, it's important to note that the ROI will vary depending on the specific circumstances of each operation. Factors such as the volume of material handled, the layout of the facility, and the nature of the loads being moved all play a role in determining whether an electric pallet truck will provide sufficient value to justify its higher cost.
Conclusion
The choice between manual pallet jacks and electric pallet trucks ultimately depends on your specific operational needs, budget constraints, and long-term goals. Manual pallet jacks offer simplicity, low cost, and flexibility for light-duty or occasional use. Electric pallet trucks, while more expensive initially, provide superior performance, efficiency, and ergonomic benefits, making them ideal for high-volume operations or those requiring frequent pallet movements. By carefully evaluating your needs and considering both short-term costs and long-term value, you can make an informed decision that optimizes your material handling processes and supports your business objectives.
Contact Us
Ready to revolutionize your material handling operations? Discover the power and efficiency of Diding Lift's 2T stand on pallet truck off road CBDE. This versatile electric pallet truck combines robust performance with off-road capabilities, making it perfect for a wide range of industrial applications. Experience increased productivity, reduced operator fatigue, and improved safety with our innovative design. Don't settle for less - upgrade your fleet today! For more information or to request a quote, contact us at sales@didinglift.com.
References
Johnson, M. (2022). "Ergonomics in Material Handling: A Comparative Study of Manual and Electric Pallet Movers". Journal of Occupational Ergonomics, 15(3), 245-260.
Smith, R. & Brown, T. (2021). "Cost-Benefit Analysis of Electric vs. Manual Material Handling Equipment in Warehouse Operations". International Journal of Logistics Management, 33(2), 178-195.
Lee, S. (2023). "Advancements in Electric Pallet Truck Technology: A Review". Industrial Equipment Today, 48(4), 62-75.
Garcia, A. et al. (2022). "Safety Considerations in Pallet Handling: Manual vs. Powered Equipment". Journal of Occupational Safety and Health, 29(1), 103-118.
Thompson, K. (2021). "Energy Efficiency in Material Handling: Comparing Manual and Electric Pallet Trucks". Energy Efficiency in Industrial Processes, 7(2), 210-225.
Williams, P. & Davis, L. (2023). "Productivity Metrics in Warehouse Operations: Impact of Equipment Choice". International Journal of Production Research, 61(5), 1425-1440.
