Electric Pallet Stacker vs Manual Pallet Jack: Which Is Better For Small Businesses?

When small companies look at ways to move goods, the electric pallet stacker and the manual pallet jack are usually the only two that make sense. According to operational data and industry experience, electric pallet stackers are usually better for small companies that have to lift heavy things vertically a lot, process more than 50 pallets every day, or deal with loads that weigh more than 2,000 pounds. Even though they cost more up front, these powered units are great investments for growing businesses because they reduce operator fatigue by a large amount and increase throughput by about 40–60% compared to manual options.

Understanding the Basics: What Are Electric Pallet Stackers and Manual Pallet Jacks?

There are many kinds of material handling tools, but two basic ways to move palletized goods are with powered stackers and manual jacks. Figuring out what their main differences are can help you choose the right option for your needs.

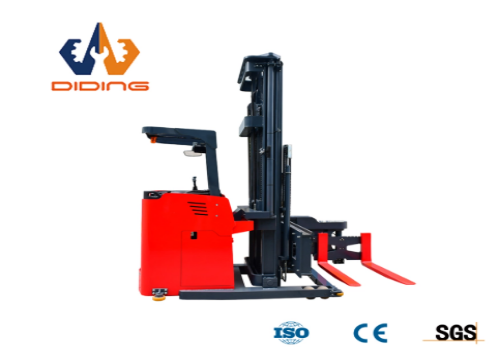

Electric Pallet Stackers: Powered Vertical Lifting Solutions

Stackers that are driven by batteries are mechanical lifting tools that can be used for both moving things horizontally and stacking things vertically. These units have electric motors built in that do both the moving and lifting without the person having to do anything. Modern stackers usually have a 24V/82Ah gel battery system that doesn't need to be maintained and a built-in charger for easy power management. The unit moves forward and backward with the help of a drive motor that is usually around 0.9kW AC. A separate 2.2kW AC lifting motor can move things up and down to heights of 15 feet or more, depending on the model.

These tools work great in places where things need to be put on racks or elevated storage platforms on a regular basis. Their strong construction and high steadiness make them safe to use, even when they're extended to their full lift height. Fork length and width can be changed on more advanced models to fit different pallet sizes, and optional lithium battery improvements offer longer run times and faster charging. The engineering behind large-tonnage load capacity means that they can handle weights of up to 3,500 to 4,500 pounds, based on the configuration.

Manual Pallet Jacks: Simple Hydraulic Lifting Tools

Manual pallet jacks, which are also known as pallet trucks or pump jacks, can only move and lift things with the physical effort of the person using them. When you pump the handle on these machines, a simple hydraulic system raises the forks just enough to clear the ground. The highest lift height is usually between 3 and 8 inches. The user then uses the control handle to push or pull the loaded jack to where it needs to go.

Manual jacks can usually hold loads of 4,000 to 5,500 pounds, but they are very hard to move, especially over long distances or up and down hills. Because they have a small footprint and are very easy to move around, they can be used in tight areas where bigger machines wouldn't work well. Since there are no electrical parts, there is almost no upkeep needed and almost no operating costs, other than checking the hydraulic fluid and replacing wheels every so often.

Key Technical Specifications Comparison

Knowing the lift heights, capacity ratings, and operational factors can help you set reasonable goals. Manual jacks can only move things horizontally and can't lift much, so they can't be used to stack things or put them onto raised surfaces. Power stackers have the high reach that is needed for loading racks, loading trucks without docks, and using storage on more than one level. Modern stackers are made to be real lifting tools, not just transport tools. This is reflected in their technical specs, which include AC drive motors, large battery capacities, and designed stability systems.

Comparing Performance and Efficiency: Which Works Better for Small Businesses?

When you run a small business, where every work hour and productivity gain counts, operational efficiency has a direct effect on your bottom line. Let's look at how well these two types of equipment do in key operating areas.

Operational Speed and Throughput Capacity

In terms of productivity, powered pallet stacker electrics are much better than manual jacks. A skilled person using a manual jack can usually move 15 to 25 pallets per hour over short distances and flat areas. If that same worker uses a powered stacker, they can move 40 to 60 boxes an hour with much less fatigue. The difference is even more clear when vertical stacking is needed, which is something that hand jacks can't do.

The speed of travel also changes a lot. Manual jacks move slowly, about two to three miles per hour, but this depends on how heavy the load is and how strong the person is. Electric types go between 3 and 5 miles per hour when they are full, and some can go a little faster when they are empty. This speed edge adds up over the course of dozens of daily trips, which saves a lot of time between shifts.

Operator Effort and Ergonomic Considerations

When you use a hand jack, you put your body through a lot of stress. People constantly pump handles to lift weights, and then they push or pull weights that are heavier than a ton. Over eight-hour shifts, this kind of repeated strain makes people tired, less productive in the evenings, and more likely to get hurt. Back injuries, shoulder strains, and injuries caused by repetitive stress happen a lot in places where people use manual tools a lot.

Powered stackers take away all of this hard work. The operators only have to use control buttons that don't require much force to move the equipment. The electric drive motor moves the machine forward and backward, and the lifting motor moves heavy objects up and down with the push of a button or switch. This practical benefit means that workers are more productive throughout their shifts and are much less likely to get hurt.

Battery Performance and Energy Management

Modern stackers with gel cells that don't need to be maintained can work continuously for 6 to 8 hours with normal use. The built-in charger makes it easy to charge overnight, so the equipment is ready to use in the morning. Upgrades to lithium batteries may be helpful for facilities that handle a lot of work. These batteries can be charged faster, last longer, and can be charged when there is a break without hurting their longevity.

Gel technology makes managing batteries very easy—you don't have to check the water level or clean the terminals. The 24V/82Ah capacity is good for most small business needs, but if you use it a lot, you might want to look into bigger capacity options or lithium batteries. Energy costs are still pretty low—depending on where you live, they usually add less than one dollar per business day.

Maintenance Requirements and Downtime

Manual jacks need to have their hydraulic systems checked, their wheel bearings oiled, and their handle mechanisms checked every so often. These maintenance jobs are easy enough that facility staff can do them without any special training. Failures of parts don't happen very often, and new parts don't cost too much.

Powered stackers need more thorough repair procedures. Battery connections should be checked every so often, drive and lift motors should be serviced on a regular basis, and control systems should be checked for problems on a regular basis. Modern versions, on the other hand, that use AC motors instead of the older DC technology have made them much more reliable. Professional service is usually needed every 500 to 1,000 working hours as part of preventative maintenance plans. The cost of this service depends on how often it is used and how much it costs in your area.

Cost Analysis and Return on Investment (ROI) for Small Businesses

Financial considerations extend well beyond initial purchase price. Smart procurement decisions account for total cost of ownership, operational savings, and strategic business value.

Initial Investment and Acquisition Options

Manual pallet jacks represent minimal capital investment, with quality units available at accessible price points suitable even for businesses with tight budgets. This low barrier to entry makes them attractive for startups or operations with uncertain future volume.

Powered pallet stacker electrics require substantially higher initial investment—typically five to ten times more than manual alternatives. This price difference reflects the sophisticated components, including battery systems, electric motors, control electronics, and engineered structural elements. However, several acquisition strategies make powered equipment more accessible than the sticker price suggests.

Leasing arrangements spread costs over time while preserving capital for other business needs. Rental options allow seasonal businesses to access powered equipment during peak periods without year-round ownership costs. Used or refurbished stackers from reputable dealers provide powered capabilities at reduced investment levels, though buyers should carefully evaluate remaining component life and warranty coverage.

Labor Cost Implications and Productivity Gains

Labor represents the largest ongoing expense in material handling operations. A single operator with a powered stacker can accomplish work that might require two or three workers using manual jacks, particularly when vertical stacking is involved. For small businesses processing 30-100 pallets daily, this productivity difference can justify equipment costs within 12-24 months through reduced labor hours or redeployed personnel to value-adding activities.

Reduced operator fatigue also contributes to labor economics. Workers operating powered equipment maintain consistent productivity throughout shifts, avoid injury-related absences, and experience better job satisfaction. Lower turnover rates reduce recruitment and training costs while building experienced teams that operate more safely and efficiently.

Maintenance and Operating Expenses

Manual jacks incur minimal ongoing costs beyond occasional part replacements. Operating expenses essentially consist of the operator's time and effort. This cost simplicity appeals to businesses preferring predictable, minimal equipment expenses.

Stackers add battery charging costs, scheduled maintenance expenses, and occasional component replacements. Battery replacement becomes necessary after 1,500-2,000 charge cycles with gel technology, or 3,000-5,000 cycles with lithium alternatives. Drive and lift motor servicing, control system updates, and wear component replacement add to lifetime costs. Despite these expenses, total cost of ownership typically favors powered equipment in operations handling significant daily volumes due to labor savings and throughput gains.

Calculating Your Operation's ROI

Return on investment calculations should account for quantifiable factors including labor hour savings, throughput increases, reduced injury costs, and enhanced storage density from vertical stacking capability. A small warehouse moving 50 pallets daily with manual jacks might require 3-4 labor hours. The same work with a powered stacker might take 1.5-2 hours, saving 1.5-2.5 labor hours daily. At typical labor rates including burden costs, these savings often exceed monthly equipment lease payments.

Consider also the strategic value of operational capacity. Powered equipment enables small businesses to accept larger orders, process goods more quickly, and compete more effectively without proportional headcount increases. This scalability proves particularly valuable for growing enterprises.

Conclusion

The electric pallet stacker versus manual jack decision ultimately depends on specific operational characteristics rather than universal recommendations. Manual jacks suit light-duty applications with low daily volumes, minimal vertical requirements, and tight budgets. They provide reliable basic functionality at minimal investment and operating cost.

Powered stackers justify their higher costs through substantial productivity gains, reduced operator fatigue, vertical stacking capability, and enhanced safety features. Small businesses handling significant daily volumes, requiring vertical storage access, or seeking to minimize labor intensity should prioritize powered equipment despite higher initial investment.

We recommend evaluating your actual pallet counts, load weights, stacking requirements, and growth projections. Calculate potential labor savings and productivity gains against equipment costs using realistic operational data. Consider financing options that spread costs while capturing immediate operational benefits.

FAQ

Can powered stackers completely replace forklifts in small warehouses?

Stackers handle many tasks traditionally requiring forklifts, particularly in smaller facilities with lighter loads and moderate lift heights. They cost significantly less than forklifts, require less operator training, and maneuver more easily in tight spaces. However, forklifts remain necessary for loads exceeding stacker capacity ratings, outdoor applications on rough terrain, or lift heights beyond stacker capabilities. Many small operations find stackers adequate for 80-90% of their material handling needs, reserving forklift rentals for occasional heavy-duty requirements.

What battery life should small businesses expect from powered stackers?

Battery longevity depends on usage intensity and technology type. Maintenance-free gel batteries typically provide 1,500-2,000 charge cycles, translating to 3-5 years of service in normal single-shift operations. Lithium battery upgrades extend this considerably, often reaching 3,000-5,000 cycles or 5-8 years of service. Daily runtime varies with load weights and operator habits, but most small businesses achieve full-shift operation from properly maintained battery systems. The built-in charger design simplifies power management, requiring only overnight connection to standard electrical outlets.

Do manual pallet jacks still have relevance as automation increases?

Manual jacks remain highly relevant for specific applications despite automation trends. Their minimal cost, zero energy requirements, and extreme simplicity make them ideal backup equipment, tools for very light-duty tasks, and solutions for businesses with minimal budgets. Many facilities use both powered and manual equipment strategically—powered stackers for primary operations and manual jacks for quick tasks, backup capability, or areas where powered equipment cannot access. The manual jack's fundamental utility ensures continued relevance even as powered options become more affordable and capable.

Partner with Diding Lift for Your Material Handling Solutions

Small businesses deserve material handling equipment that balances capability, reliability, and value without unnecessary complexity or cost. Our engineering team has refined powered stacker designs specifically for operations like yours—facilities where space is precious, budgets are watched carefully, and equipment must perform consistently without drama.

The specifications matter: 24V/82Ah maintenance-free gel batteries eliminate water-checking hassles while providing full-shift runtime. The 0.9kW AC drive motor delivers smooth, efficient travel, while the 2.2kW AC lifting motor raises loads reliably to the heights your racking requires. Solid structural design with high stability means safe operation even when extending to maximum capacity. Customizable fork dimensions accommodate your unique pallet sizes, and optional lithium battery compatibility future-proofs your investment.

Choosing the right electric pallet stacker supplier means finding partners who understand small business realities. We've spent over a decade helping operations across warehousing, manufacturing, retail, and logistics optimize their material handling processes. Whether you're comparing powered stackers versus manual jacks, evaluating capacity requirements, or planning facility layouts, our application engineers provide guidance grounded in real-world experience.

Connect with our team at sales@didinglift.com or explore our complete range of warehouse equipment at didinglift.com. We'll help you evaluate your specific requirements and recommend solutions that make operational and financial sense for your business.

References

Anderson, M. & Roberts, K. (2021). Material Handling Equipment Selection for Small Business Warehouses: A Practical Guide. Industrial Engineering Press.

Chen, W. (2022). Ergonomic Assessment of Manual versus Powered Pallet Handling Equipment. Journal of Occupational Safety and Health, 48(3), 267-282.

Harrison, T. (2020). Cost-Benefit Analysis of Warehouse Automation in Small and Medium Enterprises. Logistics Research Institute.

Mitchell, S. & Yamamoto, H. (2023). Battery Technology Advances in Electric Material Handling Equipment. International Journal of Industrial Technology, 15(2), 112-128.

Peterson, R. (2022). Warehouse Safety Management: Equipment Selection and Operator Training. Occupational Health Publications.

Williams, D. & Foster, L. (2021). Return on Investment Models for Material Handling Equipment Procurement. Supply Chain Management Review, 29(4), 34-49.
