What Is the Maximum Load Capacity of Electric Pallet Trucks?

Views: 0 Author: Site Editor Publish Time: 2026-09-09 Origin: Site

From “Rated Load” to “Actual Capacity” – A Comprehensive Look at Load Capacity

In warehousing and logistics operations, load capacity is the most critical consideration when selecting an Electric Pallet Truck. The rated load determines whether the equipment can safely and efficiently handle handling tasks, while actual load capacity is also affected by factors such as load distribution, surface conditions, and operating methods.

This article provides a comprehensive analysis of electric pallet truck load capacity, covering industry load classifications, CBDE’s rated load and performance, and load-related safety standards – helping you make precise equipment selection decisions.

1. Electric Pallet Truck Load Classifications

Electric pallet trucks cover a wide range of rated loads, from light-duty models under 1 ton to heavy-duty models exceeding 8 tons. Based on industry product data and standards, common load classes include:

Load Class	Typical Applications	Representative Models / Sources
1.0 - 1.6 tons	Light warehousing, retail replenishment	Noblelift PT16L (1.6 tons)
1.5 - 2.0 tons	Standard warehousing, manufacturing	Noblelift PWB-200 (2.0 tons) ; JAC CBD20 (2.0 tons)
2.5 - 3.0 tons	Heavy materials, bulk cargo	Noblelift PT25L (2.5 tons) ; JAC CBD30 (3.0 tons) ; Noblelift PWB-300 (3.0 tons)
3.5 tons and above	Extra-heavy loads, special industrial applications	Some models up to 3.5 tons; heavy-duty up to 8 tons

2 tons (2000kg) is the most mainstream load class for electric pallet trucks, widely used in manufacturing, retail distribution, third-party logistics, and other scenarios. According to GB/T 27543-2023, pedestrian-propelled lifting table trucks with rated loads up to 1000kg have specific technical specifications , while 2-ton and higher loads mainly apply to general-purpose electric pallet trucks.

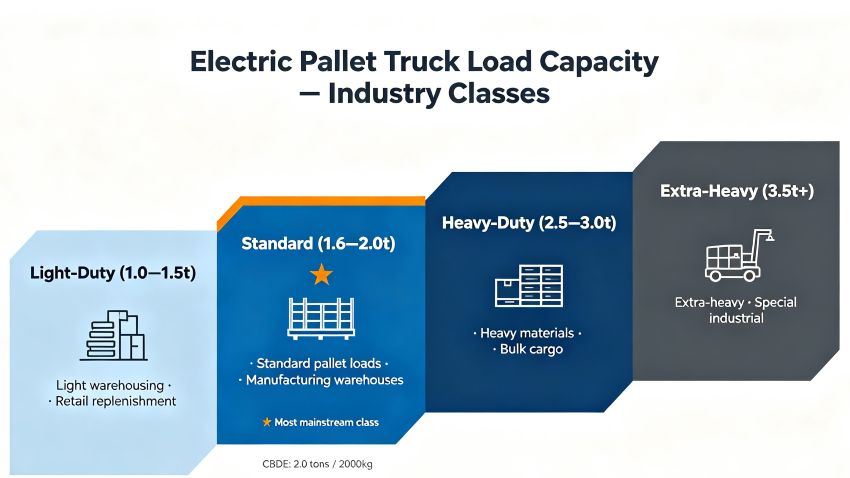

Electric Pallet Truck Load Capacity – Industry Classes.jpg

2. CBDE‘s Rated Load and Performance

Take Diding Lift’s 2T Stand On Pallet Truck Off Road CBDE as an example. Its rated load is 2 tons (2000kg) , placing it in the mainstream load class of electric pallet trucks .

Under full 2-ton load, the CBDE delivers the following key performance:

Performance Parameter	CBDE Performance Under 2-Ton Load	Industry Reference
Rated Load	2000kg	Industry mainstream load class
Loaded Travel Speed	5.0 - 6.5 km/h (up to 6.0 km/h)	Leading level in its class
Loaded Gradeability	8%-10%	Superior to standard models (typically 6%)
Unloaded Gradeability	16%-20%	Flexible maneuvering on slopes
Turning Radius	~1.5 meters	Excellent narrow-aisle maneuverability
Overall Width	≤750mm	Compact design, suitable for narrow aisles
Self Weight (with lithium battery)	~620kg	Lightweight design, reduces floor load

The CBDE‘s solid structural design with high stability has been specifically optimized for 2-ton heavy loads , ensuring long-term stable operation under full-load conditions. Its off-road tires and reinforced chassis maintain stable load performance even on outdoor uneven surfaces.

3. Load-Related Safety Standards

When using electric pallet trucks, load-related safety standards should not be overlooked:

3.1 Rated Load and Safety Margin

Never exceed the rated load – even “occasional overloading” can permanently damage the hydraulic system and frame
Reserve a 20% margin – recommended that the heaviest load does not exceed 80% of the rated load
Distribute loads evenly – center the load on the forks with balanced weight on both sides

3.2 Overload Testing Standards

According to T/CASME industry standards, heavy-duty electric platform trucks must undergo 1.33 times rated load overload testing, with no permanent deformation or damage permitted after the test . This standard reflects industry requirements for structural safety and serves as a reference for high-quality equipment design and manufacturing.

4. How to Choose the Right Load Class?

Your Requirement	Recommended Load Class	Recommended Model
Light parts, retail replenishment	1.0 - 1.5 tons	Walkie electric pallet truck
Standard pallet loads, manufacturing warehouses	1.6 - 2.0 tons	Stand-on (e.g., CBDE)
Heavy materials, bulk cargo	2.5 - 3.0 tons	Heavy-duty electric pallet truck
Extra-heavy loads, special industrial applications	3.5 tons and above	Custom heavy-duty models

5. Summary

Electric pallet trucks cover a wide load range from 1 ton to over 8 tons, with 2 tons being the most mainstream class. The CBDE, with its 2-ton (2000kg) rated load, combined with 6.0 km/h loaded speed, 8%-10% loaded gradeability, 1.5m turning radius, and only ~620kg self weight, achieves a good balance of capacity, efficiency, and maneuverability in the 2-ton class.

Key Question	Answer
What is the maximum load of an electric pallet truck?	Industry covers 1-8+ tons; 2 tons is the most mainstream
What is the CBDE‘s rated load?	2 tons (2000kg)
Performance under full load?	Speed 6.0 km/h, gradeability 8%-10%, turning radius 1.5m
Selection advice	Reserve 20% margin based on actual load weight

For more load configuration details or customization solutions, please contact Diding Lift. This professional manufacturer has over 12 years of industry experience and a 65,000 m² factory. All products comply with European EN standards and ISO, CE, and EU certifications .

Need load assessment, product selection, or equipment pricing? Send an email to sales@didinglift.com – our professional team will provide one-on-one support within 24 hours.

References

Noblelift. (2026). PWB-150/200/300 Walkie Electric Pallet Truck – Product Specifications. Noblelift Intelligent Equipment Co., Ltd.
JAC. (2026). CBD20-30 Electric Pallet Truck – Technical Data Sheet. JAC Heavy Industry.
Toyota Material Handling. (2025). Electric Pallet Truck Load Capacity Guide – Industry Standards and Selection Criteria. Toyota Material Handling.
EP Equipment. (2025). 2-Ton Electric Pallet Truck Technical Specifications – EP Series. EP Equipment.
Occupational Safety and Health Administration (OSHA). (2026). Powered Industrial Trucks – Load Capacity and Safety Standards (29 CFR 1910.178). OSHA.gov.
