Monthly Maintenance Tasks for Electric Pallet Stackers

In the maintenance system of an Electric Pallet Stacker, monthly maintenance is the critical link between "daily checks" and "annual overhaul." Daily checks address "can it be used today," while annual maintenance addresses "long-term reliability." Monthly maintenance exists to intercept faults at the budding stage. Taking Diding Lift's 2T Electric Walkie Pallet Stacker CDDA as an example, its Bucher hydraulic system, AC motors, and 24V/82Ah maintenance-free gel battery determine the focus areas of monthly maintenance. This guide breaks down monthly maintenance tasks by system.

1. The Role of Monthly Maintenance: Why It Cannot Be Skipped

1.1 Division of Labor with Daily and Annual Maintenance

Industry maintenance standards typically divide maintenance into daily, weekly, monthly, and annual tiers. The unique value of monthly maintenance is that it covers internal conditions that daily checks cannot reach (such as motor insulation, hydraulic oil quality, and bearing lubrication), while being more frequent than annual maintenance—catching early signals before component failure.

1.2 Cumulative Operating Hours Trigger

Monthly maintenance should not be mechanically calculated by "calendar month" but should consider actual equipment operating hours. Industry practice recommends using cumulative 200 operating hours as the trigger point, with heavy-duty high-frequency use shortened to every 20 days. For the CDDA20, if operating 8 hours daily, approximately 25 working days reach the 200-hour threshold.

1.3 Special Requirements for First Monthly Maintenance on New Machines

Newly commissioned stackers should undergo an additional inspection after 50-100 operating hours: confirm whether wheel nuts are loose, whether hydraulic fittings are leaking, and replace the hydraulic filter promptly. This milestone often coincides with the first monthly maintenance and should not be overlooked.

2. Legs and Travel Wheel Assemblies: Exclusive Focus of Straddle Design

As a straddle stacker, the CDDA20's legs and rollers bear high-frequency alternating loads, making them the highest-priority area in monthly maintenance.

2.1 Leg Crossbeam and Roller Bearings

Monthly maintenance should check the leg crossbeam for hidden deformation and disassemble/clean dust from roller bearings. If bearings are not cleaned monthly, one-sided roller lock-up can easily occur, inducing pallet tilt and even cargo fall risk. After applying lubricating grease, manually rotate the rollers to confirm smoothness; bearings with jamming or excessive play should be replaced promptly.

2.2 Travel Wheel and Load Wheel Wear Assessment

Check wheel surfaces for obvious grooves, cracks, or excessive play. If one side wears noticeably faster than the other, investigate whether the leg is deformed to avoid center-of-gravity shift during operation. Metal shavings and gravel embedded in tire surfaces should be removed promptly to prevent puncturing the wheel body.

3. Hydraulic System: Oil Quality, Filter, and Leak Inspection

The hydraulic system is a high-failure area for stackers, and monthly maintenance must complete three core checks.

3.1 Hydraulic Oil Condition Assessment

Check oil color and transparency. If the oil darkens, becomes cloudy, or emulsifies, replace the hydraulic oil and seals promptly to prevent persistent seepage. Even if appearance is normal, record oil level trends—a continuous drop often indicates slow leakage.

3.2 Filter and Fitting Inspection

Monthly maintenance should check the hydraulic oil filter condition. If the filter is clogged, pump suction resistance increases, manifesting as slow lifting. Also inspect hose fittings and cylinder surfaces for oil seepage, tightening or replacing seals as needed.

3.3 Lifting Action Test

Raise forks to maximum height with no load; observe whether lifting is smooth, with no abnormal noise or jamming. If forks slowly descend on their own under load, the cylinder piston seal may be leaking internally—disassemble and replace seals.

4. Motor and Electrical System: Insulation, Dust, and Wiring

4.1 AC Motor Insulation Resistance Test

The CDDA20 is equipped with AC motors, which require no carbon brush replacement, but insulation resistance still requires monthly testing. Use a 250V megohmmeter to measure cold insulation resistance; the value should be greater than 0.5MΩ. Below this value requires drying treatment, otherwise leakage or short circuit risk exists.

4.2 Motor Heat Dissipation and Wiring Inspection

Clean dust from the motor housing to maintain good heat dissipation. Check terminal tightness to prevent loosening and oxidation from vibration. For the interior of the electrical control box, use a blower to remove dust; humid environments require additional moisture protection.

4.3 Safety Device Function Verification

Monthly maintenance should systematically test the electromagnetic brake (release tiller, confirm auto-lock), emergency reverse button (press, confirm equipment stops forward motion and reverses), as well as horn and warning light functions. These devices may only receive visual confirmation in daily checks; monthly checks should trigger actual functions.

5. Battery Monthly Tasks: Gel vs Lithium Differences

5.1 Gel Battery: Terminals and Equalizing Charge

The CDDA20 comes standard with a 24V/82Ah maintenance-free gel battery. Monthly maintenance should check positive and negative terminals for white or green corrosion, cleaning and applying petroleum jelly as needed. Also confirm that the quarterly equalizing charge is performed on schedule to prevent individual cell voltage imbalance from dragging down overall pack performance.

5.2 Lithium Battery: Cell Voltage and Terminal Oxidation

If the lithium battery upgrade is selected, monthly maintenance should verify cell voltage balance, clean terminal oxidation, and check wiring insulation for damage. Lithium batteries should avoid overnight float charging; disconnect once fully charged to extend cell life.

6. Monthly Maintenance Records and Abnormality Handling

6.1 Record Content

After monthly maintenance, complete the maintenance log: execution date, cumulative operating hours, results of each check item, replaced parts (such as filters, grease), abnormalities found and handling methods. The log serves not only internal management but is also a necessary document for safety inspections or warranty claims.

6.2 Abnormality Handling Principles

If the following conditions are found during monthly maintenance, stop use and contact professional repair: brake failure, persistent hydraulic leakage, visible deformation of mast or legs, motor insulation resistance below standard, battery casing swelling. Continuing operation may lead to fault escalation or safety incidents.

7. Conclusion and Action Recommendations

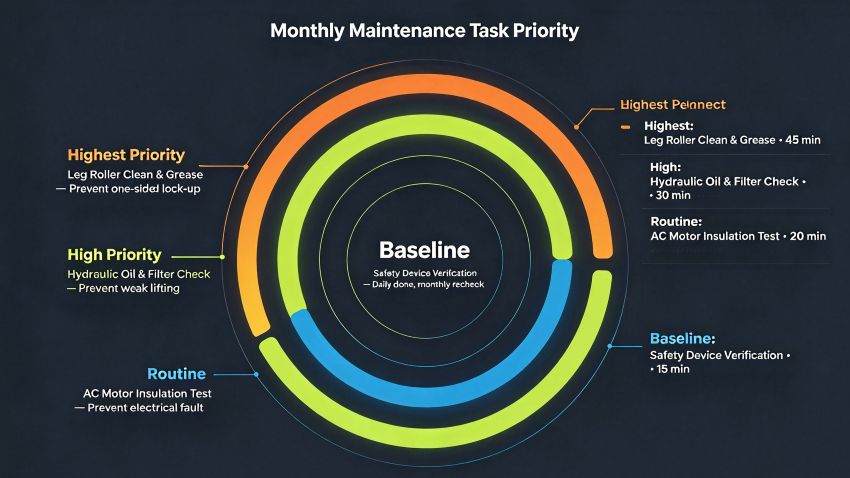

Monthly maintenance of an Electric Pallet Stacker comes down to "intercepting faults at the budding stage." Taking the CDDA20 as an example, monthly tasks should focus on four priorities: leg roller cleaning and lubrication, hydraulic oil quality and filter inspection, AC motor insulation resistance testing, and safety device function verification—with differentiated maintenance by battery type.

Diding Lift has 12 years of experience and a 65,000 m² factory & workshop, with products complying with EN 12895:2015 and EN ISO 3691-1:2015 European standards, certified to ISO 9001:2015 quality management system and CE safety certification, and supports ODM/OEM cooperation & customization. Its 2T Electric Walkie Pallet Stacker CDDA, with its Bucher hydraulic system, AC motors, and maintenance-free gel battery, reduces the complexity and frequency of monthly maintenance.

For a printable monthly maintenance checklist template or detailed CDDA maintenance manual, please send an email to sales@didinglift.com, and our professional team will provide one-on-one support.
