Lithium Battery vs Lead-Acid Battery for Electric Pallet Trucks

From “Good Enough” to “Better,” Recalculating the Cost and Efficiency of an Energy Choice

In electric pallet truck selection, battery type is the decision most easily obscured by “purchase price” yet most consequential for long-term operations. Lead-acid batteries have dominated the market for years with low upfront costs, but their shortcomings—slow charging, short lifespan, and maintenance requirements—become increasingly apparent in multi-shift operations and refined cost management.

Lithium batteries typically cost 2 to 3 times more upfront than lead-acid, but their cycle life is 4 to 5 times longer, they support opportunity charging, and they are maintenance-free. When the numbers are crunched, the long-term economics of lithium are being recognized by more and more enterprises . This article systematically compares the two battery types across four dimensions—lifespan, charging efficiency, maintenance cost, and low-temperature performance—using Diding Lift‘s 2T Stand On Pallet Truck Off Road CBDE as an example to illustrate how lithium upgrade changes the operating logic of an electric pallet truck.

1. Cycle Life: A 4× Gap Determines Replacement Cycles

1.1 The Lifespan Ceiling of Lead-Acid

Lead-acid battery cycle life typically ranges from 400 to 1,500 cycles, significantly affected by depth of discharge in practice. If daily depth of discharge is controlled at 50%, cycle life is approximately 450 to 550 cycles; frequent deep discharge can reduce lifespan to below 300 cycles . At one charge-discharge cycle per day, the practical replacement cycle for lead-acid batteries is typically 1.5 to 3 years.

1.2 The Lifespan Advantage of Lithium

Lithium iron phosphate (LiFePO4) batteries achieve 2,000 to 4,000+ cycles, with some high-quality cells reaching 8,000 cycles under shallow charge/discharge conditions . At one full cycle per day, service life exceeds 8 to 10 years, with no battery replacement required over the equipment’s lifecycle.

Impact on TCO: Lead-acid batteries may require 1 to 2 replacements over 5 years; each replacement cost plus downtime loss adds up. Lithium batteries, despite higher upfront investment, essentially eliminate replacement costs over the full lifecycle.

CBDE Adaptation: Its optional lithium battery upgrade provides a 2,000-cycle lifespan. Combined with its solid structural design with high stability, it maintains stable performance output in long-term high-frequency operations.

2. Charging Efficiency: From “Waiting 8 Hours” to “Topping Up at Lunch”

2.1 Charging Constraints of Lead-Acid

Lead-acid batteries typically require 8 to 12 hours to fully charge and demand “full charge, full discharge”—random or intermittent charging severely damages battery life . This means multi-shift operations must have spare battery packs, adding equipment investment and management costs. Lead-acid batteries also suffer from memory effect and sulfation, with capacity degrading over time under shallow cycling .

2.2 Opportunity Charging Capability of Lithium

Lithium batteries support 1 to 2-hour fast charging and have no memory effect, allowing opportunity charging during breaks, lunch, and shift changes without affecting battery life . A single lithium battery can support 24/7 continuous operations without spare battery packs. TCM data shows its latest-generation lithium battery can fully charge in 2 hours, with one battery supporting three-shift operation .

Operational Impact: Opportunity charging eliminates the “battery swap” step, reducing spare battery procurement costs and battery-swapping labor. For multi-shift warehouses, lithium’s available operating time is significantly higher than lead-acid.

CBDE Adaptation: Its built-in charger design eliminates the need for a dedicated charging room with plug-and-play convenience. Combined with lithium’s fast-charging capability, it can top up during lunch or shift changes, further amplifying the convenience of opportunity charging.

3. Maintenance and Weight: From “Weekly Watering” to “Zero Maintenance”

3.1 The Maintenance Burden of Lead-Acid

Lead-acid batteries require regular water topping (electrolyte level checks), equalizing charges, and terminal cleaning to prevent corrosion. Charging produces hydrogen gas, requiring a separately ventilated charging room . While each maintenance task may not take much time individually, the cumulative labor cost and the risk of battery damage from improper maintenance are part of the hidden costs.

3.2 The Maintenance-Free Nature of Lithium

Lithium batteries are maintenance-free for life—no water topping, no acid corrosion, no hydrogen emissions. They can be charged directly in the warehouse without a dedicated charging room . The BMS monitors voltage, current, and temperature in real time, automatically protecting the battery from overcharge and overdischarge damage .

3.3 Weight Difference and Its Impact on Handling

LiFePO4 batteries have 3 to 4 times the energy density of lead-acid, with approximately 60% weight reduction and 30% volume reduction at equivalent capacity . For electric pallet trucks, a lighter battery means lower vehicle self-weight, reducing floor loading pressure, shortening braking distance, and improving handling flexibility.

CBDE Adaptation: Its lithium version’s self-weight is significantly lower than the lead-acid version, more friendly to multi-floor warehouse slab loading. The combination of solid structural design and lightweight battery optimizes vehicle weight distribution while maintaining 2-ton heavy-load stability.

4. Low-Temperature Performance: The Dividing Line for Cold Storage

4.1 Low-Temperature Degradation of Lead-Acid

At -20°C, lead-acid battery capacity may drop by 30% to 50%, with discharge efficiency below 30% . This means lead-acid electric pallet trucks suffer significant range reduction in cold storage, struggling to meet full-shift operational demands.

4.2 Low-Temperature Adaptability of Lithium

Lithium batteries retain 70% to 90% capacity at -20°C, with some high-quality cells operating stably across a wide temperature range of -30°C to 58°C . For cold storage and cold chain logistics scenarios, lithium’s low-temperature advantage is decisive.

CBDE Adaptation: Its optional lithium battery upgrade version features a smart BMS with low-temperature protection and preheating functions, maintaining stable discharge performance in -25°C cold storage environments—a necessary configuration for cold chain operations.

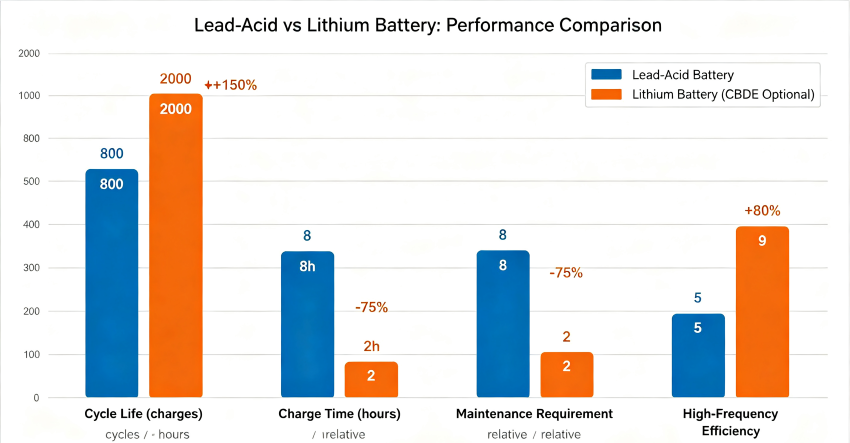

5. Summary: Selection Logic for the Two Battery Types

Selection Logic: For single-shift, low-frequency, budget-sensitive indoor operations, lead-acid remains adequate. But for multi-shift, high-frequency, cold storage, or outdoor operations, lithium’s fast charging, long lifespan, maintenance-free nature, and low-temperature performance make its total lifecycle cost significantly lower than lead-acid.

The CBDE, with its optional lithium battery upgrade as a core configuration, combined with built-in charger and solid structural design, provides a technical path for upgrading from lead-acid to lithium in multi-shift, complex working conditions.

For more battery selection advice or product configuration details, please contact Diding Lift. This professional manufacturer has over 12 years of industry experience and a 65,000 m² factory . All products comply with European EN standards and ISO, CE, and EU certifications.

Need battery selection assessment, product configuration, or equipment pricing? Send an email to sales@didinglift.com – our professional team will provide one-on-one support within 24 hours.

References

1. Hawker. (2026). Forklift Lithium Battery | Lead-Acid to Lithium Upgrade | Professional and Reliable. hawker.net.cn.

2. DirectIndustry. (2025). PT20Li - Electric pallet truck by Noblelift. directindustry.com.

3. Cell Reports Physical Science. (2023). Comparison of vital parameters for Lead Acid and Li-Ion batteries. cell.com.

4. Xilin. (2025). How does the selection of industrial batteries affect the battery life and performance of Electric Rider Pallet Truck?. xilin.com.
