Ultimate Guide to Electric Pallet Stacker for Warehouses

In warehouse operations, selecting the right material handling equipment is crucial for determining efficiency, cost, and safety. Electric Pallet Stackers, with their flexibility, cost-effectiveness, and environmental advantages, are becoming the primary equipment for more and more indoor warehouses. This guide provides a comprehensive decision-making reference—from types, selection factors, and core configurations to brand choice.

1. What Is an Electric Pallet Stacker?

An electric pallet stacker is a compact material handling equipment designed for lifting, transporting, and stacking palletized loads. It fills the gap between manual pallet jacks and counterbalance forklifts: compared to manual equipment, it greatly reduces physical labor; compared to large forklifts, it is better suited for operations in narrow aisles and confined spaces. Its core value lies in achieving vertical space utilization and horizontal efficient flow through electric drive.

2. Main Types of Warehouse Electric Pallet Stackers

Based on operation mode, there are two main types, which directly determine the equipment's suitability for your warehouse:

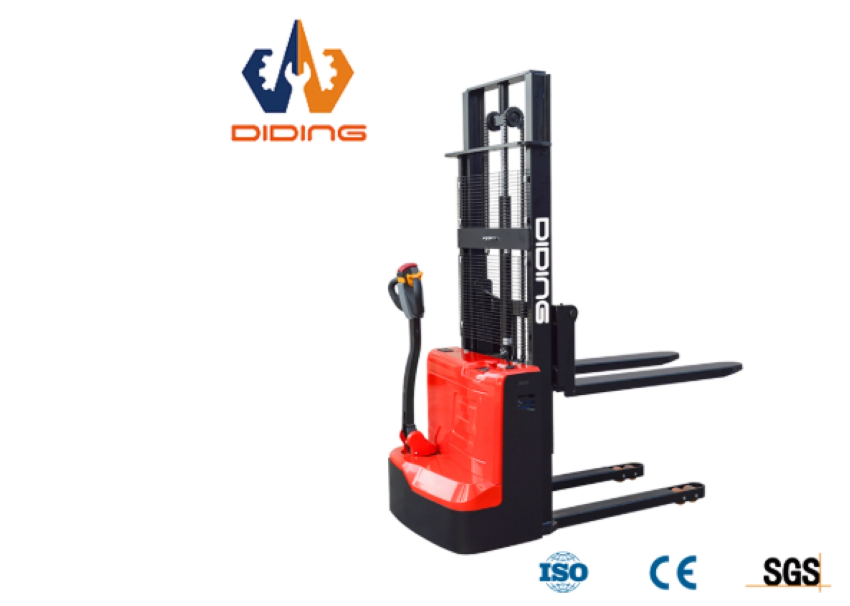

Product-Related Advantage: Taking Diding Lift's 2T Electric Walkie Pallet Stacker CDDA as an example, it is a typical walkie stacker with a minimum turning radius of only 1494mm and a required aisle width of approximately 2300-2400mm. Combined with its solid structural design with high stability and being engineered for large-tonnage load capacity, it offers both flexibility and heavy-load capability in narrow-aisle operations—an efficient solution for space-constrained warehouses. For detailed classification and compliance requirements regarding operation modes, refer to the OSHA Powered Industrial Trucks standards (29 CFR 1910.178).

3. Four Core Selection Factors

3.1 Operating Space and Aisle Width

This is the primary consideration. According to Cat® Lift Trucks experts, unless the stacker is small enough, other advantages become irrelevant. For every 0.5-meter reduction in aisle width, warehouse storage density can increase by approximately 15%-20%. Be sure to measure the narrowest aisle width in your warehouse.

3.2 Load Capacity and Lift Height

Rated Load Capacity: Must cover the weight of your heaviest palletized load. The CDDA offers a 2-ton rated capacity, meeting the vast majority of indoor stacking scenarios. Note: Rated capacity decreases as lift height increases—always consult the load capacity chart.

Lift Height: Choose based on your tallest rack level. The CDDA offers a maximum lift height of 3500mm, suitable for common rack heights.

3.3 Pallet Type

This is the most common selection pitfall.

Single-face pallets (e.g., EUR pallets): Both walkie (straddle) and stand-on stackers are compatible.

Double-face pallets (e.g., US-standard / stringer pallets): Due to wooden deck boards on the bottom, you must use a stand-on (counterbalanced) or wide-leg walkie stacker.

Product-Related Advantage: The CDDA offers customizable fork length & width to flexibly adapt to various non-standard pallets, preventing efficiency losses due to size mismatches.

3.4 Battery and Powertrain

Battery determines runtime and maintenance costs.

Maintenance-free gel battery: No watering required, no acid spill risk, stable and controllable operating costs.

Lithium battery (upgrade option): Supports fast charging and opportunity charging (recharge during breaks), with long cycle life, suitable for high-intensity multi-shift operations.

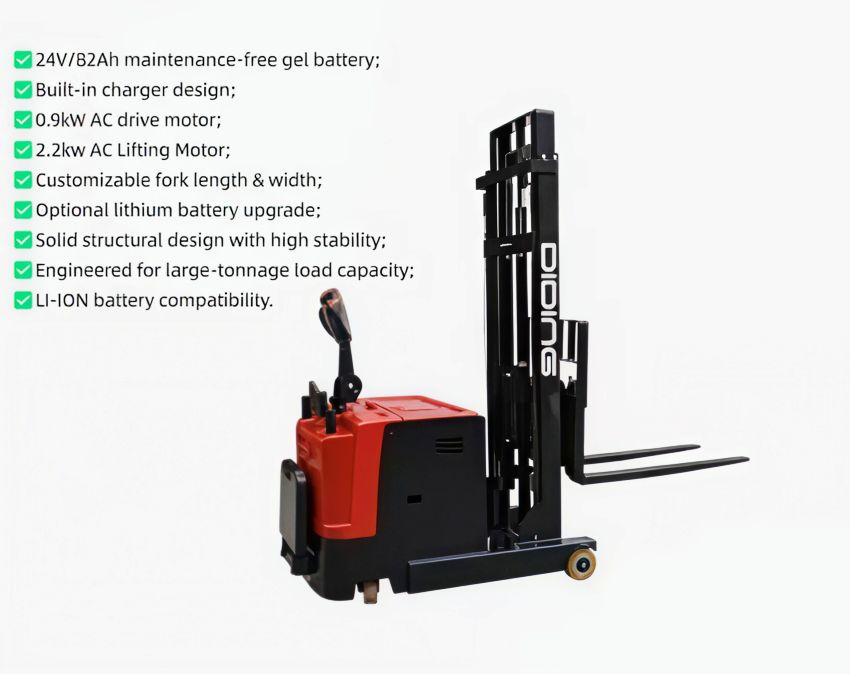

Product-Related Advantage: The CDDA comes standard with a 24V/82Ah maintenance-free gel battery and supports an optional lithium battery upgrade / LI-ION battery compatibility. Its built-in charger design allows for quick recharging during breaks, greatly improving equipment utilization.

4. Power and Energy Efficiency: Sustained Performance in Narrow-Aisle Operations

Operations in narrow aisles involve frequent starts, stops, and turns, placing high demands on the powertrain's responsiveness and energy efficiency. The CDDA is equipped with a 0.9kW AC drive motor and a 2.2kW AC lifting motor, delivering smooth and precise power output. Compared to DC motors, AC technology offers higher efficiency, less maintenance, and is better suited for high-frequency start-stop cycles.

5. Performance Data: Efficiency Comparison in Narrow-Aisle Operations

The following data is based on industry tests and official Diding Lift parameters, demonstrating the CDDA's performance in narrow aisles:

6. Conclusion and Action Recommendations

For indoor warehouses pursuing high-density storage and short-distance efficiency, the walkie electric pallet stacker is a proven ideal choice. With its minimal turning radius, compact body, and efficient AC power system, it achieves efficient and safe stacking operations in confined spaces.

By choosing Diding Lift's 2T Electric Walkie Pallet Stacker CDDA, you gain:

● A 1494mm turning radius specifically optimized for narrow aisles.

● Robust performance with a 2-ton rated load capacity and 3.5-meter lift height.

● Low maintenance costs and high operational efficiency thanks to the maintenance-free gel battery and AC motors.

Diding Lift has 12 years of experience and a 65,000 m² factory & workshop, with products holding Europe EN & ISO, CE, EU Certificates, and supports ODM/OEM cooperation & customization. Its flagship CDDA model integrates many of the core technologies mentioned above, making it a mature choice for narrow-aisle stacking operations.

If you need customized solutions tailored to your warehouse aisle width and load specifications, please send an email to sales@didinglift.com, and our professional team will provide one-on-one support.

References：

1.Rs Mech. (2025). The Ultimate Guide to Electric Stackers: Choose the Right One for Your Needs.

2.Toyota Material Handling Europe. (2023). 3 reasons to consider switching from walkie to rider pallet stacker.

3.Linde Material Handling. (2025). L14 - L16 AS/AS AP.

4.Redway Power. (2025). How Do Electric Pallet Stackers Improve Material Handling Efficiency?

5.Cat® Lift Trucks EAME. How to choose a stacker - an essential part of your warehouse equipment.
