How to Safely Operate an Electric Pallet Truck Step by Step

From “Pre-Start Inspection” to “Safe Shutdown” – Every Step Has a Standard to Follow

Electric pallet trucks are the backbone of modern warehousing and logistics, but improper operation poses serious safety hazards. According to the U.S. Occupational Safety and Health Administration (OSHA), powered industrial truck incidents cause approximately 85 fatalities and 34,900 serious injuries in the U.S. each year, and the vast majority of these accidents are preventable .

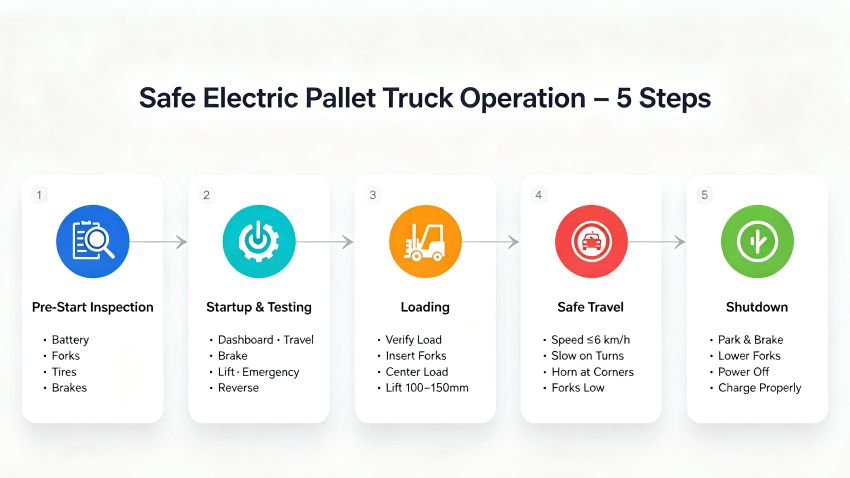

This article provides a step-by-step guide for safely operating an Electric Pallet Truck, covering five key stages: pre-operation inspection, startup and functional testing, loading procedures, safe travel practices, and shutdown and daily maintenance.

1. Pre-Operation Inspection: The “Required Course” Before Starting

Before powering on the machine, a thorough walkaround inspection is essential. Skipping this step is one of the leading causes of on-site incidents .

1.1 Battery and Electrical Check

• Confirm the battery is sufficiently charged (recommended above 20%)

• Inspect battery terminals for corrosion, loose connections, or acid leaks

• Check that the power cable is secure and free from damage

1.2 Mechanical Components Inspection

1.3 Personal Protective Equipment (PPE)

Operators should always wear:

• Steel-toed safety boots

• High-visibility vest

• Gloves (thermal gloves required in cold storage environments)

Note: Never operate in open-toed footwear — foot crush injuries are among the most reported forklift-related injuries globally .

2. Startup and Functional Testing

After completing the physical inspection, follow these steps to safely start the truck:

2.1 Startup Procedure

1. Power on: Pull out the main power switch and turn on the power lock

2. Check the dashboard: Look for any error codes or fault warnings

3. Test travel control: Test both forward and reverse at slow speed in a clear area

4. Test braking: Confirm regenerative or mechanical braking response is immediate

5. Test lift/lower functions: Test with unloaded forks

6. Test emergency reverse button: Confirm auto-stop and reverse when obstacle is detected

Take Diding Lift‘s 2T Stand On Pallet Truck Off Road CBDE as an example. Its emergency reverse button and electromagnetic brake system should be tested daily to confirm normal function – this is a critical safety measure.

⚠️ Safety Warning: If anything feels abnormal — sluggish response, unusual sounds, or vibration — tag the machine out of service and report it immediately .

3. Loading Procedures

Improper loading is a primary cause of tip-overs and dropped loads .

3.1 Verify Rated Load Capacity

• Check the data plate for rated capacity (e.g., CBDE is 2000kg)

• Never exceed the rated load — even “occasional overloading” can permanently damage the hydraulic system and frame

3.2 Fork Insertion Technique

1. Approach straight on – never at an angle, as this risks splitting or collapsing the pallet

2. Lower forks to their lowest travel position (approximately 50-75mm from the ground) before insertion

3. Full insertion – slide forks until the fork heels are flush against the pallet face

4. Center the load – ensure the load is centered on the forks with balanced weight on both sides

3.3 Lift Height Control

• Lift only enough to clear the floor (100-150mm) for travel

• Never travel with raised forks – this significantly increases tip-over risk

3.4 Irregular or Unstable Loads

• Secure with stretch wrap or strapping to prevent shifting or collapse during travel

• Reduce travel speed for top-heavy loads

4. Safe Travel Practices

The travel phase accounts for the majority of near-miss incidents .

4.1 Speed and Clearance Rules

4.2 Turning Operations

• Slow down before turning – avoid sudden turns

• Be aware of turning radius to avoid striking nearby equipment

The CBDE has a turning radius of only 1.5 meters, offering excellent maneuverability in narrow aisles – but slowing down before turns remains essential for safety.

4.3 Slope Operations

• Going uphill: Travel with the load facing uphill to prevent forward tipping

• Going downhill: Keep the load on the uphill side and reduce speed significantly

• Prohibited: Turning or stopping on slopes

• Slopes over 6%: Exercise extreme caution

5. Shutdown and Daily Maintenance

5.1 After Operation

1. Park in designated area, engage parking brake

2. Lower forks to the lowest position

3. Turn off the power switch

4. Wipe down control handle and battery surface to prevent moisture damage

5.2 Charging Precautions

• Charge in a well-ventilated, dry designated area

• Use the dedicated charger – do not mix different models

• Disconnect promptly after full charge – avoid overcharging

The CBDE‘s built-in charger design simplifies charging operations with plug-and-play convenience, effectively reducing charging failures caused by charger mismatch.

Summary: Safe Operation Quick Reference

For more safety operation guidelines or equipment configurations, please contact Diding Lift. This professional manufacturer has over 12 years of industry experience and a 65,000 m² factory . All products comply with European EN standards and ISO, CE, and EU certifications.

Need safety training materials, product selection, or equipment pricing? Send an email to sales@didinglift.com – our professional team will provide one-on-one support within 24 hours.
