Electric Pallet Truck for Retail and Distribution Centers

From “Receiving” to “Restocking” – Equipment Selection Logic for Retail Logistics Scenarios

In retail and distribution center (DC) operations, electric pallet trucks handle the full range of material flow tasks from receiving, cross-docking, and replenishment to order picking and dispatch. Unlike manufacturing warehouses, retail and DC operations are typically characterized by high SKU diversity, rapid turnover, limited aisle space, and concentrated operating hours.

So, what type of Electric Pallet Truck does a retail or distribution center need? This article provides a systematic analysis of electric pallet truck selection for retail and DC scenarios across three dimensions: operational scenario analysis, core configuration requirements, and key selection parameters.

1. Typical Operating Scenarios in Retail and Distribution Centers

The common characteristics of these scenarios are: limited space, fast pace, and high operation frequency – meaning equipment must balance compact size, agile turning, and high operational efficiency.

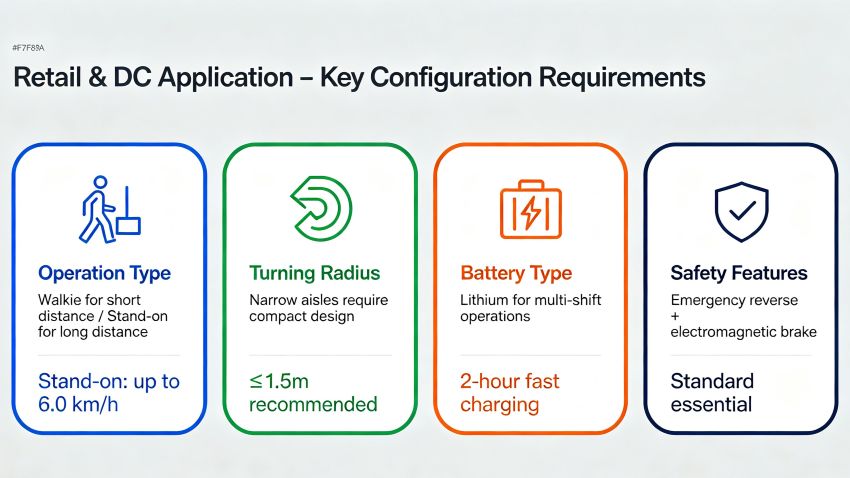

2. Core Configuration Requirements for Retail and DC Scenarios

2.1 Operation Type: Walkie vs. Stand-on

Selection Recommendations:

• Primarily short-distance replenishment and picking → Choose Walkie

• Primarily long-distance transfer and cross-docking → Choose Stand-on

Take Diding Lift‘s 2T Stand On Pallet Truck Off Road CBDE as an example. Its stand-on design enables travel speeds of up to 6.0 km/h and daily handling capacity of 80-120 trips/person – twice that of a walkie pallet truck. In high-frequency cross-docking scenarios, labor cost savings alone can recoup the investment within 6-8 months.

2.2 Compact Size and Turning Radius

Retail warehouses and DCs typically have narrow aisles – especially retail DC picking aisles which are often only 2.0-2.5 meters wide. Turning radius is the core parameter determining whether equipment can operate smoothly in these aisles.

The CBDE has a turning radius of only approximately 1.5 meters, allowing flexible operation in aisles 2.0-2.5 meters wide, increasing warehouse space utilization by more than 20%. Its solid structural design with high stability ensures sufficient structural strength remains intact despite the compact dimensions.

2.3 Battery and Range

Retail and DC operations typically involve single-shift or multi-shift continuous operation. Battery range and charging speed directly affect equipment utilization.

Selection Recommendation: For multi-shift continuous DC operations, lithium battery configuration is recommended. The CBDE supports an optional lithium battery upgrade with 2-hour fast charging and opportunity charging, allowing flexible charging during lunch breaks or shift changes.

2.4 Safety Configurations

In retail and DC working environments with high personnel traffic and narrow aisles, safety features are particularly important.

The CBDE comes standard with an emergency reverse button and electromagnetic brake system – automatically detecting obstacles when reversing and engaging braking when the handle is released – providing dual safety protection for operators.

3. Industry Reference: Mainstream Brand Product Offerings

In 2026, multiple leading manufacturers introduced new products targeting retail and DC applications, reflecting the industry‘s focus on this market segment.

• Clark launched five new electric low-lift pallet truck models at LogiMAT 2026, covering 1500kg and 2000kg load capacities with walkie and stand-on variants. The ELP15 model, with a width of only 550mm and turning radius of 1345mm, is specifically designed for confined spaces in retail and warehousing.

• The CLARK RPE20 stand-on model features a 3.0kW drive motor, reaching unloaded speeds of 10 km/h and loaded speeds of 9.5 km/h, and comes standard with a lithium-ion battery (24V, 230Ah) and 100A fast charging – suitable for multi-shift operations.

These industry developments indicate that compact dimensions, lithium battery configurations, and stand-on options have become the standard configuration direction for electric pallet trucks in retail and DC scenarios.

4. Quick Selection Table

5. Summary

The core requirements for electric pallet trucks in retail and distribution centers can be summarized in three words: Flexibility, Efficiency, Safety. When selecting, focus on the following parameters:

For more detailed selection assessment or customized solutions, please contact Diding Lift. This professional manufacturer has over 12 years of industry experience and a 65,000 m² factory. All products comply with European EN standards and ISO, CE, and EU certifications, with ODM/OEM customization support – providing professional selection support for retail and DC scenarios.

Need selection assessment, product selection, or equipment pricing? Send an email to sales@didinglift.com – our professional team will provide one-on-one support within 24 hours.

References

1. Clark Europe GmbH. (2026). Clark launches new range of electric low-lift pallet trucks. Logistics Matters.

2. Clark Europe GmbH. (2026). Flexible warehouse solutions for maximum efficiency. CLARK Europe GmbH.

3. EP Equipment. (2025). Retail and Distribution Center Pallet Truck Solutions. EP Equipment.

4. Toyota Material Handling. (2025). Electric Pallet Truck Selection for Retail Logistics. Toyota Material Handling.
