We're professional 2 ton pallet jack manufacturers and suppliers in China, to buy or wholesale stand on electric pallet jack from our factory. For quotation or if you have any questions, contact us now for customized ride on electric pallet jack and price.

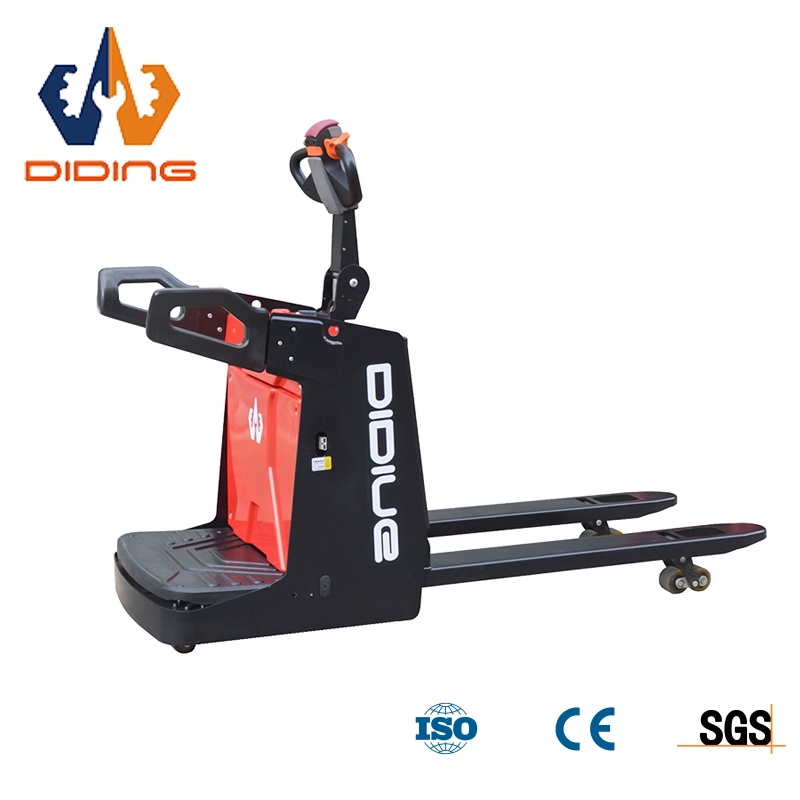

2 ton pallet truck is operated by standing drivers and is mainly used for transporting goods in warehouses and factories. It is equipped with a shock-absorbing pedal and has good maneuverability and flexible steering.
Technical parameter of 2 ton pallet jack
| Specification |
| Characteristics |
| Manufacturer |
| DiDing |
| Model |
| CBD20C |
| Operation |
| Standed |
| Rated traction weight | Q（kg） | 2000 |
| Lift | h3（mm） | 205 |
| Service weight with battery | kg | 320 |
| Load centre | c（mm） | 600 |
| Axle centre to fork face | x（mm） | 971 |
| Wheel base | y（mm） | 1151 |
| Controller |
| 48S09/10（QEXPAND） |
| Wheels |
| Wheels type |
| Polyurethane |
| Driving wheel size | ∅×w | φ210×70 |
| Bearing wheel size | ∅×w | φ80×60 |
| Additional wheels(dimensions) | ∅×w | φ70×40 |
| Wheels,number front/rear(x=driven) |
| 1x，2/4 |
| Dimensions |
| Fork Height,Lowered | h13（mm） | 85 |
| Overall length | L1（mm） | 2033 |
| Length to fork face | L2（mm） | 313 |
| Overall width | b1/b2（mm） | 762 |
| Fork dimensions | s/e/L（mm） | 55/165/1220 |
| Width of forks | b5（mm） | 550/685 |
| Min.Ground clearance | m2（mm） | 30 |
| Aisle width with pallet 1000×1200 along forks | Ast（mm） | 2570 |
| Aisle width with pallet 800×1200 along forks | Ast（mm） | 2481 |
| Min.Turning radius | Wa（mm） | 1820 |
| Performance |
| Travel spees,with/without load | （km/h） | 5/5.5 |
| Lifting speed,with/without load | (mm/s) | 25 |
| Lowering speed,with/without load | (mm/s) | 30 |
| Max.gradeability laden/unladen | (mm/s) | 5/16 |
| Service brake | （%） | Electromagnetic brake |
| Drive and Battery |
| Drive motor,output S2 60 min. | （kW） | 1 |
| Lift motor rating at S3 15% | （kW) | 0.8 |
| Battery according to DIN 43531/35/36 A，B，C |
| no |
| Battery voltage/rated capacity | （V/Ah） | 48/65 |
| Battery weight (±5%) | （kg） | 15×4 |
|
| Noise level at operator 'sear | （dB（A）） | 69 |
| Steering type |
| Electronic steering |
Product details of 2 ton pallet jack
![]()
2 ton pallet jack manufacturer
Diding Lift focuses on providing high-quality 2 ton pallet jack and excellent service since 2015. We are a professional 2 ton pallet jack manufacturer and factory of 65,000 M2 which mainly produce Electric Pallet Truck, Electric Stacker, Reach Truck products for around 12 years’ experience. Diding provides you with rideable 2 ton pallet jack wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
![exhibition site]( "exhibition site")
![exhibition site]( "exhibition site")
![exhibition site]( "exhibition site")
![delivery site]( "delivery site")
![delivery site]( "delivery site")
![delivery site]( "delivery site")
Where to buy 2 ton pallet jack?
If you have any questions about 2 ton pallet jack, stand on electric pallet jack, ride on electric pallet jack, stand up pallet jack, standing pallet jack, please don't hesitate to send email to sales@didinglift.com at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of Electric Pallet Truck, Electric Stacker, Reach Truck... Welcome you to visit our factory!
