Operating an electric pallet truck effectively requires a combination of knowledge, skill, and safety awareness. These versatile material handling devices, also known as powered pallet jacks or electric pallet jacks, are essential in warehouses, distribution centers, and manufacturing facilities. To operate an electric pallet truck, start by familiarizing yourself with the controls, including the throttle, brake, and lift/lower buttons. Next, ensure the forks are fully lowered and aligned with the pallet openings. Gently maneuver the truck into position, insert the forks into the pallet, and raise it slightly off the ground. When moving, use the throttle carefully to control speed, always looking in the direction of travel and being mindful of your surroundings. Remember to lower the load before leaving the truck unattended and always follow proper safety protocols.

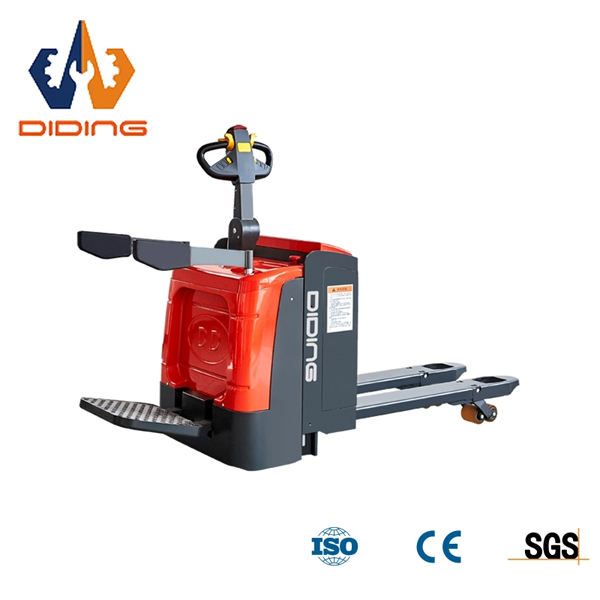

![Pallet Truck]( "Pallet Truck")
Understanding Electric Pallet Truck Components and Controls
Main Components of an Electric Pallet Truck
Electric pallet trucks consist of several key components that work together to facilitate efficient material handling. The main body houses the electric motor, battery, and hydraulic system. The forks, typically made of durable steel, are designed to slide under pallets and lift them off the ground. The control handle, often referred to as the tiller, is the primary interface between the operator and the machine. It houses various controls and acts as the steering mechanism. The wheels, including drive wheels and load wheels, provide mobility and support the truck's weight along with its load.
Control Functions and Their Operations
The control handle of an electric pallet truck is equipped with multiple functions to ensure precise and safe operation. The throttle butterfly controls forward and reverse movement, typically operated by thumb pressure. The brake lever, when squeezed, stops the truck's motion. Lift and lower buttons control the vertical movement of the forks. Some models feature a horn button for alerting nearby workers. Advanced electric pallet trucks may also include a battery charge indicator, hour meter, and emergency reverse switch for enhanced safety and operational efficiency.
Safety Features and Their Importance
Modern electric pallet trucks are equipped with numerous safety features to protect operators and nearby personnel. The automatic brake engages when the control handle is released or moved to a fully vertical or horizontal position, preventing unintended movement. Many models incorporate a belly switch on the control handle, which reverses the truck's direction if pressed, preventing operator entrapment. Overload protection systems prevent lifting loads beyond the truck's rated capacity. Some advanced models even feature pedestrian detection systems and automatic speed reduction in tight spaces, further enhancing workplace safety.
Step-by-Step Guide to Operating an Electric Pallet Truck
Pre-Operation Inspection and Safety Checks
Before operating an electric pallet truck, it's crucial to perform a thorough pre-operation inspection. Start by checking the battery charge level to ensure sufficient power for your tasks. Inspect the forks for any signs of damage or excessive wear. Examine the wheels for proper inflation (if pneumatic) and any debris that might affect smooth operation. Test all controls, including the throttle, brake, horn, and lift/lower functions, to verify they're working correctly. Check for any hydraulic leaks and ensure all safety features, such as the emergency stop button, are functioning as intended. If any issues are detected, report them immediately and refrain from using the equipment until it has been properly serviced.
Proper Positioning and Load Engagement
Correct positioning and load engagement are essential for safe and efficient operation of an electric pallet truck. Approach the pallet slowly, ensuring the forks are fully lowered and aligned with the pallet openings. Position the truck so that the forks can enter the pallet smoothly without forcing or damaging the load. Once in position, slowly drive forward, inserting the forks fully into the pallet. Use the lift function to raise the load just enough to clear the ground - typically about 1-2 inches. Avoid lifting the load higher than necessary, as this can affect stability. Before moving, check that the load is stable and properly centered on the forks to prevent tipping or dropping during transport.
Maneuvering and Transporting Loads
When maneuvering an electric pallet truck with a load, always look in the direction of travel and maintain a clear view of your path. Use the throttle gently to control speed, starting slowly and gradually increasing as needed. When turning, take wide, smooth arcs to maintain load stability. Be extra cautious when operating on inclines - always drive with the load facing uphill. When traveling down inclines, maintain a slow, controlled speed using the brake as necessary. In tight spaces, take advantage of the truck's compact design and tight turning radius, but always be aware of your surroundings and potential pinch points. Remember to keep a safe distance from other vehicles, equipment, and personnel in the work area.
Advanced Techniques and Best Practices
Efficient Load Handling in Various Environments
Adapting your electric pallet truck operation to different environments is key to maximizing efficiency and safety. In narrow aisles, use the truck's compact design to your advantage, but be mindful of clearances on all sides. When working in cold storage areas, be aware that condensation can affect floor conditions - adjust your speed accordingly. In outdoor environments, be cautious of uneven surfaces and weather conditions that might affect traction. For heavy loads, consider using two operators - one to guide the load and another to operate the truck. When handling unusually shaped or unstable loads, use additional securing methods like stretch wrap or straps to prevent shifting during transport.
Battery Management and Charging Procedures
Proper battery management is crucial for maintaining the performance and longevity of your electric pallet truck. Always follow the manufacturer's guidelines for charging procedures. Typically, batteries should be charged when they reach about 20-30% capacity to prevent deep discharge, which can shorten battery life. Ensure the charging area is well-ventilated and free from potential ignition sources. During charging, the battery compartment should remain open to dissipate heat and gases. Regularly check water levels in flooded lead-acid batteries and top up with distilled water as needed. For opportunity charging (short, frequent charges during breaks), ensure your battery and charger are specifically designed for this practice to avoid premature battery degradation.
Troubleshooting Common Issues
While electric pallet trucks are generally reliable, operators should be prepared to address common issues. If the truck fails to start, first check the battery charge and connections. Ensure the key switch is in the "on" position and the emergency stop button is not engaged. For lifting problems, check the hydraulic fluid level and look for any visible leaks. If the truck moves slowly or erratically, inspect the drive wheel for damage or debris. Strange noises during operation may indicate loose components or worn bearings. In case of electrical issues, such as unresponsive controls, check for loose wires or damaged switches. Always consult the operator's manual for specific troubleshooting guidance, and don't hesitate to call for professional maintenance if you're unsure about any issue.
Conclusion
Mastering the operation of an electric pallet truck is essential for efficient and safe material handling in various industrial settings. By understanding the components, following proper operational procedures, and implementing advanced techniques, operators can significantly enhance productivity while maintaining a safe work environment. Regular maintenance, adherence to safety protocols, and continuous improvement of operational skills are key to maximizing the benefits of these versatile machines. As technology continues to advance, staying updated with the latest features and best practices will ensure that your electric pallet truck operations remain at the forefront of efficiency and safety.
Contact Us
Experience the pinnacle of material handling efficiency with Diding Lift's 2T stand on pallet truck off road CBDE. This robust and versatile electric pallet truck combines power, precision, and durability to meet your most demanding off-road applications. Elevate your material handling capabilities and boost productivity in even the toughest environments. To learn more about how our innovative solutions can transform your operations, contact us today at sales@didinglift.com.
