What Are the Key Safety Features of Electric Pallet Stackers?

In warehouse operations, the safety of an Electric Pallet Stacker directly affects operator safety, cargo integrity, and equipment lifespan. A well-designed full-electric stacker should incorporate a multi-layered safety system ranging from active prevention to passive protection. This guide systematically outlines the core safety features of electric pallet stackers and their operating principles, helping buyers and operators evaluate equipment safety performance more comprehensively.

1. Safety Feature Classification Framework

The safety features of electric pallet stackers can be categorized into three major types, covering everything from normal operation to abnormal conditions:

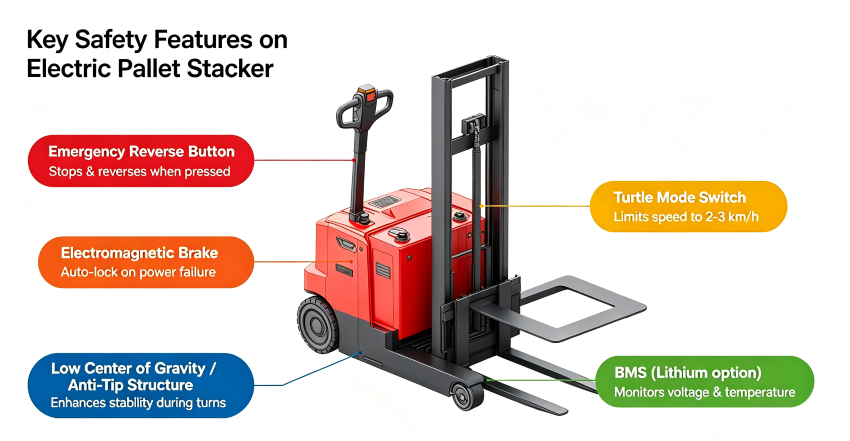

2. Core Safety Features Explained

2.1 Emergency Reverse Button

This is the most basic and important safety device on an electric pallet stacker. When the operator is walking alongside the equipment, if their body or clothing accidentally touches the tiller arm, the emergency reverse button immediately triggers, causing the equipment to stop forward movement and reverse a short distance, preventing crushing injuries.

• Operating Principle: The button is typically located on the tiller head, at the operator's abdomen/waist level. When continuously pressed, the equipment travels in reverse until the hazard is cleared.

• Standard Requirements: Complies with safety standards such as EN ISO 13849, a mandatory feature for walkie-type stackers.

2.2 Electromagnetic Brake

Electric pallet stackers are typically equipped with an electromagnetic braking system that automatically activates in the following situations:

• When the operator releases the tiller arm

• When the equipment detects abnormal tilting

• During power failure or emergency stop

Advantages: Compared to mechanical brakes, electromagnetic brakes respond faster, experience less wear, and can automatically lock when power is cut, preventing roll-away.

2.3 Turtle Mode (Creep Speed)

In narrow aisles or congested areas, equipment should feature a turtle mode (also known as creep speed). In this mode, travel speed is limited to 2-3 km/h, allowing the operator to precisely control the equipment in confined spaces, avoiding collisions with racks or personnel.

• Activation: Typically triggered via a dedicated button or limit switch on the tiller arm.

• Application Scenarios: Turning in narrow aisles, approaching racks for picking/depositing, personnel-dense areas.

2.4 Load Curve Limitation and Overload Protection

An electric pallet stacker's rated load capacity decreases as lift height increases (see load capacity chart). Safety features should ensure:

• Lift Limiting: When the load exceeds the safe capacity at the current height, the equipment automatically restricts lifting.

• Overload Alarm: When the cargo weight exceeds the rated capacity, the equipment issues an audible/visual alarm and prevents lifting.

Product Reference: The 2T Electric Walkie Pallet Stacker CDDA's load curve shows a residual capacity of 1100kg at 3500mm lift height. If the cargo exceeds this value, the equipment's overload protection system automatically intervenes to prevent tip-over.

3. Structural Safety and Stability Design

Beyond electronic safety features, the equipment's mechanical structure design also determines its safety:

4. Intelligent Safety Systems

Modern electric pallet stackers increasingly integrate intelligent safety technologies:

Product Reference: The CDDA comes standard with a 24V/82Ah maintenance-free gel battery and supports lithium battery upgrade / LI-ION battery compatibility. When lithium is selected, the BMS system monitors cell status in real-time to ensure safe charging and discharging.

5. Safety Feature Selection Checklist

6. Conclusion and Action Recommendations

When selecting an Electric Pallet Stacker, the completeness of safety features should be given equal importance to performance parameters like load capacity and lift height. Core safety functions—emergency reverse, electromagnetic brake, turtle mode, overload protection, and structural stability—should be considered the minimum standard configuration.

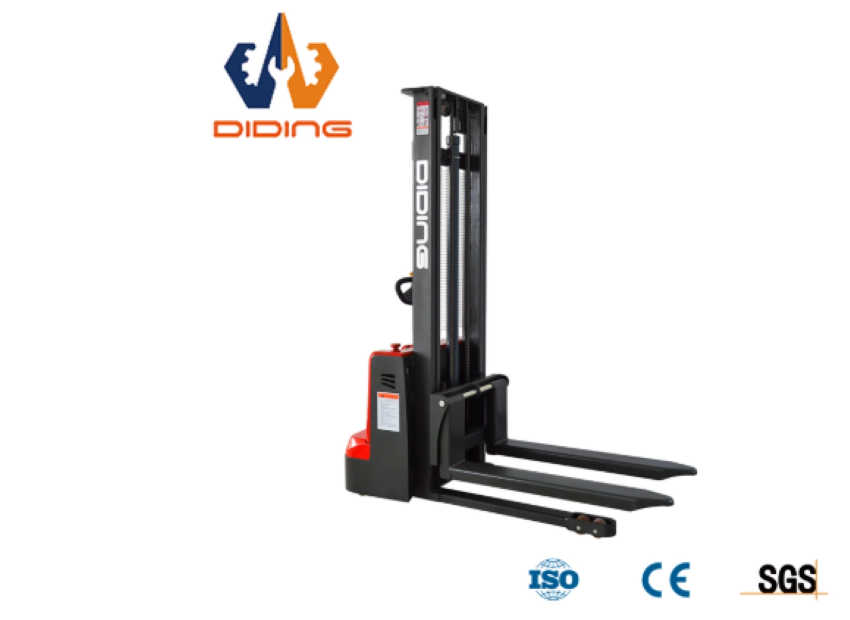

Diding Lift has 12 years of experience and a 65,000 m² factory & workshop, with products holding Europe EN & ISO, CE, EU Certificates, with safety design compliant with international standards. Its 2T Electric Walkie Pallet Stacker CDDA integrates emergency reverse button, electromagnetic brake, turtle mode, overload protection, and a solid structural design, making it a mature choice offering both safety and reliability for narrow-aisle stacking applications.

If you need detailed safety configuration recommendations tailored to your specific operating conditions, please send an email to sales@didinglift.com, and our professional team will provide one-on-one support.

References:

1. Toyota Material Handling Europe. (2023). 3 reasons to consider switching from walkie to rider pallet stacker.

2. Jungheinrich PROFISHOP. (n.d.). Electric pallet stackers buying guide.

3. iLift. (2025). When to Use an Electric Stacker vs. a Forklift.

4. EP Equipment. (2026). Electric pallet stacker buying guide.
