How to Match Electric Pallet Truck Capacity to Your Load Requirements

From “Good Enough” to “Precision Matching” – A Methodology for Load Capacity Selection

In the procurement and use of electric pallet trucks, one of the most common misconceptions is “good enough” – seeing a rated load of 2000kg and assuming the truck can handle all cargo under 2 tons. But in actual operations, precise matching between cargo weight and equipment load capacity is essential. Otherwise, at best it accelerates equipment wear, and at worst it triggers tip-over accidents.

This article systematically explains how to precisely match Electric Pallet Truck load capacity with cargo requirements, covering four core steps: cargo weight assessment, load centre matching, lift height matching, and working condition factor correction, using Diding Lift‘s 2T Stand On Pallet Truck Off Road CBDE as an example to illustrate practical load matching methods.

1. Step One: Accurately Assess Cargo Weight

1.1 It’s Not Just the “Cargo Itself”

Many procurement staff calculate only the cargo weight itself, overlooking these additional weights:

Recommendation: Total Weight = Cargo Net Weight + Pallet Weight + Packaging Weight + Attachment Weight, plus a 10%-20% safety margin.

1.2 Dynamic vs. Static Load

The rated load shown on load capacity charts typically refers to dynamic load (capacity during travel and lifting). Static load capacity when the truck is stationary is usually higher. Selection should be based on dynamic load.

Take Diding Lift‘s 2T Stand On Pallet Truck Off Road CBDE as an example. Its rated load of 2000kg is the dynamic load standard, and selection should not be evaluated based on static load values.

2. Step Two: Match Load Centre

2.1 What Is Load Centre?

Load Centre is the horizontal distance from the vertical face of the forks to the load’s centre of gravity. Industry standard load centres are typically 500mm or 600mm.

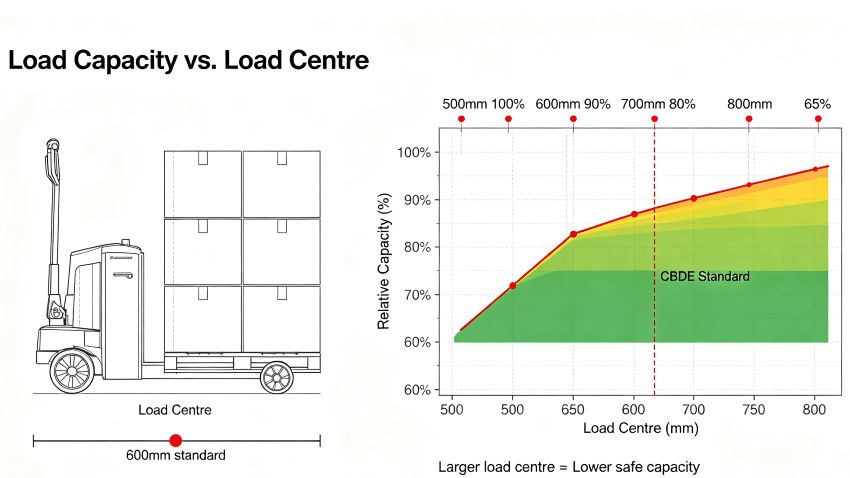

2.2 How Load Centre Affects Capacity

Load capacity is inversely related to load centre: the larger the load centre, the lower the safe load capacity.

CBDE Matching Method: The CBDE‘s standard load centre is 600mm. If actual cargo centre of gravity exceeds 600mm, a lower capacity value must be selected according to the load capacity chart.

2.3 How to Measure Load Centre

Measurement method: horizontal distance from the vertical face of the forks to the load’s centre of gravity. For standard pallet loads, the centre of gravity is usually at the pallet‘s geometric centre; for irregular loads, it may be offset and requires actual measurement.

3. Step Three: Match Lift Height

3.1 How Lift Height Affects Capacity

Similar to load centre, the higher the lift height, the lower the safe load capacity. This is because raising the load elevates the vehicle’s centre of gravity, reducing stability.

3.2 CBDE‘s Lift Height Characteristics

The CBDE’s solid structural design with high stability has been specifically optimized for 2-ton heavy loads, maintaining stable capacity within standard lift height ranges. However, if operations require frequent high-position lifting, capacity should still be reduced according to the chart.

4. Step Four: Working Condition Factor Correction

4.1 Load Correction Factors by Working Condition

Beyond load centre and lift height, actual working conditions also affect safe load capacity. It is recommended to apply correction factors based on the following conditions:

CBDE Matching Method: Its off-road tires and reinforced chassis maintain good load stability on outdoor uneven surfaces. However, for safety, load reduction per correction factors is still recommended in outdoor conditions.

4.2 Dynamic Load Factor

On bumpy surfaces or with frequent start-stop operations, impact forces on the forks increase significantly. It is recommended to multiply the calculated total weight by a dynamic load factor of 1.1-1.2.

5. Practical Load Matching Example with CBDE

Take Diding Lift‘s 2T Stand On Pallet Truck Off Road CBDE as an example, assuming the following conditions:

• Cargo net weight: 1500kg

• Pallet weight: 30kg

• Packaging weight: 10kg

• Load centre: 650mm (slightly over standard 600mm)

• Lift height: 150mm (standard travel height)

• Working condition: Smooth indoor floor

Matching Calculation:

1. Total weight = 1500 + 30 + 10 = 1540kg

2. Load centre correction: 650mm vs. 600mm standard, capacity calculated at approximately 90% → CBDE safe capacity at this load centre is approximately 1800kg

3. Working condition correction: Smooth indoor floor, factor 1.0 → corrected safe capacity 1800kg

4. Actual total weight 1540kg < 1800kg, matching successful

5. Safety margin: (1800 - 1540) / 1800 = 14.4% , meeting the 10%-20% safety margin requirement

Conclusion: Under this working condition, the CBDE fully meets the load requirement with a reasonable safety margin.

6. Common Matching Mistakes and How to Avoid Them

7. Summary

Matching electric pallet truck load capacity with cargo requirements precisely requires four core steps: accurately assessing total cargo weight, matching load centre, matching lift height, and correcting working condition factors.

For companies using the 2T Stand On Pallet Truck Off Road CBDE, it is recommended to confirm total cargo weight and centre of gravity position before each operation, ensuring actual load remains within the chart’s safe range. The CBDE‘s solid structural design, off-road tires, and optional lithium battery upgrade provide a flexible technical foundation for load matching.

For more load matching methods or product selection advice, please contact Diding Lift. This professional manufacturer has over 12 years of industry experience and a 65,000 m² factory. All products comply with European EN standards and ISO, CE, and EU certifications.

Need load matching assessment, product selection, or equipment pricing? Send an email to sales@didinglift.com – our professional team will provide one-on-one support within 24 hours.
