How Often Should Electric Pallet Trucks Be Serviced?

Views: 0 Author: Site Editor Publish Time: 2026-06-15 Origin: Site

After using an electric pallet truck for some time, you may experience sudden battery range drop, abnormal noise during travel, increasingly heavy steering, or sluggish fork lifting. In most cases, these issues are not caused by poor equipment quality, but rather by inadequate maintenance.

Proper maintenance can extend the service life of an Electric Pallet Truck from 3 years to 5-7 years, reducing total operating costs by over 30%.

This article will break down the maintenance schedule, content, and preventive measures for common electric pallet truck issues.

1.Maintenance Overview: By Interval

Electric pallet truck maintenance can be divided into four levels:

Maintenance Type	Frequency	Main Content
Daily Inspection	Daily / before each use	Appearance, battery level, abnormal noise, safety devices
Monthly Maintenance	Once per month	Battery, tires, hydraulic oil level, fasteners
Quarterly Maintenance	Every 3 months	Brake system, steering system, electrical wiring
Annual Maintenance	Once per year	Comprehensive inspection, replacement of wear parts, system calibration

Take Diding Lift‘s 2T Stand On Pallet Truck Off Road CBDE as an example. This Electric Pallet Truck is equipped with solid structural design with high stability and a built-in charger, making daily maintenance relatively hassle-free — but regular inspection is still essential.

2.Inspection Items and Schedules

2.1Daily Inspection

This is the simplest yet most overlooked maintenance step. Spending 2 minutes each day before use can prevent 80% of sudden failures.

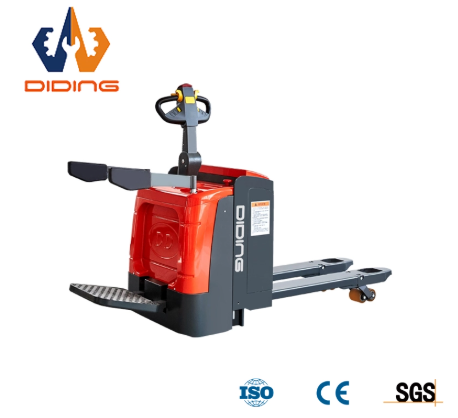

2T Stand On Pallet Truck Off Road CBDE.png

Inspection Item	What to Check	Action if Abnormal
Battery level	Confirm sufficient charge	Charge immediately if below 30%
Tire condition	Check for foreign objects, cracks, uneven wear	Remove objects, replace if necessary
Forks	Check for deformation or cracks	Stop using, report for repair
Handle/buttons	Test lift, lower, travel, emergency stop functions	Stop immediately if abnormal
Abnormal noise	Listen during travel/lifting	Note location, report for repair
Emergency reverse button	Test during reversing	Stop immediately if abnormal

Special note: The 2T Stand On Pallet Truck Off Road CBDE is equipped with an emergency reverse button. Test this function before each use — it is a critical safety feature.

2.2Monthly Maintenance

Monthly maintenance requires more attention and should be scheduled on a fixed day each month.

Maintenance Item	Specific Operation	Standard
Battery maintenance	Lead-acid: check electrolyte level, top up with distilled water; Lithium: check terminals for looseness/corrosion	Electrolyte covers plates; terminals clean and tight
Tire inspection	Measure tread depth, check air pressure (for pneumatic tires)	Tread wear ≤1/3; pressure meets specifications
Hydraulic oil level	Check oil level in hydraulic tank	Between max and min marks
Fasteners	Check wheel bolts, fork mounting bolts	No looseness
Cleaning	Remove dust and oil from body, battery compartment, cooling vents	No dust buildup, no oil sludge

Battery tip: Lead-acid batteries should receive an equalizing charge once per month to balance cell voltages and extend lifespan. Lithium batteries are completely maintenance-free.

2.3Quarterly Maintenance

Quarterly maintenance should be performed by qualified service personnel.

Maintenance Item	Specific Operation	Standard
Brake system test	Measure braking distance (unloaded/loaded)	Within equipment manual specifications
Steering system check	Inspect steering linkage, assist motor, handle return	No sticking, no abnormal gaps
Electrical wiring check	Inspect controller connectors, motor harness, charging port	No looseness, no burning, no damage
Lifting system check	Inspect lift chains/cylinders for leaks	Chains not loose, cylinders no oil seepage
Lubrication	Apply grease to steering joints, wheel shafts	Use specified grease type

2.4Annual Maintenance

Annual maintenance is a comprehensive “physical exam” for the equipment and should be performed by the manufacturer or an authorized service provider.

Maintenance Item	Specific Operation
Control system diagnosis	Connect computer to read fault codes, check controller parameters
Motor performance test	Test drive motor and lift motor current and speed
Battery capacity test	Test actual battery capacity, evaluate replacement need
Hydraulic oil replacement	Completely replace hydraulic oil, clean tank
Wear parts replacement	Replace wheels, bearings, seals, carbon brushes based on wear condition
Safety device calibration	Calibrate emergency stop switch, reverse button

3.Maintenance Adjustments for Different Operating Conditions

Operating Condition	Maintenance Adjustment	Reason
High-frequency operation (>80 trips/day)	Shorten monthly maintenance to bi-weekly	Faster equipment wear
Outdoor/uneven surfaces	Double tire inspection frequency	Accelerated tire wear
Cold storage operation (-25°C)	Inspect cold storage package (hydraulic oil, seals)	Material property changes at low temperatures
Multi-shift operation	More frequent battery maintenance due to increased charging cycles	Faster battery cycling

4. Preventive Maintenance for Common Failures

Failure Symptom	Root Cause	Preventive Maintenance Measure
Sudden battery range drop	Prolonged deep discharge or overcharging	Check battery level daily; charge at 20%-30% remaining
Wheel noise during travel	Bearing lacks grease or is damaged	Apply grease quarterly
Slow lifting	Low or degraded hydraulic oil	Check oil level monthly; replace annually
Heavy steering	Steering joint lacks grease or motor failure	Lubricate quarterly; inspect annually
Emergency stop failure	Aged switch or wiring issue	Test daily; calibrate annually

5. Maintenance Summary Table

Interval	Core Tasks
Daily	Battery level, tires, button functions, abnormal noise
Monthly	Battery, tire wear, hydraulic oil, fasteners
Quarterly	Brakes, steering, electrical, lifting system
Annually	Comprehensive diagnosis, motor test, wear parts replacement

If you are concerned about electric pallet truck maintenance or want to learn more, choosing a supplier with a complete after-sales service system and years of industry experience is very important. For example Diding Lift, as an established company with over 12 years of industry experience and a 65,000 m² factory, not only provides high-quality, diversified Electric Pallet Trucks, including the 2T Stand On Pallet Truck Off Road CBDE, but also ensures that all products comply with European EN standards and ISO, CE, and EU certifications, meeting your needs as comprehensively as possible.

Need a maintenance manual, periodic inspection service, or equipment pricing? Send an email to sales@didinglift.com— our professional team will provide one-on-one support within 24 hours.
