How Do I Choose the Right Reach Forklift for High-Rack Warehousing?

To pick the best reach forklift for high-rack storage, you need to know exactly what your facility needs to run. You need to think about the highest lifting height, the width of the aisle, the daily load capacity, and the performance standards for the batteries. A reach forklift with extendable forks that is designed for narrow aisles lets you store more things vertically while keeping operations running smoothly. Matching the equipment's capabilities to the rack setups, flow rates, and environmental conditions will make sure that your investment pays off in the long run in terms of efficiency, safety, and cost-effectiveness for your warehouse operations.

Understanding Reach Forklifts and Their Role in High-Rack Warehousing

Learn about reach forklifts and how they work in high-rack storage. I can see how high storage has changed the efficiency of warehouses when I walk through modern delivery hubs and distribution centers. The reach forklift stands out because it was designed to work in storage areas with a lot of items and limited space. Traditional counterbalance forklifts need large turning spaces. These special machines, on the other hand, have extendable forks on a pantograph device that can reach into racking systems. This lets them work in areas as small as 8 to 10 feet.

Why Reach Forklifts Excel in Confined Spaces?

The idea behind reach forklifts comes from the main problem that warehouse managers have to deal with: how to make the most of store space without limiting access. Instead of using a heavy counterweight, the load-carrying device sits between two stabilizing legs. This makes the shape thinner, which makes it easier to move through small areas. This arrangement brings the load closer to the frame, which makes it more stable when lifting heavy things at high levels.

Depending on the model, operators usually work while facing either sideways or forward. Features that improve vision include tilting trucks and built-in camera systems. These practical considerations make it easier to place boxes on high racks and keep workers from getting tired during long shifts. Most models have electric power systems that completely get rid of fumes. This makes them good for temperature-controlled places like cold-chain stores where air quality is important.

Operational Advantages That Drive ROI

Spending less money is directly linked to using reach forklifts to make better use of room. By lowering the minimum lane width, stores can add more rack rows, which increases storage space by 20 to 40 percent without making the buildings bigger. This increase in density lowers the cost of storing each pallet and shortens the distance that workers have to drive to get to pick spots, which speeds up throughput during busy times.

When facilities switch from counterbalance fleets to reach forklifts, they often report real changes in how quickly they can fill orders. Put-away and retrieving jobs can be done faster thanks to the precise controls and smooth hydraulic systems. When used with warehouse management systems that improve slotting strategies, these tools are key parts of lean shipping operations that aim to cut down on waste and boost value delivery.

Core Criteria for Choosing the Right Reach Forklift

A methodical evaluation process that matches technical specs with practical facts is needed to choose the right material handling equipment. Before talking to equipment sellers, I think you should first do a full analysis of your warehouse's infrastructure and how things get done.

Evaluating Lifting Height and Reach Capacity

The minimum lifting capacity of your tools is set by how your racks are set up. Narrow aisle reach forklifts can lift things up to 12 meters high, so they can be used for a variety of storage methods, from normal pallet racks to high-bay installs. Find the height of your largest rack beam and add an extra 150 to 200 millimeters above it to allow for safe box placement.

When you write down the load capacity, you need to leave some room for your biggest things in stock. Standard models can hold between 1,500 and 2,500 kilograms, but high-capacity models can hold a lot more. Keep in mind that the lifting capacity goes down as the height goes up for safety reasons. Check the rated capacity at your highest working height instead of thinking that the specs given at ground level apply to the whole lifting range.

Analyzing Aisle Width and Maneuverability Requirements

Find out how wide your aisles are now or when you plan a new warehouse layout, keep the turning radius of your equipment in mind. Reach forklifts can work well in aisles that are 2.5 to 3 meters wide, while balancing models need aisles that are 3.5 to 4 meters wide. This difference might not seem like much, but it adds up quickly when you look at it from several lanes in a big building.

Manufacturers give you information about the wheelbase length, total vehicle width, and turning radius that helps you figure out if the vehicle will work with your plan. Some places that store both small and large items do better with teams that have both small models for areas with a lot of picking and bigger models for areas with a lot of storage. During the planning phase, matching the specs of the equipment with the plans of the building stops mistakes that cost a lot of money and make operations less flexible.

Assessing Battery Technology and Runtime Needs

Choosing the right power system has a big effect on both the initial prices and the long-term costs of running it. Traditional lead-acid batteries are the most popular because they are cheaper to buy and have upkeep steps that most warehouse teams are familiar with. Most of the time, these systems can run continuously for 5 to 7 hours before they need to be charged for 8 hours and then cooled down for another 8 hours.

Lithium-ion battery technology has become popular in places that work multiple shifts or need to charge batteries during breaks. These improved power systems get rid of the need for cooldown times, allow partial charges without shortening the life of the battery, and keep the voltage constant during discharge cycles. Even though it costs 30 to 40 percent more up front than lead-acid options, the practical benefits often make up for it in high-stress settings.

I've worked with shipping managers who keep thorough runtime logs to see how much power is actually being used. This information shows if actions with a single battery are enough or if battery swap programs are needed. By matching battery size to shift plans, you can avoid losing work time because of unexpected power outages during busy times for fulfilling orders.

Considering Environmental and Operational Conditions

Most of the time, electric reach forklifts work great in warehouses that are inside, but there are times when they need extra care. Temperature-controlled areas, especially cold storage operations where the temperature drops below freezing, need special battery cases and shields for the parts inside them. When it's very cold, standard electricity systems don't work as well, so talk to your providers about environmental ratings if your building works in temperatures that aren't normal.

The state of the floor affects how well and how long equipment lasts. Narrow aisle reach forklifts work best on concrete surfaces that are smooth, level, and meet standards for flatness. Wheels, poles, and hydraulic parts wear out faster when floors are damaged with cracks, spalling, or uneven joints. When you buy precision material handling equipment, you should plan to spend some money on floor repairs or grinding to protect your investment and keep the workplace safe.

Making the Final Decision: Matching Your Warehouse Needs with the Right Reach Forklift

The last step in the decision process is to match your facility's operational needs with the technical requirements, the supplier's skills, and your budget. I've been in charge of many procurement choices, and I've always seen that careful planning leads to better results than rushing to make purchases.

Segmenting Requirements by Facility Characteristics

Different equipment designs are made based on warehouse size, storage density, and throughput rates. Large delivery centers that handle thousands of boxes every day need models that are strong and designed to work all the time with little downtime. These sites get a lot out of buying high-quality equipment that comes with full service agreements and quick access to replacement parts. Failures of equipment in high-volume settings cost a lot to run, so it's worth spending more up front on dependability and support infrastructure.

Different optimization models need to be used for smaller warehouses and area delivery activities. For businesses that move hundreds or thousands of boxes every day, cost-effective models that work well and offer good customer service are often the best choice. These centers might choose general-purpose machines that can do a lot of different jobs over specialized high-performance machines that are best for a few specific tasks.

Exploring Customization and Enhancement Options

Standard reach forklift setups work great for many tasks, but special extensions and changes make them more useful in other situations. Side shifters make it possible to precisely position the pallets side to side without having to move the whole truck. This cuts down on cycle times during pallet placement. Fork extensions can handle loads that are too big for the forks, which can happen when different kinds of products are being stored. When camera systems are combined with cab screens, they make it easier to see when working at heights, which improves both safety and accuracy of placement.

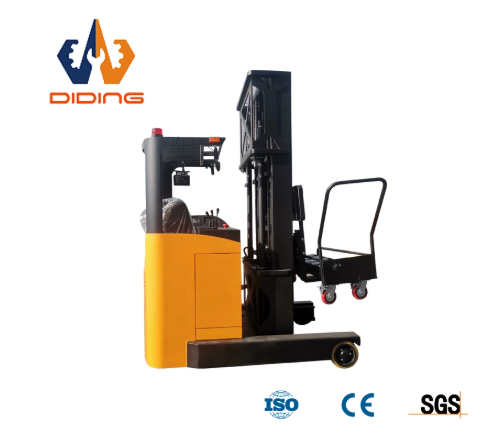

Diding Lift has reach forklift options that are designed to be flexible in how they are used. Our equipment has lifting heights that can be changed from 3 meters to 12 meters, so it can be used in a wide range of warehouse layouts, from normal facilities to high-bay setups. The masts are made of steel that was brought in from Germany. This steel is very strong and durable, even in harsh circumstances. When working at long distances, solid structural designs make the machine very stable, and quick controls make long shifts easy for the operators.

Our basic models use 24V or 48V lead-acid battery systems that have been shown to be reliable and have simple upkeep steps that warehouse teams are familiar with. For tasks that need better performance and adaptability, optional lithium battery improvements offer the benefits of charging when it's convenient, faster cycle times, and steady power transfer during discharge cycles. With this modular method, you can change the specs of the tools to fit your needs and your budget, without sacrificing important features.

Building Supplier Relationships for Long-Term Success

When you buy equipment, it's the start of a relationship with a seller, not the end. Long-term happiness and device performance depend on the quality of ongoing support, which includes parts availability, expert help, warranty service, and resources for teaching operators. I advise warehouse managers to carefully look at both the skills of their suppliers and the specifications of their tools. They should know that the quality of their partnerships has a big impact on the success of their operations.

When problems happen, they are quickly fixed thanks to responsive contact routes and knowledgeable support staff. Suppliers that keep enough parts on hand and hire trained service techs keep downtime during fixes to a minimum. Warranty terms that cover parts that are likely to wear out and reasonable repair intervals show that the maker trusts the quality of the product. These things have a bigger effect on the total cost of ownership than differences in the prices of different pieces of tools.

Conclusion

To choose the best reach forklift for high-rack storage, you have to weigh the technical performance requirements against practical needs, budget limits, and long-term support issues. Systematically look at lifting heights, load capacities, and hallway widths to find tools that can handle the physical needs of your building. Compare battery types based on how long they need to run and the availability of charge stations. Check the supplier's skills, such as the availability of parts, speed of service, and training tools that keep equipment working well throughout its life. Making good choices about what to buy means matching the capabilities of the tools with how work gets done and building relationships with suppliers that support ongoing operational excellence and growth that can be scaled up as needed by the business.

FAQ

What lifting height should I choose for my warehouse racking system?

Add 150 to 200 millimeters to the height of your largest storage beam to make room for pallets. Most modern reach forklifts can be adjusted to any height between 3 and 12 meters, so they can be used in both normal and high-bay setups. Check to see if the stated load capacity at the highest point is enough for your biggest items.

How do I decide between lead-acid and lithium-ion batteries?

Lead-acid batteries are cheaper to buy at first and work well for single shifts with set times for charging. Lithium-ion batteries work well in sites with multiple shifts because they can be charged quickly and consistently without having to wait for the battery to cool down. Figure out the total cost of ownership, which should include the cost of energy use and battery replacements over the projected life of the device.

What aisle width do reach forklifts require?

Reach forklifts can usually work in areas that are 2.5 to 3 meters wide, which is a lot less space than counterbalance models, which need 3.5 to 4 meters. Check the turning radius requirements against the plan of your building to make sure they are compatible. Before deciding on racking setups, talk to providers about the exact sizes of models.

Partner with Diding Lift for Your Material Handling Solutions

Diding Lift knows that a building can only work well if it has solid equipment that is perfectly matched to the needs of the business. We're a well-known reach forklift maker with 12 years of experience in the field. We've created material handling solutions for shipping companies, manufacturing plants, retail distribution centers, and other business buildings around the world. Our engineering team focuses on making sure that the equipment we sell is both reliable and useful for warehouse managers. For example, we use German-imported steel masts to make sure the structure is strong, and we offer a range of flexible battery choices to fit different work schedules.

You are welcome to talk to our technical team about your unique storage problems. We'll help you find the best equipment configurations for your storage density, throughput rates, and running costs, no matter what kind of warehouse you run - a small regional warehouse or a big distribution hub. Get in touch with us at sales@didinglift.com to find out how Diding Lift reach forklift options can help you move more things and reach your business growth goals.

References

Industrial Truck Association. (2023). Material Handling Equipment Selection Guidelines for Warehouse Operations. ITA Technical Standards Publication.

Modern Materials Handling. (2022). Narrow Aisle Equipment Performance Benchmarking Study. Peerless Media, LLC.

Warehouse Management Review. (2023). Total Cost of Ownership Analysis for Electric Lift Trucks. Supply Chain Publications International.

National Safety Council. (2022). Powered Industrial Truck Operator Safety and Training Standards. NSC Workplace Safety Division.

International Warehouse Logistics Association. (2023). High-Density Storage System Design and Equipment Integration Best Practices. IWLA Research Foundation.

Battery Technology Advances for Material Handling Applications. (2023). Journal of Industrial Equipment Engineering, Volume 45, Issue 3.
