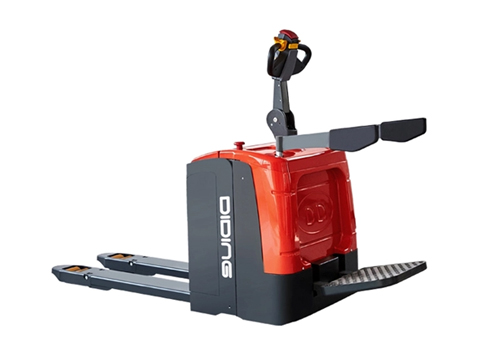

Step-by-Step Guide to Charging Your Lithium-Ion Electric Pallet Truck

It's very important to charge your lithium-ion material handling tools the right way if you want to keep your daily operations running smoothly and avoid costly downtime. Our complete guide shows you how to charge your devices in a way that is safe, effective, and extends the life of your batteries while also making you more productive. Whether you run a retail warehouse or a transportation center, you need to know how to charge your electric pallet truck properly to make sure it works well and saves your investment. When you understand these basics, routine repair turns into smart asset management.

Understanding Lithium-Ion Battery Technology in Electric Pallet Trucks

Lithium-ion technology has completely changed the way modern material handling equipment works. Lithium-ion batteries have big operating benefits that directly affect your bottom line. This is in contrast to standard lead-acid batteries that need to be charged for hours and maintained with water on a regular basis.

Why Lithium-Ion Outperforms Traditional Batteries

Lithium-ion batteries have a higher energy density, which means they can hold more power in a smaller space. This means that it can run for longer on a single charge and is lighter, so users can carry heavier items without losing control. The technology can charge up to four times faster than lead-acid options, so there is no longer any long breaks between jobs. Opportunity charging, or short charging sessions during breaks, is helpful for many tasks and doesn't hurt the health of the battery. Because of its freedom, this system can keep working even in busy places like factories and delivery centers.

Battery Management Systems Enhance Safety and Performance

A high-tech Battery Management System is built into every good lithium-ion battery and constantly checks the voltage, temperature, and charge cycles. This smart system stops overcharging, makes sure that each cell is balanced, and lets workers know about possible problems before they get worse. The BMS makes batteries last longer—often over 3,000 charge cycles compared to 1,500 for lead-acid batteries—which means you get a better return on your investment. Warehouse managers like that predictive repair can help keep unexpected problems from happening during important operations.

Operational Advantages for B2B Applications

When procurement teams look at different material handling options, they know that lithium-ion technology gets rid of the need for air and the risk of acid spills that come with regular batteries. The process doesn't need any upkeep, which cuts down on labor costs and makes the workplace safer. It is best for cold storage buildings to use lithium-ion batteries because they work well even when it is cold outside, while lead-acid batteries have trouble. Because they are sealed, these batteries can handle both water and dust, which makes them perfect for food processing plants and outdoor cargo ports.

Step 1 – Preparing for Safe and Efficient Charging

The right setup sets the stage for safe charging and the best performance from the battery. Taking the time to make sure that the equipment will work with each other and that the charging conditions are right will keep accidents from happening and protect the equipment's health.

Conducting Pre-Charging Safety Inspections

Before plugging in any charging equipment, workers should check the battery area for damage that can be seen, loose connections, and buildup of dirt. Make sure that the voltage of the charger fits the battery's specs. Dismatched equipment does damage that can't be fixed. Make sure the charge cord doesn't have any fraying or visible wiring that could cause a shock. Operators must wear the right safety gear and make sure that emergency shut-off switches are always easy to reach.

Creating an Optimal Charging Environment

Temperature control has a big effect on how quickly batteries charge and how long they last for off road electric pallet truck equipment. Place charging stations in places with good air flow and temperatures that are between 50°F and 86°F. Extreme temps speed up the aging process and lower the battery's power over time. Place chargers on stable, level surfaces away from traffic lanes so that they don't get disconnected by chance while they're charging. Make sure there is enough space around the tools to let heat escape and allow for emergency entry. Many buildings have charging areas that are set aside specifically for that purpose and have the right electrical equipment to handle multiple units at the same time.

Verifying Charger Compatibility and Settings

Many pieces of modern equipment have chargers built in, which makes the process easier. However, portable chargers need to be set up carefully. Make sure that the power and charging current settings on the charger match the battery's specs. Using tools that the maker recommends makes sure that it works with built-in battery management systems. Write down your payment rules in standard operating procedures that can be seen by everyone who is allowed to do so. Operators stay up to date on safety rules and new tools through regular training classes.

Step 2 – The Charging Process Explained

By understanding each step of the charging cycle, workers can protect important battery assets and get the most out of their work. Modern lithium-ion systems have smart charge routines that make sure the right amount of power is delivered at all times.

Connecting Your Battery Safely

Put the tools down on level ground and press the parking brake to start. To avoid damaging the machine, turn it off before connecting any wires. When using external chargers, be careful to line up the connecting pins so that they don't get damaged. Forcing connections that aren't lined up right can bend the pins and cause fires. If the charger is built into the device, just plug the power line into a grounded port. Wait for the proof click that means the link is good, then make sure that the charging lights are on.

Interpreting Charging Indicators and Display Data

Most charging methods have LED lights that show at a look how charged the battery is. A steady red light usually means that the charging is going on, and green means that it's done. Some more modern methods show exact percentages of the battery's charge level and an estimate of how much time is left. Learn how to read the indicators on your unique tools. The operator manual will give you more information. Keep an eye on the initial charging process to make sure everything is working right, but once the cycle starts, most modern systems don't need much control.

Optimal Charging Strategies for Extended Battery Life

Instead of always being charged to full capacity, lithium-ion batteries work better when they are only partially charged. Keeping the charge level between 20% and 80% during normal use makes the battery last longer. Save full charge cycles for times when you need the most power. The technology gets rid of the "memory effect," which means you can stop charging and nothing bad will happen. Opportunity charging is used by many shipping companies to keep off road electric pallet truck equipment ready without setting aside time to charge it. This can happen during lunch breaks or shift changes. Deep recharge cycles speed up battery decline, so don't let them drop below 20% capacity.

Understanding Charge Times and Operational Planning

Charging times depend on the size of the battery and the type of charger being used. It takes a standard lithium-ion battery about 1.5 to 2 hours to charge from 20% to 80% capacity. It might take three to four hours to fully charge the battery. When used for heavy-duty tasks, high-capacity batteries need more time to charge. Plan charging schedules around practical needs; for example, charge tools at different times so that the fleet is always available during busy times. Keep an eye on charge trends to find ways to make things more efficient.

Step 3 – Post-Charging: Handling and Maintenance Tips

Proper finishing the charging cycle and taking care of the battery on a regular basis will ensure steady performance and extend the life of the equipment. These steps keep warranties valid and reduce the number of surprise problems.

Safe Disconnection Procedures

Before removing equipment, wait for the charging signs to show that the cycle is done. The charger should be turned off and then unplugged from the wall. Don't twist or pull at angles that put stress on the connection points when you take the charging plug off the battery. Instead, move slowly and straight forward. Before putting charging cords away, check the connections for signs of damage from heat or corrosion. Loosely coil cords to keep the wires inside from getting damaged. Do not put the equipment back into service until you are sure that all of the battery contacts are properly connected.

Routine Maintenance for Peak Performance

Once a month, use a dry cloth to wipe down the battery connections and connecting contacts to get rid of dust that gets in the way of electricity flow. Check for corrosion around the connection points and use cleaning products allowed by the maker to get rid of any buildup that you find. Using built-in diagnostic systems, keep an eye on battery performance measures and make note of any drop in runtime or charge efficiency. Some more modern systems can get software changes that make charging algorithms work better. Ask your provider about updates that are available. Write down the care tasks you do to keep track of the battery's health over time and help with guarantee claims if you need to.

Troubleshooting Common Charging Issues

If the electric pallet truck equipment won't charge, make sure there is power to the plug and check the circuit switches. Check the charging cords for damage and make sure the connectors are properly seated. If the signs show error codes, look at the operator manual for specific instructions on how to fix the problem. It's common for slow charging to be caused by dirty connections or problems with the temperature of the surroundings. Check these out before thinking the equipment is broken. Problems that don't go away should be looked at by a skilled service. Good equipment has an emergency backward button that adds to safety while fixing and lets you quickly move the equipment if needed.

Conclusion

Lithium-ion material handling equipment's dependability, working efficiency, and total cost of ownership are all directly affected by how it is charged. The technology has strong benefits over standard battery systems because it charges faster, doesn't need to be maintained, and lasts longer. Following the steps suggested by the maker will protect your investment and boost productivity in warehouse and transportation settings. When procurement teams are looking at different pieces of equipment, they should put an emphasis on combined battery management systems, structural safety, and full supplier support. Correct payment methods are important for more than just daily activities. They are also important for long-term asset management and worker safety. By following these best practices, your business will stay ahead of the competition in settings where material handling is getting harder.

FAQ

How long does charging a lithium-ion battery typically take?

The amount of time needed to charge varies on the charger and the battery's size. Opportunity charging methods are supported by the fact that partial charging from 20% to 80% usually takes 1.5 to 2 hours. Three to four hours are needed to fully charge the battery. With fast-charging systems, these times are cut by about 30%, but using them too often may shorten the battery's life slightly.

Can overcharging damage lithium-ion batteries?

Battery Management Systems in modern lithium-ion batteries stop overcharging by stopping power supply immediately at full capacity. With properly working tools, the built-in safety makes overcharging almost impossible. Staying connected after charging is done doesn't hurt, but stopping saves energy and is generally a good idea.

What safety precautions should operators observe during charging?

Operators must make sure that their equipment is properly grounded and only use charging cords that are not broken. Charge in places with good air flow and away from things that could catch fire. If your hands are wet or there is water around, never try to charge. Keep fire extinguishers that can put out electrical fires close by. Notify maintenance staff right away of any strange smells, too much heat, or broken equipment.

Upgrade Your Material Handling Fleet with Diding Lift

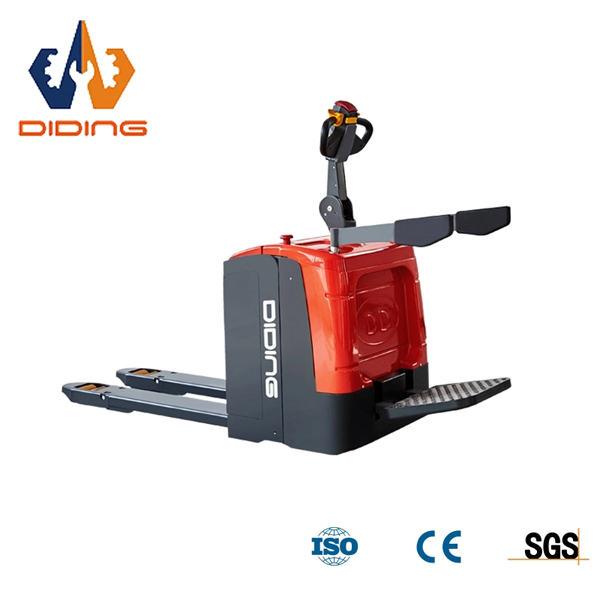

The efficiency of a warehouse depends on having reliable equipment that is backed up by expert help and new tech. Diding Lift makes high-performance electric pallet truck solutions that are perfect for tough B2B uses in the industrial, retail, and transportation industries. Our lithium-ion types come with built-in chargers that make them compatible with all kinds of devices. The fork size can also be changed to fit your specific needs. The emergency reverse button makes the user safer, and our strong structure engineering makes sure that the machine stays stable even when it's loaded to its limits. We've been making high-quality products for 12 years and have a lot of experience moving materials, so we know what problems warehouse managers and buying pros face. Get in touch with our technical experts at sales@didinglift.com to talk about bulk prices for electric pallet truck suppliers and to learn more about the benefits of buying directly from the plant that lower the total cost of ownership. We give you thorough specs, demos on-site, and custom solutions that make your operations run more smoothly while staying within your budget.
