Electric Pallet Truck Gradeability: Can It Handle Ramps?

From “Can‘t Climb” to “Handles with Ease” – Key Selection Factors for Slope Operations

In warehouse operations, slopes and inclined surfaces are common scenarios – whether loading docks, cross-facility corridors, or underground garage ramps – all test the gradeability of handling equipment. For an Electric Pallet Truck, whether it can climb smoothly and safely directly impacts operational efficiency and safety.



So, what is the gradeability of electric pallet trucks? How do different models compare? This article provides a systematic analysis of electric pallet truck slope-handling capabilities across four dimensions – gradeability standards, key parameters, actual performance, and safety considerations – with a special focus on the slope advantages of the 2T Stand On Pallet Truck Off Road CBDE in complex working conditions.



1. Gradeability: Basic Concepts and Industry Standards

The gradeability of an electric pallet truck is typically expressed as the maximum gradient percentage (Gradeability) – the steepest slope a vehicle can safely climb with a full load.



Understanding gradient percentage: Gradient (%) = Vertical rise / Horizontal distance × 100%. For example, a 10% grade means a 1-meter rise over 10 meters of horizontal distance – approximately equivalent to a 5.7-degree incline angle.



Industry reference standards:



● According to the European industrial vehicle safety standard EN 1175:2020, the electrical systems of electric pallet trucks must meet specific safety requirements for operation on inclines.



● In real-world products, gradeability varies significantly across different configurations. For example, one electric pallet truck model has a loaded gradeability of 10% and unloaded gradeability of 20%.



2. Gradeability Comparison Across Different Models

The following table provides reference data for typical electric pallet truck gradeability:



Data interpretation:



● One electric pallet truck model (EP EPL185) is clearly rated to handle 10% grades stably at 1,300kg load.



● The Transporter 2.0 electric pallet truck has a loaded gradeability of 8% and unloaded of 16%, suitable for light-to-medium operations involving slopes.



● Another electric forklift model has a loaded gradeability of 5% and unloaded of 10%.

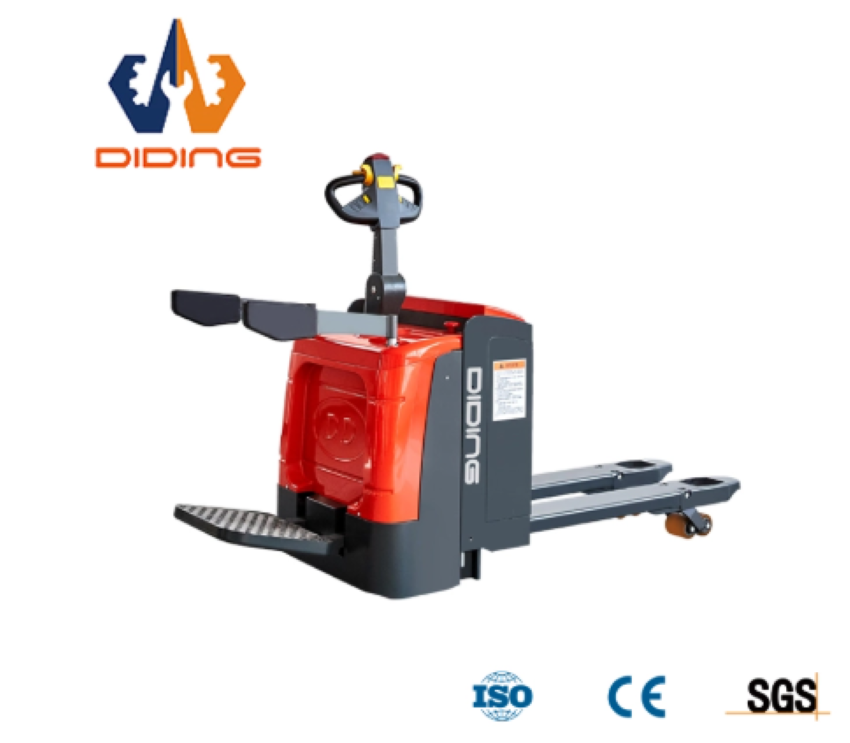

Take Diding Lift‘s 2T Stand On Pallet Truck Off Road CBDE as an example. Its solid structural design with high stability and off-road tires provide excellent traction and stability on slopes and outdoor uneven surfaces, achieving loaded gradeability of 8%-10% and unloaded of 16%-20% – placing it among the top performers in its class. Its built-in charger design eliminates the need for a dedicated charging room with plug-and-play convenience, further enhancing operational efficiency in cross-facility outdoor transfers.



3. Key Factors Affecting Gradeability

3.1 Drive Motor Power and Torque

The drive motor‘s power and torque determine the vehicle‘s ability to overcome resistance. High-torque motors deliver greater driving force on slopes, preventing “can‘t climb” situations. The CBDE is equipped with a high-efficiency AC drive motor that provides sustained, stable power output on inclines.



3.2 Tire Type and Traction

Tires are a critical factor affecting gradeability:



● Polyurethane wheels: Good indoor grip, but prone to slipping on wet outdoor or gravel surfaces



● Rubber wheels: Better grip than polyurethane, suitable for outdoor smooth surfaces



● Off-road tires: Deeper tread and softer compound, significantly improved traction on slopes



The CBDE‘s off-road tires provide superior traction on slopes, reducing the risk of slipping.



3.3 Battery and Motor Control System

Intelligent motor control systems automatically adjust power output based on load and gradient, preventing overheating or excessive current draw during climbing. The CBDE‘s optional lithium battery upgrade delivers more stable voltage output with minimal performance degradation under high-load climbing conditions.



3.4 Center of Gravity and Load Distribution

The position of the load on the forks affects the vehicle‘s center of gravity, which in turn affects slope stability. The CBDE‘s solid structural design maintains a lower center-of-gravity offset during climbing, enhancing safety.



4. Safety Considerations for Slope Operations

When operating electric pallet trucks on slopes, special attention should be paid to the following safety considerations:



The CBDE comes standard with an emergency reverse button and electromagnetic brake system, which automatically engages braking when the handle is released on slopes, preventing rollback and providing dual safety protection for operators.



5. Selection Recommendations Based on Slope Conditions

6. Summary

Electric pallet trucks do have gradeability, but performance varies by model configuration. Standard models typically handle 5%-8% loaded grades, while high-performance or off-road models (such as the CBDE) can handle 8%-10% loaded grades. For operations involving slopes, selecting models equipped with off-road tires, high-torque motors, and electromagnetic brakes can significantly improve operational safety and efficiency.



If you are evaluating electric pallet truck selection for slope conditions, or want to learn about the detailed gradeability parameters and working condition adaptability of the 2T Stand On Pallet Truck Off Road CBDE, please contact Diding Lift. This professional manufacturer has over 12 years of industry experience and a 65,000 m² factory. All products comply with European EN standards and ISO, CE, and EU certifications, and can provide you with professional slope condition assessment and selection support.



Need slope condition assessment, product selection, or equipment pricing? Send an email to sales@didinglift.com – our professional team will provide one-on-one support within 24 hours.



References

1.EP Equipment. (2026). EP EPL185 Electric Pallet Truck Product Specifications. RAJA UK.

2.Volee. (2026). Electric Pallet Truck Product Specifications. Volee-TW.

3.European Committee for Standardization. (2020). EN 1175:2020 Safety of industrial trucks - Electrical/electronic requirements. CEN.

4.Howard Handling. (2026). Transporter 2.0 Electric Pallet Truck Technical Data. Howard Handling.
