Electric Pallet Truck Battery Draining Fast? Here's Why

From “One Charge a Day” to “Two Charges a Day” – What’s Really Going Wrong?

In warehouse operations, the battery life of an Electric Pallet Truck directly impacts operational efficiency and costs. When you notice that equipment requires more frequent charging and runs for shorter periods, it‘s often not just “normal aging.”



Behind rapid battery drain, there may be multiple causes related to operating habits, maintenance oversights, or equipment configuration. This article systematically examines the 6 core factors that lead to fast battery drain, providing targeted diagnostics and solutions to help extend battery life and reduce operating costs. Using Diding Lift’s 2T Stand On Pallet Truck Off Road CBDE as an example, we‘ll analyze how well-designed equipment can address some of these issues at the engineering level.



1. Battery Aging or Failure

The battery is the energy core of an electric pallet truck, and its performance degradation is the most common cause of rapid drain. The following conditions directly lead to a quick drop in battery capacity:



Practical experience: When lead-acid battery capacity drops below 70% of rated value, or when lithium battery cell voltage difference exceeds normal range, battery replacement is often more economical than continued use.



CBDE‘s solution: This model supports an optional lithium battery upgrade, equipped with a smart Battery Management System (BMS) that effectively prevents overcharge, overdischarge, and temperature abnormalities, significantly extending battery life.



2. Improper Charging Habits

Incorrect charging practices are a hidden killer that accelerates battery degradation.



Typical issues:



● Frequent deep discharge: Running the battery completely empty before charging accelerates plate sulfation.



● Charging time too long or too short: Overcharging causes water loss and bulging; undercharging keeps the battery in a chronically undercharged state.



● Incompatible charger: Incorrect voltage or current settings affect charging efficiency and safety.



Recommended practices:



● For lead-acid batteries: Charge when remaining capacity reaches 20%-30%; disconnect promptly after full charge.



● For lithium batteries: Charge as needed; avoid prolonged storage at full or empty charge.



● Regularly calibrate chargers to ensure accurate output parameters.



CBDE‘s solution: Its built-in charger design not only simplifies charging operations but also prevents battery damage caused by improper charging parameters through intelligent charging management.



3. Reduced Efficiency of Motor and Hydraulic System

The drive motor and hydraulic system are the primary consumers of battery energy. When these components lose efficiency, the battery's “waste” increases.



Common failure points:



● Worn motor carbon brushes: Efficiency drops and energy consumption rises as DC motor brushes wear.



● Internal hydraulic leaks: Worn cylinder seals or leaking hydraulic valves cause the system to work continuously.



● Excessively high hydraulic oil viscosity: Particularly in low temperatures, thicker oil increases system resistance.



Solutions:



● Regularly inspect and replace worn carbon brushes and hydraulic seals.



● Select appropriate viscosity hydraulic oil based on ambient temperature (e.g., switch to lower-viscosity oil in winter).



4. Increased Mechanical Resistance

Abnormal resistance from mechanical components forces the motor to output more power, accelerating battery drain.



Areas to inspect:



● Worn tires or low air pressure: Increased rolling resistance, especially under load.



● Brake drag: Brake pads not fully releasing, creating additional friction resistance.



● Poor bearing or gearbox lubrication: Increased resistance in the drivetrain.



● Diagnostic method: Push the equipment unloaded and feel for noticeable resistance or abnormal noise.



CBDE‘s advantage: Its solid structural design with high stability ensures mechanical components remain in good condition over long-term use, reducing extra energy consumption caused by structural deformation or loosening.



5. Overloading and Harsh Working Conditions

Prolonged overloading or operation in extreme conditions significantly increases instantaneous current draw from the battery.



Recommendations: Strictly adhere to rated load capacity, plan optimal travel routes, and minimize unnecessary start/stop cycles.



6. External Wiring and Environmental Factors

Beyond equipment factors, ambient temperature and wiring conditions also affect battery range.



● Corroded or loose terminals: Increase contact resistance, causing power loss.



● Aged or damaged wiring: Increases line resistance, wasting energy.



Regular inspection: Check battery terminals and main cable connections monthly to ensure they are secure and free of corrosion.



7. Summary and Selection Recommendations

To address rapid battery drain in electric pallet trucks, follow these diagnostic steps:



Check battery health: Test capacity; check for sulfation and cell voltage imbalance.



Evaluate charging habits: Confirm charger compatibility, charging duration, and timing are appropriate.



Inspect mechanical components: Check tires, brakes, and bearings for extra resistance.



Review operating conditions: Verify there is no overloading, excessive start/stop, or low-temperature operation.

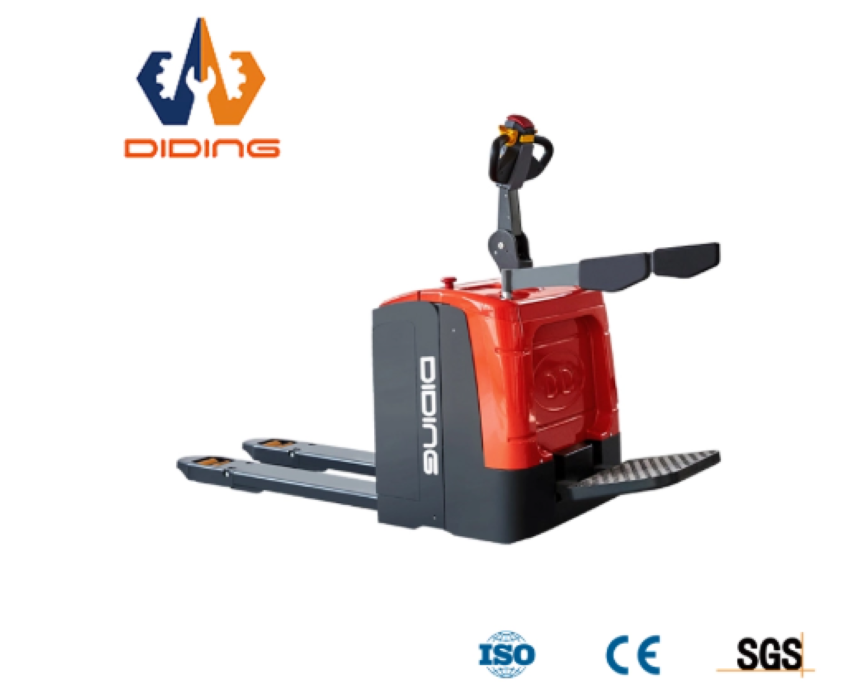

If you‘re facing battery issues or want to avoid such risks from the start, consider Diding Lift’s 2T Stand On Pallet Truck Off Road CBDE. With features such as optional lithium battery upgrade, built-in charger, solid structural design, and emergency reverse button, it delivers outstanding performance in safety and convenience while offering systematic protection in battery management and energy consumption control. As a professional manufacturer with over 12 years of industry experience and a 65,000 m² factory, Diding Lift certifies all products to European EN standards and ISO, CE, and EU certifications.



Need battery diagnostics, selection advice, or equipment pricing? Send an email to sales@didinglift.com – our professional team will provide one-on-one support within 24 hours.



References

1.EP Equipment. (2016). EPT20-15ET Service Manual: Battery Fault Analysis. EP Equipment.

2.Redway Power. (2025). What Makes Jixinxiang Batteries Ideal for Electric Pallet Trucks?. Redway Power.

3.Redway Power. (2025). How to Choose the Best 24V Battery for CAT NPV20N3 Forklifts. Redway Power.

4.Shandong Zhuogong Machinery Co., Ltd. (2025). Why Does My Electric Pallet Truck Lose Power Under Load?. Shandong Zhuogong.
