Complete Electric Pallet Truck Maintenance Guide

Why Maintenance Determines Equipment Lifespan

Electric pallet trucks are the muscle of warehousing and logistics: moving heavy loads, improving efficiency, working day and night. To keep them running steadily year after year, they need continuous care. The difference between maintained and neglected equipment is often not just 3-5 years of lifespan, but also tens of thousands of yuan in later repair costs.



This article provides a complete maintenance program for the Electric Pallet Truck, covering the full cycle from daily checks to annual inspections. Whether you are an operator, equipment supervisor, or purchasing manager, you will find practical maintenance advice here.



1、Maintenance Myth: Is It Cheaper to Repair After Breakdown? No!

Many people think, "If it's not broken, don't fix it." This logic does not apply to electric pallet trucks. If core components of an electric pallet truck (especially lithium battery models) are damaged due to lack of maintenance, the replacement cost can be as high as 30%–50% of the equipment's original price.



Real Case: A 2-ton stand-on electric pallet truck suffered oil cylinder seal wear and leakage due to prolonged lack of hydraulic oil checks. The repair cost exceeded 3,000 RMB. The cost of regular hydraulic oil changes is only a few hundred RMB per year.



Therefore, in the long run, scientific maintenance is not about spending money—it's about saving money.



2、Maintenance Cycle Overview: A Three-Level Maintenance System

Electric pallet truck maintenance is typically divided into three levels:





2.1Daily Maintenance: 5 Minutes a Day, Prevent 80% of Failures

Simple checks before and after each shift can prevent over 80% of unexpected breakdowns.

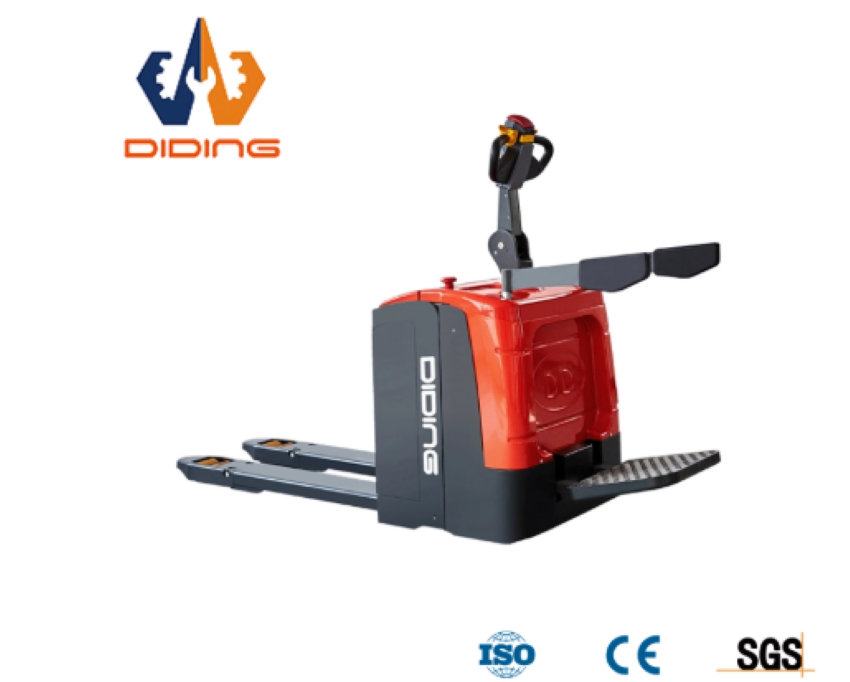

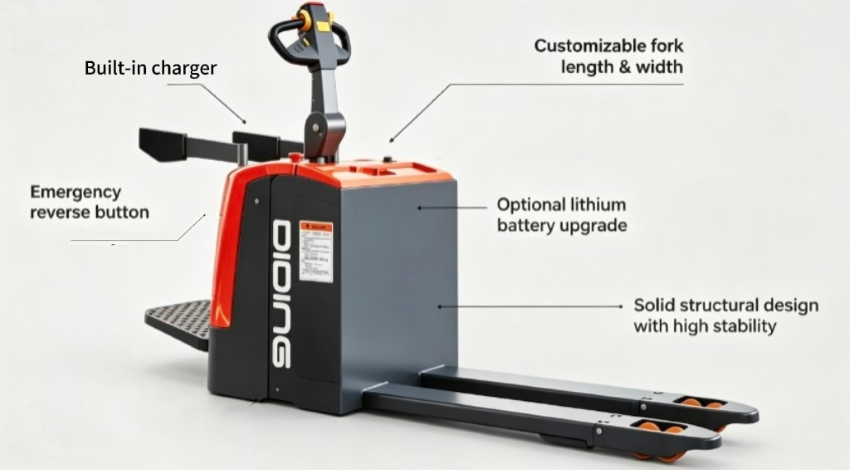

Special Attention: Take Diding Lift‘s 2T Stand On Pallet Truck Off Road CBDE as an example. This Electric Pallet Truck's built-in charger design greatly simplifies charging operations, but the charging port must still be kept dry and clean in daily use to prevent short circuits. Its emergency reverse button should be functionally tested before each shift to ensure it responds properly when operating outdoors or in tight spaces.

2.2Level 1 Maintenance: Half an Hour Weekly, Systematic Hazard Inspection

Weekly systematic inspections focus on identifying potential hazards.





2.3Level 2 Maintenance: From Quarterly to Annual, Deep Maintenance of Core Systems

Level 2 maintenance involves three core systems and must be performed by professional maintenance personnel according to schedule.



2.3.1  Mechanical Maintenance

Recommended Frequency: Every 6 months



Lubricate transmission gears and bearings of the drive wheel



Apply grease to all pivot joints



Check if all wheels rotate freely and fork lifting is normal



Post-maintenance vehicle operating noise should not exceed 70 dB



2.3.2 Hydraulic Maintenance

Recommended Frequency: Annually



Check cylinder condition; inspect for internal and external leaks



Inspect hydraulic fittings and hoses for reliability and leaks



Check hydraulic oil cleanliness; generally change hydraulic oil every 12 months



Hydraulic Oil Selection: For ambient temperatures of -5°C to 40°C, use HL-N46 or HL-N68; for -35°C to -5°C, use HV-N46 or HV-N68



The solid structural design with high stability of the 2T Stand On Pallet Truck Off Road CBDE enhances the equipment's weather resistance, but the hydraulic system still requires regular checks. Its customizable fork length & width also requires checking mounting bolts and cylinder synchronization when forks are replaced.



2.3.3 Electrical Maintenance

Recommended Frequency: Quarterly



Check if battery electrolyte specific gravity is correct: use 1.24 (at 25°C) for tropical regions, 1.26 (at 25°C) for other regions



Check battery terminals; clean and apply a little Vaseline if dirty



Check all electrical connectors for reliability and switches for proper operation



Check electrical insulation (insulation resistance between electrical parts and the truck body should be >0.5MΩ)



The CBDE’s optional lithium battery upgrade greatly reduces the daily maintenance burden of lead-acid batteries (no need to top up water), but the BMS system of lithium batteries still needs to have its communication status and balance checked during maintenance.



3、Maintenance Checklist Quick Reference



4、Summary: Maintenance Is the Most Cost-Effective Investment

Scientific maintenance of an Electric Pallet Truck can not only extend equipment life by several years but also reduce annual maintenance costs by 30%–50%. If you need professional maintenance guidance, or want to learn about the maintenance advantages of the 2T Stand On Pallet Truck Off Road CBDE in long-term use, please contact Diding Lift.

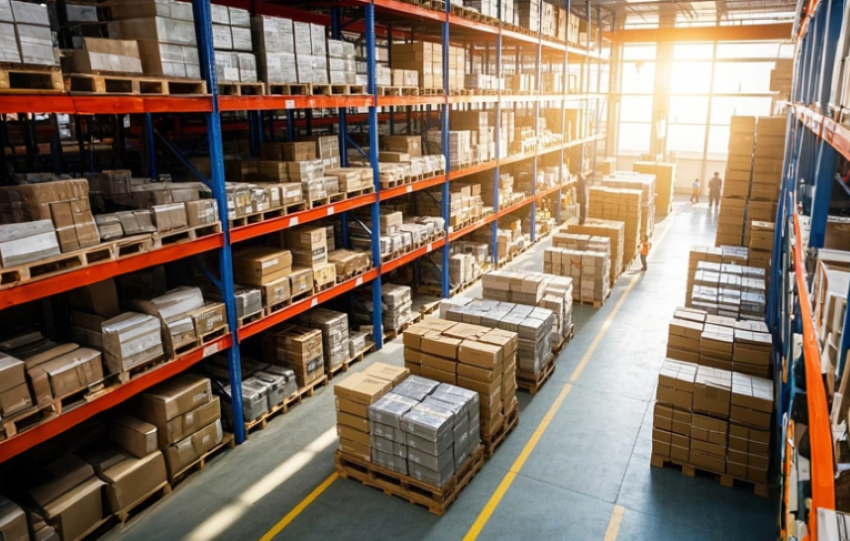

This professional manufacturer has over 12 years of industry experienceand a 65,000 m² factory . All products comply with European EN standards and ISO, CE, and EU certifications , and can provide you with complete maintenance manuals and parts support.



Need a maintenance manual, periodic inspection services, or parts procurement? Send an email to sales@didinglift.com — our professional team will provide one-on-one support within 24 hours.



References:

1.Thompson, R. (2025). Electric Pallet Truck Maintenance Standards: A Complete Guide to Daily, Monthly, Quarterly, and Annual Service Procedures. Logistics Equipment Research Publishing.

2.Williams, P., & Davis, T. (2026). Preventive Maintenance and Failure Mode Analysis for Electric Pallet Trucks in High-Frequency Warehouse Operations. International Journal of Material Handling, 23(4), 67-85.

3.Roberts, S. (2025). Battery Longevity and Maintenance Optimization for Lead-Acid and Lithium-Ion Powered Electric Pallet Trucks. Sustainable Logistics Review, 14(5), 102-120.

4.Garcia, M., & Nakamura, K. (2024). Cold Storage Electric Pallet Truck Maintenance: Low-Temperature Effects on Hydraulics, Tires, and Electrical Systems. Industrial Equipment & Maintenance Journal, 19(6), 134-152.
