Reach trucks are essential material handling equipment designed for reach truck high level operations in warehouses and distribution centers. These specialized forklifts excel at navigating narrow aisles and reaching impressive heights, typically ranging from 3 to 12 meters. By utilizing a unique combination of telescopic masts, outriggers, and extendable forks, reach trucks can efficiently store and retrieve pallets from elevated racking systems. Their compact design and advanced features, such as electric power systems and ergonomic controls, make them ideal for maximizing vertical space utilization while ensuring safe and precise load handling in tight spaces.

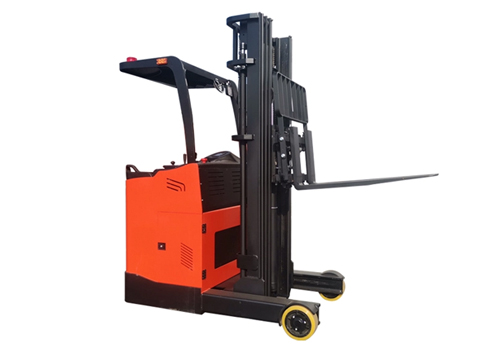

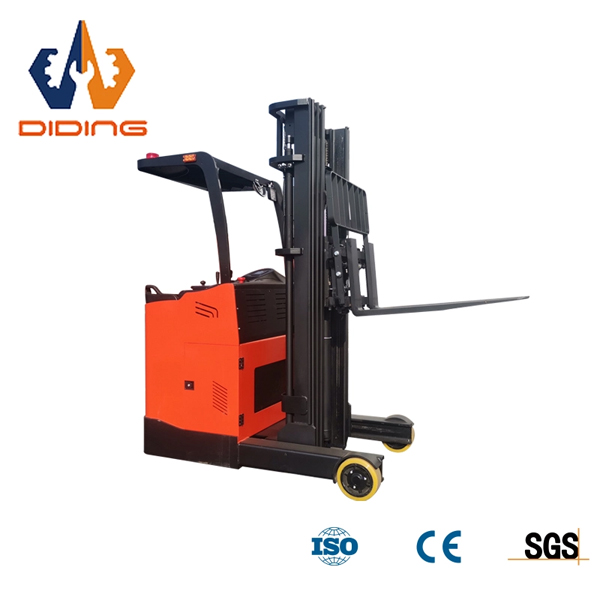

![reach truck high level]()
The Core Components of Reach Trucks
Telescopic Mast System
The heart of a reach truck's high-level capabilities lies in its telescopic mast system. This ingenious design allows the truck to extend vertically, reaching impressive heights while maintaining stability. Modern reach trucks often feature multi-stage masts, which can collapse into a compact form for easy maneuverability when not extended. The mast is typically constructed from high-strength materials like German imported steel, ensuring durability and reliability even under heavy loads.
Outrigger Assembly
Outriggers play a crucial role in the stability and load-bearing capacity of reach trucks. These sturdy legs extend from the base of the truck, providing a wider footprint and enhanced balance when lifting loads to high levels. The outrigger design allows reach trucks to operate in narrow aisles while still maintaining the necessary stability for safe high-level operations.
Extendable Fork Carriage
The extendable fork carriage is a distinctive feature of reach trucks that sets them apart from conventional forklifts. This mechanism allows the forks to move forward and backward independently of the mast, enabling precise positioning of loads in reach truck high level deep racking systems. The carriage is typically mounted on a pantograph mechanism, which ensures smooth and controlled extension and retraction of the forks.
Power and Control Systems
Electric Drive System
Reach trucks are typically powered by robust electric motors, which offer significant advantages over traditional internal combustion systems, especially in indoor and warehouse settings. These vehicles usually operate on 24V or 48V lead-acid batteries, known for their reliability and low emissions. Recently, many manufacturers have introduced lithium-ion battery options, which not only reduce overall charging time but also increase operational uptime and energy efficiency. Additionally, electric drives contribute to quieter operations, reduced maintenance costs, and a cleaner working environment, enhancing overall productivity.
Advanced Control Mechanisms
Modern reach trucks, including reach truck high level models, are equipped with advanced control systems designed to improve handling, precision, and overall operator experience. These systems may feature ergonomic joystick controls, programmable settings tailored to specific tasks, and digital touchscreens for quick adjustments. Some models also offer intelligent feedback through visual or audible cues, helping the operator maintain better control during complex maneuvers. The seamless integration of these control technologies enables effortless manipulation of the mast, forks, and directional movement, ensuring smooth and efficient load handling in tight warehouse spaces..
Safety Features
Safety is a critical concern in high-reach and high-speed warehouse operations, and modern reach trucks address this with comprehensive safety systems. These include load sensors that monitor weight distribution, mast tilt sensors, and automatic speed reduction when the mast is extended to higher levels. Many models also integrate operator presence detection systems, which disable movement when the driver leaves the seat, and emergency stop switches for immediate shutdown. Together, these safety features work to prevent accidents, protect goods, and ensure a safe working environment for all personnel.
Operational Mechanics and Techniques
Lifting and Lowering Mechanics
The lifting mechanism of a reach truck is driven by a robust hydraulic system that enables precise vertical movement. Hydraulic fluid is pumped into the lift cylinders, causing the telescopic mast to extend in stages, elevating the fork carriage to reach high racking levels. During the lowering process, the release of hydraulic pressure is carefully regulated, allowing the load to descend smoothly and safely. This controlled action minimizes the risk of damage to goods and ensures stable handling during elevation or descent.
Load Handling Techniques
Efficient load handling at elevated heights, including reach truck high level operations, requires the operator to apply refined techniques that ensure both safety and accuracy. Reach truck operators must be proficient in positioning loads using features such as load centering, side-shifting, and tilt functions to align forks correctly with pallet openings. The reach mechanism plays a key role in enabling horizontal extension and retraction, essential for accessing pallets in double-deep racking or narrow aisles. Mastery of these techniques enhances productivity while reducing the risk of product or racking damage.
Navigating Narrow Aisles
Reach trucks are designed to excel in narrow aisle environments, thanks to their compact frames, agile steering, and ability to move with the mast retracted. These features make them ideal for high-density storage operations where space is limited. To operate efficiently, drivers must develop strong spatial awareness and precise control to safely maneuver within tight clearances. Mastering these techniques is crucial for optimizing warehouse space utilization without compromising safety or operational speed.
Conclusion
Reach trucks are marvels of engineering that enable efficient high-level material handling in warehouses and distribution centers. By combining telescopic masts, outriggers, and extendable forks with advanced control systems and safety features, these machines offer unparalleled versatility in narrow aisle environments. Understanding the mechanics behind reach truck operations not only enhances appreciation for these sophisticated machines but also promotes safer and more efficient use in industrial settings.
