What is an Electric Pallet Stacker? Complete Guide

Views: 0 Author: Site Editor Publish Time: 2026-08-18 Origin: Site

If you are looking for equipment that can handle both horizontal transport and vertical stacking, the Electric Pallet Stacker is exactly what you need. It fills the gap between manual pallet jacks and large forklifts, making it one of the most common pieces of equipment in warehousing, logistics, and manufacturing. This guide provides a complete introduction and reference—from definition, working principle, types, core advantages, to selection considerations.

1. What Is an Electric Pallet Stacker?

An Electric Pallet Stacker is a compact material handling equipment powered by batteries, with motors driving both travel and lifting. Its core function is to lift palletized loads from ground level to rack height (typically 2-3.5 meters) and perform short-distance horizontal transport.

Difference from Manual Pallet Jacks: Manual jacks can only raise loads to approximately 200mm above the ground (just enough for movement), while electric stackers can lift loads to rack height for storage.

Difference from Counterbalance Forklifts: Electric stackers are walkie or stand-on operated and have a much smaller turning radius, making them more suitable for narrow-aisle operations; however, load capacity and lift height are typically lower than forklifts.

2. Working Principle

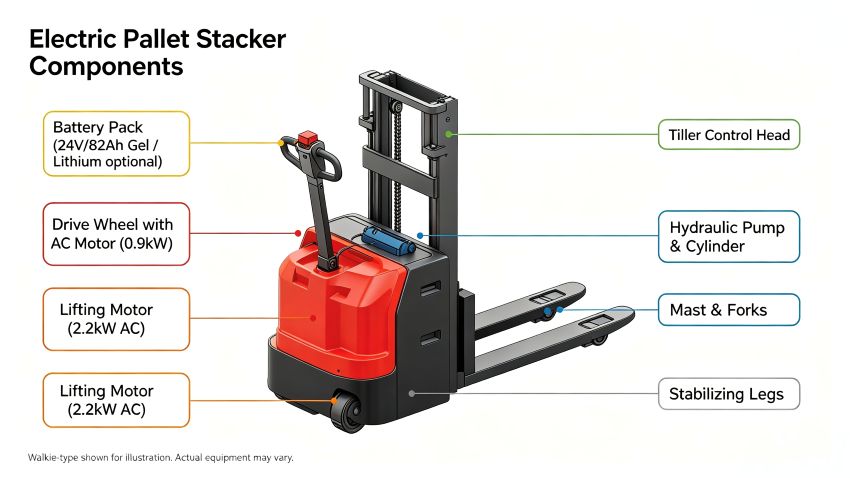

The core systems of an electric pallet stacker include:

System	Function Description	Typical Configuration (CDDA)
Power System	Battery provides electrical energy to drive motors	24V/82Ah maintenance-free gel battery (lithium optional)
Travel Motor	Drives wheels for forward/reverse movement	0.9kW AC drive motor
Lifting Motor	Drives hydraulic pump for fork lifting	2.2kW AC lifting motor
Hydraulic System	Hydraulic cylinders push the mast for lifting	Electric hydraulic pump + cylinders
Control System	Controls travel speed, lift height, and steering	Integrated tiller and electronic controls

Operation: Through the tiller or control handle, the operator controls travel speed, steering, and fork lift/lower. The electric hydraulic pump converts electrical energy into hydraulic pressure, driving the cylinder to raise the mast.

3. Main Types

By operation mode, electric pallet stackers are divided into two main types:

Type	Operation Mode	Advantages	Applicable Scenarios
Walkie	Operator walks alongside, controlling via tiller	Extremely small turning radius, lower cost, intuitive	Narrow aisles, short distances, low-frequency stacking
Stand-on	Operator stands on platform and rides	Higher travel speed (up to 10km/h), reduces fatigue	Wider aisles, long distances, multi-shift operations

By Mast Type:

Simplex Mast: ≤1600mm, strongest load capacity
Duplex Mast: 2000-3500mm, best value
Triplex Mast: 3500-5000mm+, maximum lift

4. Core Advantages

Why are more and more businesses choosing electric pallet stackers?

Advantage	Description	Value
High Stacking Efficiency	Single stacking cycle approx. 28 sec (to 2.7m)	Approx. 180 pallets per shift
Narrow-Aisle Adaptability	Turning radius as low as 1494mm (CDDA)	Aisle width only approx. 2377mm, increasing storage density
Low Operating Cost	Maintenance-free motors, low energy cost	5-year TCO approx. 80,000-110,000 RMB (CDDA)
Operator-Friendly	Button controls, no manual pumping	Significantly reduces operator fatigue and injury risk
Zero Emissions	Battery-powered, no exhaust	Suitable for indoor operations, meets environmental requirements

5. Selection Considerations

When purchasing an electric pallet stacker, follow these steps:

Step	Key Considerations	Common Mistakes
① Confirm Load	What is the heaviest cargo? High-level stacking needed?	Only looking at ground capacity, ignoring residual capacity at height
② Confirm Lift Height	What is the tallest rack pick level?	Assuming higher lift is always better, ignoring capacity reduction
③ Confirm Aisle Width	What is the narrowest aisle width?	Equipment doesn't fit after purchase
④ Select Battery Type	Single or multi-shift? Charging conditions?	Ignoring battery maintenance cost and charging time
⑤ Select Operation Mode	Walkie or stand-on?	Choosing walkie leads to low efficiency for long-distance transport

6. Electric Pallet Stacker vs. Other Equipment

Equipment Type	Lift Height	Load Capacity	Turning Radius	Typical Price
Manual Pallet Jack	200mm	≤2500kg	Unlimited	2,000-8,000 RMB
Electric Pallet Stacker (CDDA)	3500mm	2000kg	1494mm	60,000-100,000 RMB
Counterbalance Forklift	6000mm+	1500-5000kg	2000-2800mm	120,000-400,000 RMB

7. Conclusion and Action Recommendations

The Electric Pallet Stacker is the key equipment bridging manual handling and forklift operations. With its core features of electric travel, electric lifting, and compact size, it provides an efficient and flexible solution for indoor stacking applications.

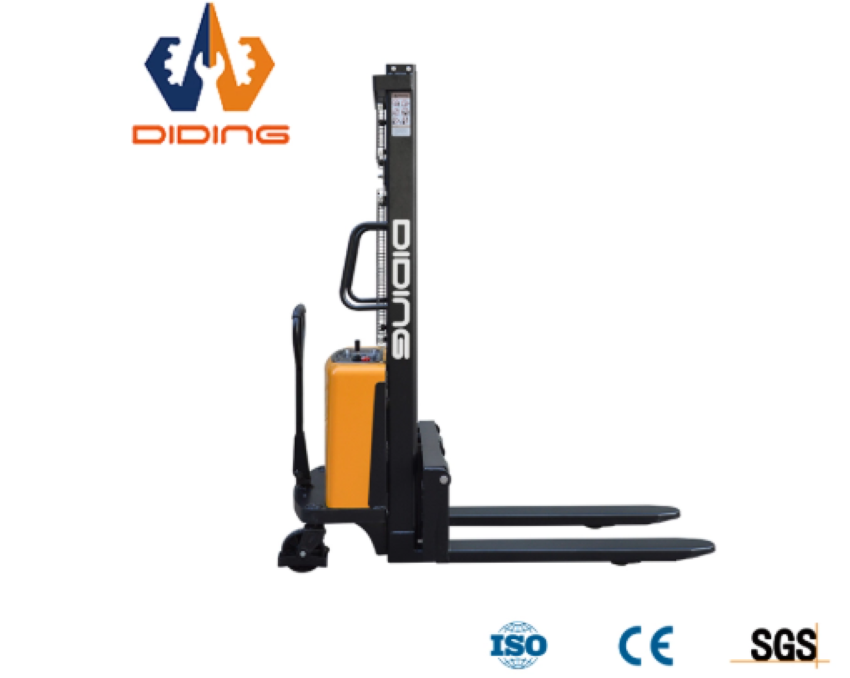

Diding Lift has 12 years of experience and a 65,000 m² factory & workshop, with products holding Europe EN & ISO, CE, EU Certificates, and supports ODM/OEM cooperation & customization. Its 2T Electric Walkie Pallet Stacker CDDA, featuring a 1494mm turning radius, 2000kg load capacity, and AC motor system, is a mature choice for narrow-aisle stacking applications.

If you need detailed selection recommendations tailored to your specific operating conditions, please send an email to sales@didinglift.com, and our professional team will provide one-on-one support.
