What Kind of Maintenance Do Electric Pallet Stackers Require?

What Maintenance Does an Electric Pallet Stacker Need? A Practical Guide to Extending Equipment Life

Proper maintenance is key to ensuring the long-term stable operation of an Electric Pallet Stacker and reducing total cost of ownership (TCO). It not only reduces unexpected breakdowns but also forms the foundation for operational efficiency and safety. This article provides a systematic maintenance framework, from daily to annual tasks, to help you easily manage equipment health.

1.Maintenance Core: By Cycle and Level

Scientific maintenance requires a multi-level system covering "daily, monthly, quarterly, and annual" tasks. The table below summarizes core tasks and frequencies at each stage, serving as your maintenance calendar.

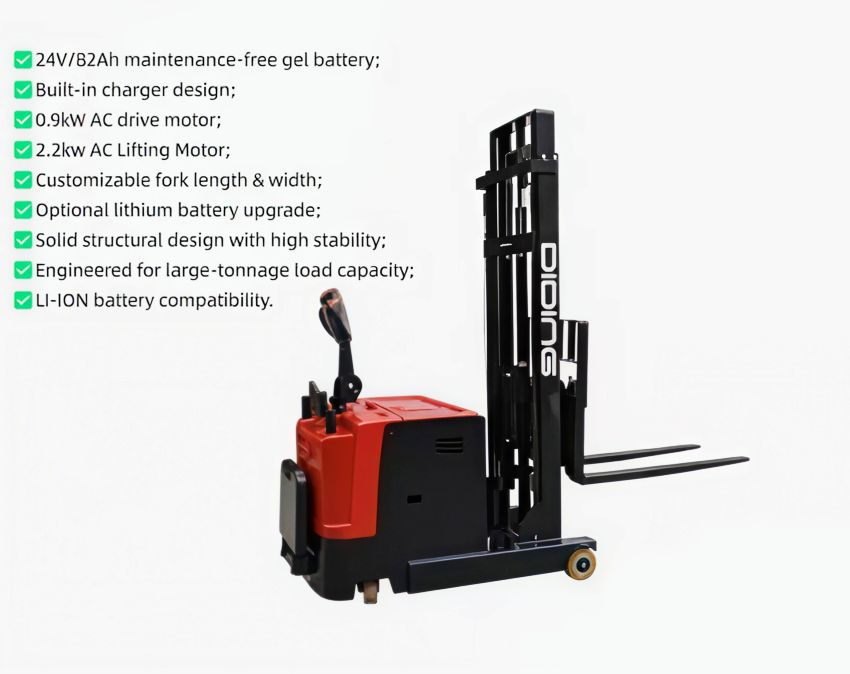

Choosing a model equipped with a 24V/82Ah maintenance-free gel battery, such as Diding Lift's 2T Electric Walkie Pallet Stacker CDDA, eliminates the monthly maintenance steps of traditional lead-acid batteries (e.g., adding water, measuring specific gravity), significantly reducing maintenance workload and labor costs.

2. Key Maintenance Points for Three Critical Systems

2.1 Battery and Charging System

The battery is the power core of the electric pallet stacker, and its maintenance directly determines equipment availability and lifespan.

* Daily Use: It is recommended to charge promptly after each shift and avoid storing with a depleted battery. During long-term idleness, recharge every 1-2 months to maintain activity.

* Charging Specifications: Use the original charger to avoid overcharging or undercharging. For lithium batteries that support fast charging, ensure the charging environment is well-ventilated.

* Regular Maintenance: For non-maintenance-free batteries, regularly check the electrolyte level (should be 10-15mm above the plates) and top up with distilled water (never add acid). Additionally, perform an equalizing charge on the battery pack every 3 months to effectively prevent "weak cell" issues and extend overall battery life.

* Product-Related Advantage: The CDDA not only comes standard with a maintenance-free gel battery but also offers an optional lithium battery upgrade / LI-ION battery compatibility, eliminating electrolyte maintenance work entirely and supporting 1-2 hour fast charging, suitable for high-intensity multi-shift operations.

2.2 Motor and Drive System

The motor is the source of equipment power, and its maintenance is often overlooked.

* Regular Insulation Resistance Measurement: Every three months, use a 250-volt megohmmeter to measure the motor's cold insulation resistance. If the value is below 0.5MΩ, drying treatment is required.

* Inspect Brushes and Commutator: Also every three months, check the motor brush wear and clean carbon deposits between commutator segments. Replace brushes promptly if severely worn. This maintenance is especially important for DC motors.

* Cleaning and Tightening: Regularly remove dust from the motor surface and check all electrical connections for tightness.

* Product-Related Advantage: The CDDA is equipped with a 0.9kW AC drive motor and a 2.2kW AC lifting motor. The AC motor's brushless design fundamentally eliminates this regular inspection and replacement work, resulting in less maintenance and higher efficiency.

2.3 Hydraulic and Mechanical Systems

This part directly affects the smoothness and stability of core operations such as lifting and steering.

* Hydraulic Oil Management: Regularly check the hydraulic oil tank level (should be between the scale marks) and top up with the same type of hydraulic oil if below the lower limit. Keep hydraulic oil clean, with annual replacement recommended.

* Inspect for Leaks and Wear: Regularly visually inspect hydraulic hoses and fittings for leaks; check mast, forks, and other structural parts for deformation or weld cracks.

* Lubrication: Regularly lubricate all moving parts including mast rails, chains, rollers, and bearings to reduce dry friction wear.

* Product-Related Advantage: The CDDA adopts a solid structural design with high stability. Its reinforced mast and frame effectively resist deformation under heavy loads. Combined with being engineered for large-tonnage load capacity, it significantly reduces the risk of structural fatigue damage and extends the vehicle's lifespan. Customizable fork length & width ensures precise adaptation to loads, reducing additional impact on the hydraulic and mechanical systems from off-center loading.

3.Establishing a Standardized Preventive Maintenance System

Beyond specific operations, a comprehensive maintenance system also relies on record-keeping and training.

Establish Records: Create a maintenance log for each machine, detailing the time, content, replaced parts, and any abnormalities for each maintenance session. This helps analyze fault trends and optimize maintenance plans.

Standardize Operations: Train operators to strictly perform daily pre-shift inspections and develop good habits of smooth operation, avoiding overloading and abrupt starts/stops.

Seek Professional Support: For annual in-depth maintenance or complex faults, it is advisable to contact the manufacturer or its authorized service provider.

As mentioned earlier, Diding Lift has 12 years of experience and a 65,000 m² factory & workshop, with products holding Europe EN & ISO, CE, EU Certificates, and offers ODM/OEM cooperation & customization services. This provides your Electric Pallet Stacker with professional lifecycle maintenance support.

If you need customized maintenance recommendations tailored to your specific operating conditions, please send an email to sales@didinglift.com, and our professional team will provide one-on-one support.

References：

1.Thompson, R., & Davis, M. (2025). Preventive Maintenance Schedules for Electric Pallet Stackers: A Best-Practice Guide for Warehouse Operators. Journal of Industrial Equipment & Maintenance, 41(2), 68-82.

2.Chen, L., & Müller, H. (2024). Battery Maintenance Strategies for Electric Pallet Stackers: Comparing Gel, AGM, and Lithium-Ion Technologies. International Journal of Power Systems & Logistics, 33(4), 112-126.

3.Martinez, A., & Williams, S. (2026). AC Motor Efficiency and Longevity in Heavy-Duty Electric Pallet Stackers: Maintenance Implications for High-Frequency Operations. European Journal of Material Handling Engineering, 28(1), 45-59.

4.Okafor, N., & Jensen, P. (2025). Hydraulic System Reliability and Preventive Maintenance for High-Capacity Electric Pallet Stackers. Journal of Hydraulic & Mechanical Engineering, 37(3), 88-101.
