What Is the Lifting Capacity of an Electric Pallet Stacker? Load Capacity Guide

Views: 0 Author: Site Editor Publish Time: 2026-08-22 Origin: Site

When purchasing an Electric Pallet Stacker, "lifting capacity" is one of the most misunderstood parameters. Many buyers mistakenly assume that the rated capacity is a constant capability at all heights—but the reality is far more complex. This guide systematically explains the true lifting capacity of electric pallet stackers from four dimensions: load definition, height impact, load centre distance, and safety margin.

1. Lifting Capacity Definition: More Than One Number

The "lifting capacity" of an electric pallet stacker includes two related but distinct concepts:

Term	Definition	Practical Significance
Rated Capacity	Maximum load the equipment can safely lift at 200mm above ground with standard load centre (typically 500mm)	Baseline reference for selection, but not a full-operating-condition value
Residual Capacity	Maximum load the equipment can actually safely lift at a specific lift height	Actual selection basis—must be verified against height

Core Principle: Residual capacity is always ≤ rated capacity, and decreases as lift height increases.

2. Impact of Lift Height on Load Capacity

The following shows the residual load capacity variation at different lift heights for a typical 2-ton electric pallet stacker (load centre 500mm):

Lift Height	Residual Capacity (Approx.)	Capacity Reduction	Applicable Scenarios
Ground level (0mm)	2000kg	0%	Horizontal transport, ground clearance
1600mm (Simplex)	Approx. 1600kg	Approx. 20% reduction	Low-level racking
2500mm (Duplex)	Approx. 1300kg	Approx. 35% reduction	Mid-level racking
3500mm (Duplex)	Approx. 1100kg	Approx. 45% reduction	High-level racking

Example Reference: The 2T Electric Walkie Pallet Stacker CDDA has a residual capacity of approximately 1100kg at 3500mm lift height. If your cargo weighs 1800kg and needs to be stacked at 3.5 meters, this model is not suitable.

3. Load Centre Distance: The Overlooked Key Parameter

Load Centre Distance is the horizontal distance from the fork face to the cargo's centre of gravity. The standard value is 500mm, corresponding to standard EUR pallets (1200×1000mm).

Load Centre Distance	Effect on Capacity	Common Scenarios
400mm	Capacity higher than rated	Short pallets, loads with rear-biased centre of gravity
500mm (Standard)	Capacity equals rated	Standard EUR pallets
600mm	Capacity lower than rated	Long pallets, loads with forward-biased centre of gravity
700mm+	Capacity significantly reduced	Extra-long loads, non-standard pallets

Selection Tip: If your pallet's load centre distance exceeds 500mm, request the corresponding load capacity chart from the supplier.

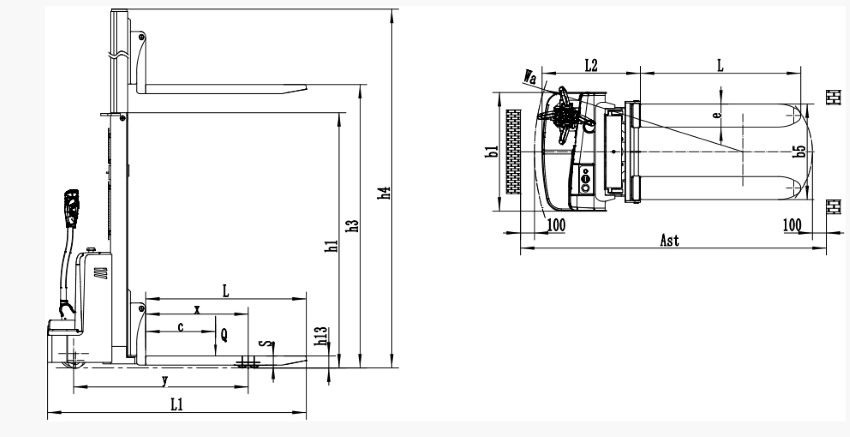

2T Electric Walkie Pallet Stacker CDDA Flat Detail Drawing.png

4. Safety Margin: Leave Room for Uncertainty

It is recommended to reserve at least 15%-20% safety margin when calculating required capacity.

Cargo Weight	Minimum Recommended Rated Capacity (Ground)	Minimum Recommended Residual Capacity (At Height)
1000kg	Approx. 1200kg	Approx. 1200kg (all heights)
1500kg	Approx. 1800kg	Approx. 1800kg (all heights)
1800kg	Approx. 2200kg	Approx. 2200kg (all heights)

5. Common Selection Mistakes

Mistake	Consequence	Correct Practice
Only looking at rated capacity	Overloading at height, equipment tip-over or damage	Check load capacity chart for residual capacity at all heights
Ignoring load centre distance	Actual capacity lower than expected	Confirm pallet load centre distance and request corresponding chart
Not leaving safety margin	Overloading due to cargo weight variation	Reserve 15%-20% margin
Confusing ground capacity with height capacity	Equipment tip-over during high-level stacking	Distinguish between the two and base decisions on height data

6. Conclusion and Action Recommendations

The lifting capacity of an Electric Pallet Stacker is not a single number—it is a dynamic range determined by rated capacity, lift height, and load centre distance. The core of selection is: first confirm the maximum stacking height and corresponding cargo weight, then check the load capacity chart, and finally select the matching model.

Diding Lift has 12 years of experience and a 65,000 m² factory & workshop, with products holding Europe EN & ISO, CE, EU Certificates, and supports ODM/OEM cooperation & customization. Its 2T Electric Walkie Pallet Stacker CDDA, with a 2000kg rated capacity, 3500mm maximum lift height, and 500mm standard load centre, provides a reliable baseline for most indoor stacking applications. For final selection, please verify the load capacity chart against your actual rack height and pallet specifications.

If you need detailed load capacity selection recommendations tailored to your specific operating conditions, please send an email to sales@didinglift.com, and our professional team will provide one-on-one support.
