2 Ton Electric Pallet Truck Specifications & Dimensions Guide

Views: 0 Author: Site Editor Publish Time: 2026-08-21 Origin: Site

From “Length, Width, Height” to “Turning Radius” – Essential Dimension Parameters for Selection

In warehousing and logistics equipment selection, the specifications and dimensions of an Electric Pallet Truck are among the most fundamental and important considerations. Dimensional parameters not only determine whether equipment can operate smoothly in existing warehouse aisles but also directly affect storage density, operational efficiency, and safety.

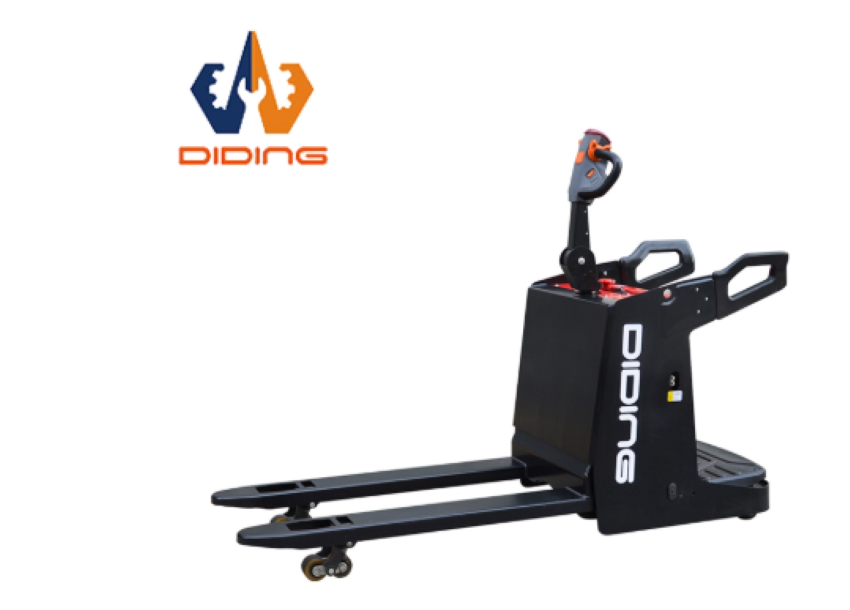

2T Stand On Electric Pallet Truck CBDC4.png

This article provides a systematic analysis of key specifications and dimensions for 2-ton electric pallet trucks across five dimensions: overall dimensions, fork specifications, turning radius, ground clearance, and weight parameters – helping you precisely match your warehouse operating conditions.

1. Overall Dimensions

Overall dimensions determine the equipment‘s “footprint“ in the warehouse and its maneuverability. Below are typical overall dimension ranges for 2-ton electric pallet trucks:

Parameter	Typical Range	Description
Overall Length (with forks)	1600-2000mm	Includes fork length, affects turning aisle width
Overall Width	680-850mm	Directly affects aisle maneuverability
Overall Height (handle upright)	1100-1450mm	Affects operator comfort, matches operator height
Overall Height (handle folded)	700-900mm	Affects storage and transport space requirements
Minimum Ground Clearance	30-50mm	Affects maneuverability; too low may cause scraping

Take Diding Lift‘s 2T Stand On Pallet Truck Off Road CBDE as an example. Its compact body design maintains a width of within 750mm while delivering 2-ton load capacity, providing excellent maneuverability in narrow aisles. Its solid structural design with high stability ensures sufficient structural strength remains intact despite the compact dimensions.

2. Fork Specifications

Forks are the core components that directly contact pallets. Their specifications directly affect pallet compatibility and handling stability.

Parameter	Typical Range	Description
Fork Length	1000-1500mm	1150mm is industry standard, fits standard EUR pallets
Fork Width (single fork)	150-180mm	Affects smoothness of pallet insertion
Fork Outer Width	540-685mm	540mm fits standard EUR pallets; 685mm is wide-fork version
Fork Thickness	50-65mm	Greater thickness provides higher load capacity
Minimum Fork Height	80-95mm	Lower is easier to insert into pallets; standard pallet bottom height ~100mm
Maximum Fork Height	195-210mm	Maximum height after lifting, affects stacking operations

Selection Recommendations:

Standard EUR pallets (1200×800mm) : Choose fork length ≥1150mm, fork outer width 540mm
Non-standard pallets or special cargo: Choose customizable fork length and width

The CBDE supports customizable fork length and width, allowing adaptation to actual pallet dimensions and aisle widths to meet diverse requirements such as non-standard pallets and special cargo.

3. Turning Radius

Turning radius is the core parameter determining warehouse aisle width requirements and directly affects warehouse space utilization.

Parameter	Typical Range	Suitable Aisle Width
Turning Radius	1400-1800mm	Smaller turning radius means narrower aisles required

Rule of Thumb:

Minimum Aisle Width ≈ Turning Radius + Fork Length + Safety Margin (approx. 200-300mm)

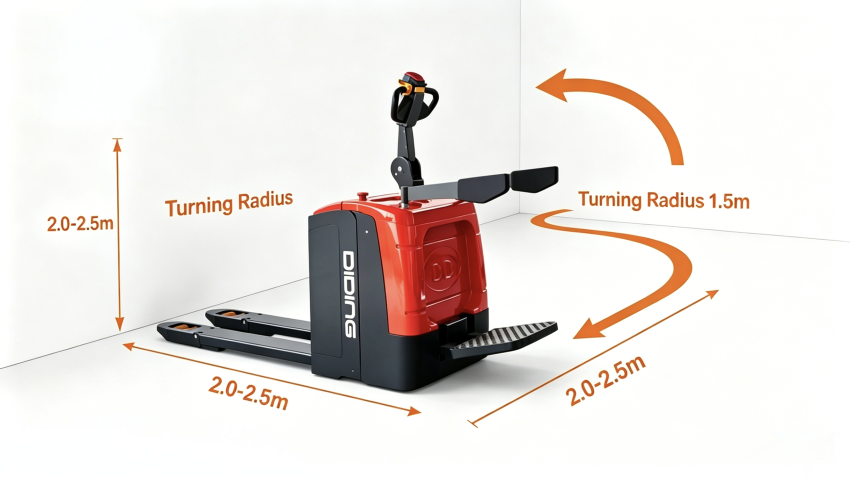

Take the CBDE as an example. Its turning radius is only approximately 1500mm. With standard 1150mm forks, it can operate flexibly in aisles approximately 2.3-2.5 meters wide, increasing warehouse space utilization by more than 20% – making it an ideal choice for narrow-aisle warehouses.

...2T Stand On Pallet Truck Off Road CBDE Operating Space.png

4. Ground Clearance

Ground clearance affects equipment maneuverability on ramps, thresholds, and uneven surfaces.

Parameter	Typical Range	Suitable Scenario
Minimum Ground Clearance	30-50mm	Indoor smooth floors
Increased Ground Clearance	50-80mm	Outdoor or warehouses with ramps and thresholds

Selection Recommendations:

Indoor smooth floors: 30-40mm ground clearance is sufficient
Outdoor or with ramps/thresholds: Recommended ≥50mm ground clearance

The CBDE, with its off-road tires and reinforced chassis configuration, effectively improves ground clearance and maneuverability for outdoor applications.

5. Weight Parameters

Weight parameters affect equipment maneuverability, floor loading requirements, and transport costs.

Parameter	Typical Range	Description
Self Weight (with battery)	550-850kg	Lead-acid batteries heavier; lithium batteries lighter
Axle Load (full load)	Front/rear axle distribution	Affects floor loading pressure
Ground Pressure (full load)	Approx. 5-8 kg/cm²	Affects floor loading requirements

Selection Recommendations:

Lead-acid battery versions have higher self-weight, suitable for low-frequency operations
Lithium battery versions are lighter, suitable for high-frequency operations and multi-floor warehouses (limited floor load capacity)

6. Quick Reference Specification Table

Parameter	CBDE Typical Value	Industry Typical Range
Overall Length (with forks)	~1700mm	1600-2000mm
Overall Width	~750mm	680-850mm
Overall Height (handle upright)	~1350mm	1100-1450mm
Turning Radius	~1500mm	1400-1800mm
Fork Length	1150mm (customizable)	1000-1500mm
Fork Outer Width	540mm (customizable)	540-685mm
Minimum Ground Clearance	~35mm	30-50mm
Self Weight (with lithium battery)	~620kg	550-850kg

7. Summary

When selecting a 2-ton electric pallet truck, overall dimensions, fork specifications, turning radius, ground clearance, and weight parameters are the five core consideration dimensions.

Selection Key Point	Core Recommendation
Aisle Width	Calculate minimum aisle width based on turning radius + fork length + safety margin
Pallet Compatibility	Standard pallets = standard forks; non-standard pallets = custom forks
Operating Environment	Indoor = standard ground clearance; outdoor = increased ground clearance
Load Requirement	2-ton rated load with 20% margin recommended

For more detailed specifications or customization solutions, please contact Diding Lift. This professional manufacturer has over 12 years of industry experience (12+ Years‘ Experience) and a 65,000 m² factory (65,000 m² Factory & Workshop) . All products comply with European EN standards and ISO, CE, and EU certifications (Europe EN Standard & ISO, CE, EU Certificates) , and support ODM/OEM customization including non-standard configurations such as fork length and width.

Need specification assessment, customization solutions, or equipment pricing? Send an email to sales@didinglift.com – our professional team will provide one-on-one support within 24 hours.
