The Complete Maintenance Guide for Electric Pallet Stackers

In the long-term use of an Electric Pallet Stacker, maintenance determines the equipment's service life and total cost of ownership. Taking Diding Lift's 2T Electric Walkie Pallet Stacker CDDA as an example, its 2000kg rated capacity, 1494mm turning radius, 3500mm maximum lift height, and AC motor system form the core capabilities, while configurations such as the 24V/82Ah maintenance-free gel battery, built-in charger design, and lithium battery upgrade compatibility directly affect the complexity and frequency of maintenance work. This guide provides a practical maintenance framework across four dimensions: maintenance cycles, key systems, common pitfalls, and spare parts management.

1. Maintenance Cycles: From Daily to Annual

Scientific maintenance requires a tiered system. The following is the recommended maintenance cycle and task list for the CDDA20.

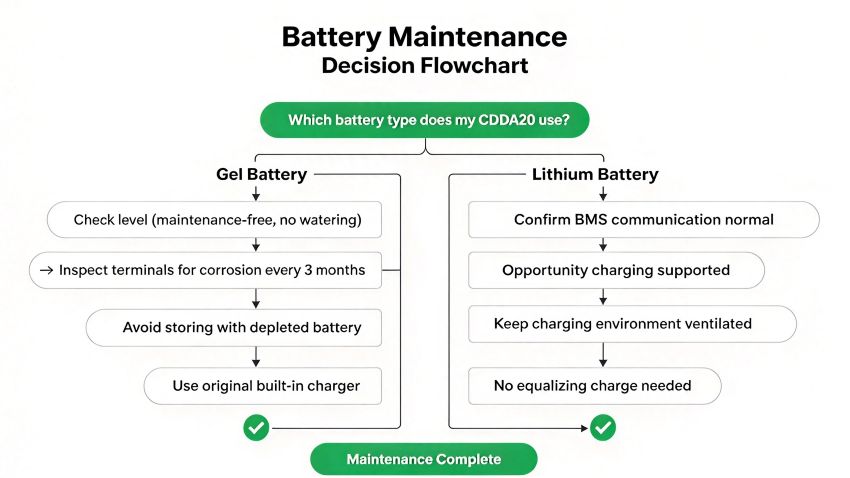

2. Battery Maintenance: Gel vs Lithium Differences

The battery is the power core of an electric pallet stacker, and its maintenance varies by battery type.

2.1 Maintenance Points for Maintenance-Free Gel Battery

The CDDA20 comes standard with a 24V/82Ah maintenance-free gel battery, with relatively simple maintenance:

Daily Use: Charge promptly after each shift; avoid storing with a depleted battery. During long-term idleness, recharge every 1-2 months to maintain activity.

Charging Specifications: Use the original charger; avoid overcharging or undercharging. The CDDA20's built-in charger design allows recharging via standard outlets during breaks—no dedicated charging room required.

Regular Maintenance: Although gel batteries require no water topping, check battery terminals for corrosion every 3 months and keep the battery surface clean and dry.

2.2 Maintenance Differences After Lithium Upgrade

If the optional lithium battery upgrade / LI-ION battery compatibility is selected, maintenance work is further simplified:

• No Equalizing Charge Needed: Lithium batteries have a built-in BMS (Battery Management System) that automatically manages charging and discharging

• Opportunity Charging Supported: Can be charged at any time without memory effect

• Faster Charging: Fully charged in 1-2 hours, suitable for multi-shift operations

Key Tip: The focus of lithium battery maintenance is keeping BMS communication normal and ensuring a well-ventilated charging environment.

3. Motor and Hydraulic System Maintenance

The motor and hydraulic system are the core of lifting and travel—maintenance quality directly affects operational efficiency and safety.

3.1 Motor Maintenance

The CDDA20 is equipped with a 0.9kW AC drive motor and a 2.2kW AC lifting motor. The maintenance advantage of AC motors is their brushless design, fundamentally eliminating carbon brush replacement.

Regular Checks: Every three months, use a 250V megohmmeter to measure the motor's cold insulation resistance. If below 0.5MΩ, drying treatment is required. Also check for dust on the motor surface to maintain good heat dissipation.

3.2 Hydraulic System Maintenance

Hydraulic Oil Management: Regularly check the hydraulic oil tank level (should be between scale marks). If below the lower limit, top up with the same type of hydraulic oil. Keep hydraulic oil clean; annual replacement is recommended.

Leak Inspection: Regularly visually inspect hydraulic hoses and fittings for leaks. The CDDA20 uses a Bucher hydraulic system, whose pump provides stable power for heavy-duty lifting, but seal condition requires regular inspection.

Lubrication: Regularly lubricate mast rails, chains, rollers, and bearings to reduce dry friction wear.

4. Structural Components and Safety Device Inspection

4.1 Structural Component Inspection

The CDDA20 adopts a solid structural design with high stability, but long-term heavy-load operations still require regular checks:

• Mast and Forks: Check for deformation or weld cracks

• Legs: Check for bending or wear

• Auxiliary Wheels: Check adjustable auxiliary wheel wear and adjustment function

4.2 Safety Device Testing

5. Common Maintenance Pitfalls

6. Spare Parts Management and Long-Term Maintenance

Establish Maintenance Records: Create a maintenance log for each machine, recording maintenance time, content, replaced parts, and abnormalities—helping analyze fault trends and optimize maintenance plans.

Standardize Operator Training: Train operators to strictly perform daily pre-shift inspections and develop habits of smooth operation, avoiding overloading and abrupt starts/stops.

Seek Professional Support: For annual in-depth maintenance or complex faults, contact the manufacturer or its authorized service provider.

Diding Lift has 12 years of experience and a 65,000 m² factory & workshop, with products complying with EN 12895:2015 and EN ISO 3691-1:2015 European standards, certified to ISO 9001:2015 quality management system and CE safety certification, and supports ODM/OEM cooperation & customization. Its 2T Electric Walkie Pallet Stacker CDDA, with its maintenance-free gel battery, AC motors, and Bucher hydraulic system, reduces maintenance complexity and provides a mature maintenance solution for narrow-aisle stacking applications.

For customised maintenance recommendations tailored to your operations, please send an email to sales@didinglift.com, and our professional team will provide one-on-one support.

References

1. Diding Lift. (2026). CDDA20 2T Electric Pallet Stacker Technical Parameters.

2. Linde Material Handling. (2025). Forklift Maintenance Schedule: Daily, Weekly, Monthly Checklist.

3. Toyota Material Handling. (2025). Electric Forklift Battery Maintenance Guide.

4. EN ISO 3691-1:2015. Industrial trucks – Safety requirements and verification.
