Straddle vs Reach vs Counterbalanced Pallet Stacker: Comparison

In warehousing and logistics operations, choosing the right type of stacking equipment is a core decision determining operational efficiency, storage density, and return on investment. The Electric Pallet Stacker, Reach Truck, and Counterbalance Forklift are the three most common types of stacking equipment, with significant differences in structural design, aisle adaptability, and operational scenarios. This guide provides a systematic comparison from a practical application perspective—with a particular focus on the Straddle Electric Pallet Stacker as a representative example of narrow-aisle advantages—to help you make a more precise selection decision.

1. Basic Definitions of the Three Types

2. Core Differences at a Glance

3. Straddle Stacker: The Flexible Choice for Narrow-Aisle Short-Distance Stacking

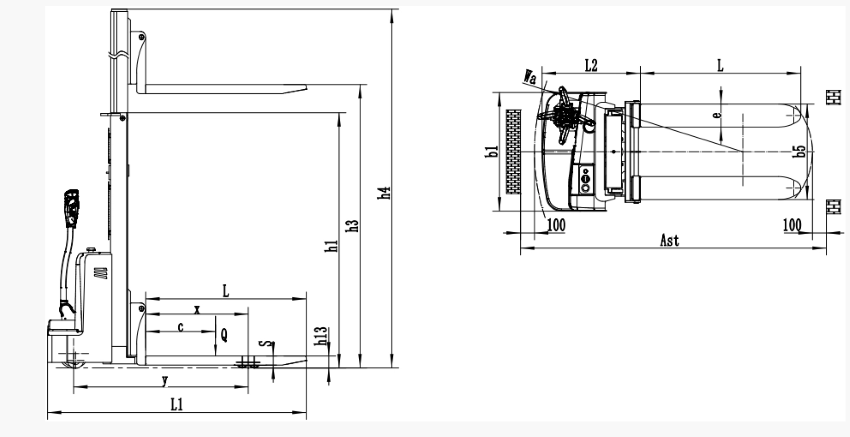

The straddle stacker is the most common solution for warehouses with high space utilization requirements. The 2T Electric Walkie Pallet Stacker CDDA is a straddle-type stacker—equipped with outriggers that straddle the pallet during operation, relying on leg support for stable stacking. Its compact structure and turning radius of only 1494mm enable operation in 2300-2400mm aisles, significantly improving storage density.

Core Advantages:

• Extremely small turning radius: 1494mm turning radius excels in its class, suitable for narrow aisles.

• Controllable cost: Purchase and maintenance costs are far lower than reach trucks or counterbalance types.

• Operator-friendly: Walkie design requires no professional forklift license, low training cost.

Main Limitations:

• Limited lift height: Typically does not exceed 4000mm.

• Single-face pallets primarily: Double-face pallets require wide-leg straddle or counterbalance types.

• Limited transport distance: Walkie operator fatigue is higher, suitable for short-distance operations.

4. Reach Truck: The Efficiency Choice for High-Bay Warehousing

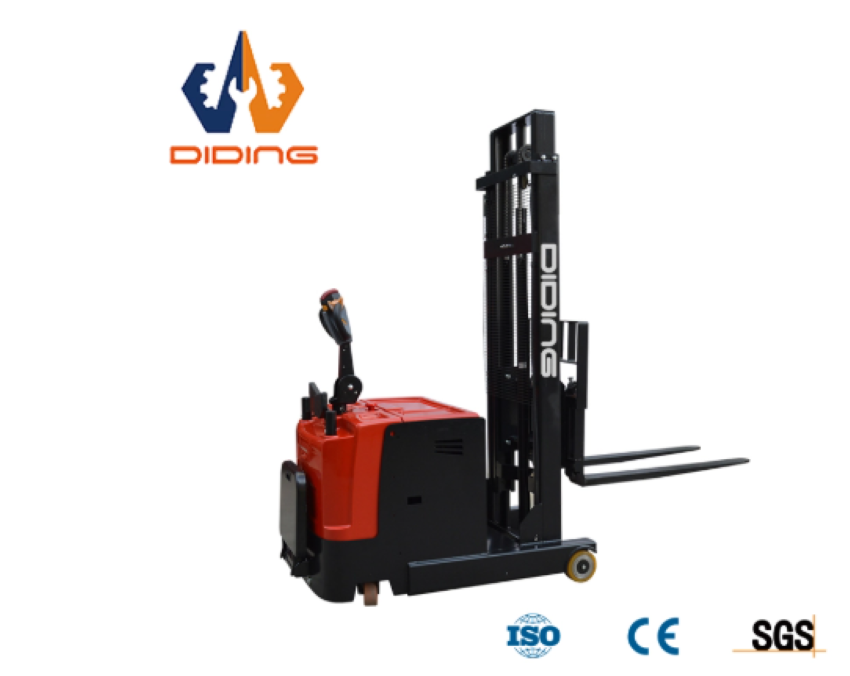

The reach truck is the classic equipment for high-bay warehouses. Its mast or forks can extend forward to pick loads, then retract into the chassis for transport, achieving ultra-high lift height while maintaining a compact body.

Core Advantages:

• Ultra-high lift height: Up to 10000mm+, adapting to high-bay racking.

• Narrow-aisle adaptability: Although turning radius is slightly larger than straddle, it is still far superior to counterbalance.

• Double-face pallet compatible: Outrigger-less design can handle double-face pallets.

Main Limitations:

• High purchase cost: 150,000-300,000 RMB, approximately 2-3 times that of straddle.

• Higher operator requirements: Requires professional training and typically a forklift license.

• Higher maintenance cost: Mast extension mechanisms increase maintenance complexity.

5. Counterbalance Stacker/Forklift: The Versatile Heavy-Duty Choice

The counterbalance stacker (commonly referred to as a forklift) is the most widely applicable material handling equipment, suitable for both indoor and outdoor scenarios.

Core Advantages:

• Wide load range: 1.5-5 tons and above.

• No pallet restrictions: Can handle single-face, double-face, box-type, and various cargo types.

• Outdoor suitable: Suitable for uneven surface operations.

Main Limitations:

• High aisle width requirement: Large turning radius typically requires over 3.5-meter aisles.

• High purchase and operating costs: High initial investment, complex maintenance.

• Operator certification required: Requires professional forklift license.

6. Selection Decision Guide

7. Conclusion and Action Recommendations

Straddle stackers, reach trucks, and counterbalance stackers correspond to different warehousing strategies: straddle pursues space efficiency and cost balance, reach pursues maximization of vertical space utilization, and counterbalance pursues operational versatility and heavy-load capability. For most indoor narrow-aisle, short-distance, single-face pallet stacking scenarios, the straddle stacker is a proven, mature solution.

Diding Lift has 12 years of experience and a 65,000 m² factory & workshop, with products holding Europe EN & ISO, CE, EU Certificates, and supports ODM/OEM cooperation & customization. Its 2T Electric Walkie Pallet Stacker CDDA, featuring a 1494mm turning radius, 2000kg load capacity, and 3500mm lift height, is a mature choice for narrow-aisle straddle stacking applications.

If you need detailed selection recommendations and customized solutions tailored to your specific operating conditions, please send an email to sales@didinglift.com, and our professional team will provide one-on-one support.
