Electric Pallet Stacker Hydraulic System Maintenance

In the failure composition of an Electric Pallet Stacker, hydraulic system issues account for a significant proportion. Weak lifting, fork drift-down, abnormal noise, and oil leaks—most of these symptoms stem from hydraulic oil contamination, seal aging, or pressure valve misadjustment. Taking Diding Lift's 2T Electric Walkie Pallet Stacker CDDA as an example, its Bucher hydraulic system provides a stable power foundation for heavy-duty lifting, but even the most reliable system requires proper maintenance. This guide outlines practical hydraulic maintenance points across four dimensions: hydraulic oil management, contamination control, seal and hose inspection, and pressure system maintenance.

1. Hydraulic Oil Management: Level, Quality, and Replacement Interval

Hydraulic oil is the "blood" of the hydraulic system—its condition directly determines system lifespan.

1.1 Oil Level Check and Top-Up

Check the hydraulic oil tank level before each shift, ensuring it is within the sight glass scale range. Low oil level causes the pump to draw in air, resulting in cavitation that manifests as weak lifting or abnormal noise. Use the specified hydraulic oil type when topping up; mixing different grades can degrade oil performance.

1.2 Oil Quality Assessment and Replacement

Hydraulic oil should be replaced immediately if:

• Color darkens or blackens: oil oxidation

• Cloudy or emulsified: moisture ingress

• Foaming: air ingress or seal failure

Normal hydraulic oil replacement interval is typically annually or every 1,500 operating hours, whichever comes first. Clean the area around the tank before replacement to prevent contaminants from entering the oil circuit.

1.3 Low-Temperature Adaptation

In low-temperature environments, use low-temperature hydraulic oil to prevent excessive viscosity that slows lifting/lowering. If the forks descend too slowly, low oil temperature causing increased viscosity may be the cause—warming up usually restores normal operation.

2. Contamination Control: The Core of Hydraulic Maintenance

Among hydraulic system failures, particle contamination is the most insidious and destructive factor. Microscopic particles jam valve spools and abrade pump and cylinder seals—the system "grinding itself."

2.1 Cleanliness Standard: ISO 4406

Hydraulic oil cleanliness is typically expressed using the ISO 4406 code, formatted as a three-digit code such as "/18/16/13", corresponding to particle levels for >4μm, >6μm, and >14μm per milliliter of oil. Higher numbers indicate greater contamination. Hydraulic system manufacturers typically specify a target cleanliness level as a prerequisite for warranty and proper function.

2.2 Filter Maintenance

Suction and return filters should be replaced at scheduled intervals. Clogged filters increase pump suction resistance and reduce flow, manifesting as slow lifting. Filters must never be cleaned and reused—cleaning cannot remove particles embedded in the filter media and may reintroduce trapped contaminants into the system.

2.3 Contamination Source Control

• Filter oil during filling: New oil is not absolutely clean; fill through a filter

• Keep tank breather clean: Prevent dust from entering through the breather

• Cap openings during repairs: Cap hoses immediately after disconnection

3. Seal and Hose Inspection

3.1 External Leak Inspection

Visually inspect hydraulic hoses, fittings, and cylinder surfaces for oil seepage daily. Loose fittings can be tightened; cracked or bulging hoses require replacement; hardened, aged seals are a high-frequency leak cause—do not simply tighten fittings when seepage is found; aged seals should be replaced directly.

3.2 Internal Leak Diagnosis

If the forks slowly descend on their own under load, or lifting is noticeably weak with no external leak, the cylinder piston seal may be leaking internally. High-pressure oil returns from the high-pressure chamber to the low-pressure chamber inside the cylinder, preventing pressure from being maintained. The cylinder must be disassembled to replace seals.

3.3 Cylinder Rod Protection

The cylinder rod surface must remain smooth—any scratches or pits accelerate seal wear. If forks are left suspended at height for extended periods, the exposed piston rod may rust in humid environments, causing descent jamming. Lower forks to the lowest position after each shift to minimize rod exposure.

4. Pressure System and Valve Maintenance

4.1 Relief Valve Inspection

The relief valve is the hydraulic system's pressure protection device and a high-frequency failure point for "weak lifting." Sludge jamming the valve spool or weakened spring force causes the relief valve to open and relieve pressure prematurely, preventing the system from building sufficient pressure. During maintenance, disassemble and clean the valve body, and confirm the pressure setting is within the rated range.

4.2 Lowering Valve and Check Valve

Inability to lower forks or abnormal descent speed may be related to a stuck lowering valve or poor check valve sealing. Contaminants in the oil may prevent the valve spool from closing fully, manifesting as automatic fork descent when not commanded.

4.3 Pressure Testing

During annual maintenance, use a standard pressure gauge to test system working pressure and confirm it is within the equipment's specified rated range. Low pressure causes insufficient load capacity; excessive pressure may damage hoses and seals.

5. Common Hydraulic Faults and Troubleshooting Direction

6. Conclusion and Action Recommendations

Hydraulic system maintenance for an Electric Pallet Stacker comes down to "clean oil, good seals, accurate pressure." Hydraulic oil management is the foundation, contamination control is the key, and seal and valve maintenance is the safeguard. Incorporating these three tasks into routine and scheduled maintenance plans can significantly reduce the incidence of high-frequency faults such as weak lifting and automatic fork descent.

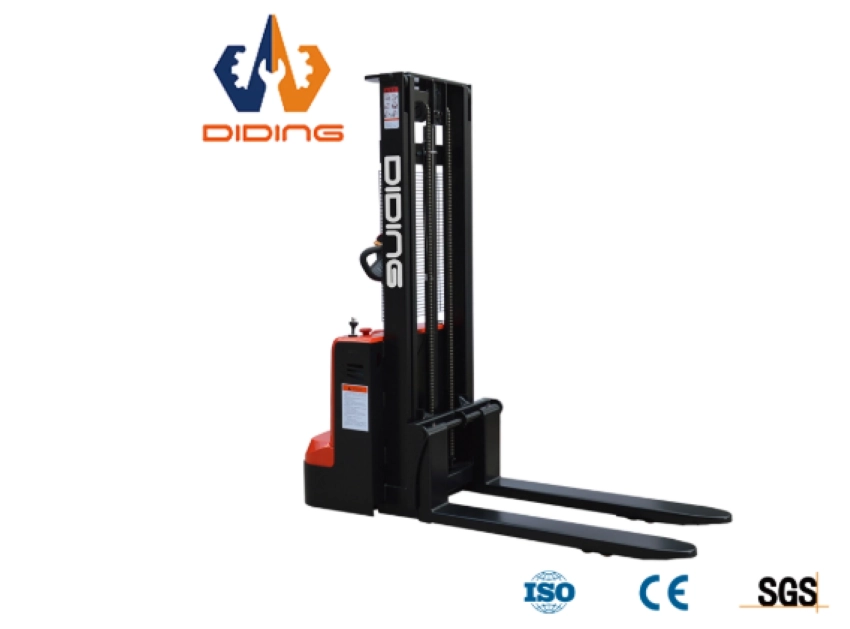

Diding Lift has 12 years of experience and a 65,000 m² factory & workshop, with products complying with EN 12895:2015 and EN ISO 3691-1:2015 European standards, certified to ISO 9001:2015 quality management system and CE safety certification, and supports ODM/OEM cooperation & customization. Its 2T Electric Walkie Pallet Stacker CDDA is equipped with a Bucher hydraulic system, providing a reliable hydraulic foundation for narrow-aisle heavy-duty lifting applications.

For a hydraulic maintenance plan tailored to your operations or detailed CDDA hydraulic specifications, please send an email to sales@didinglift.com, and our professional team will provide one-on-one support.
