How to Operate an Electric Pallet Truck: Step-by-Step Guide

From “Get On and Go” to “Standardized Operation” – Every Step Has a Standard to Follow

Operating an electric pallet truck seems simple – forward, reverse, lift, lower. But it is precisely this “looks simple” impression that leads many operators to overlook standard procedures, planting hidden safety hazards. According to OSHA standards, electric pallet trucks are Powered Industrial Trucks (Class III PIT). Improper operation not only endangers personal safety but can also cause cargo damage and equipment failure.

This article provides a complete step-by-step operation guide for Electric Pallet Trucks, covering five core stages: pre-operation inspection, startup and testing, loading operations, safe travel, and parking and shutdown, using Diding Lift‘s 2T Stand On Pallet Truck Off Road CBDE as an example to illustrate the standard operating procedures for stand-on electric pallet trucks.

1. Pre-Operation Inspection: The Required Course Before Starting

1.1 Battery and Electrical Inspection

• Confirm sufficient charge (recommended above 20%)

• Check battery terminals for corrosion or looseness

• Check power cable for damage or aging

CBDE Inspection Points: Its built-in charger design simplifies charging operations, but the charging port must still be kept dry and clean. The optional lithium battery upgrade version requires confirming BMS self-test passes.

1.2 Mechanical and Structural Inspection

CBDE Inspection Points: Its solid structural design with high stability has been specifically optimized for 2-ton heavy loads, but forks and frame still require visual inspection for cracks or deformation. Off-road tires require special inspection for embedded stones or cuts in outdoor conditions.

1.3 Safety Device Inspection

CBDE Inspection Points: Its emergency reverse button is a core safety device and should be tested every shift to confirm functionality.

2. Startup and Functional Testing: Confirm Equipment Status

2.1 Startup Procedure

1. Power on: Pull out the main power switch and turn on the power lock

2. Check the dashboard: Look for any error codes or fault warnings

3. Test travel control: Test forward and reverse at slow speed in a clear area

4. Test braking: Confirm immediate brake response when handle is released

5. Test lift/lower functions: Test with unloaded forks

6. Test emergency reverse button: Confirm auto-stop and reverse when obstacle is detected

2.2 Testing Key Points

• All operations should be conducted in an open area, ensuring no people or obstacles nearby

• If any abnormality is found (abnormal noise, sticking, slow response), stop using immediately and report for repair

• After testing confirms normal equipment status, it can be put into operation

3. Loading Operations: The Core of Standardized Operation

3.1 Verify Rated Load Capacity

• Check the data plate for rated capacity (e.g., CBDE is 2000kg)

• Never exceed the rated load – even “occasional overloading” can permanently damage the hydraulic system and frame

• Reserve a 10%-20% safety margin

3.2 Fork Insertion Technique

1. Approach straight on – never at an angle, as this risks damaging the pallet

2. Lower forks to their lowest position (approximately 50-75mm from the ground) before insertion

3. Full insertion – slide forks until the fork heels are flush against the pallet face

4. Center the load – ensure the load is centered on the forks with balanced weight on both sides

3.3 Lift Height Control

• Lift only enough to clear the floor (100-150mm) for travel

• Never travel with raised forks – this significantly increases tip-over risk

4. Safe Travel: Speed, Direction, and Visibility

4.1 Speed and Clearance Rules

4.2 Turning Operations

• Slow down before turning – avoid sudden turns

• Be aware of turning radius to avoid striking nearby equipment

• CBDE has a turning radius of only 1.5 meters, offering excellent maneuverability in narrow aisles

4.3 Slope Operations

CBDE Slope Protection: Its emergency reverse button and electromagnetic brake system automatically engage braking when the handle is released on slopes, preventing rollback.

5. Parking and Shutdown: The Final Step

5.1 After Operation

1. Park in designated area, engage parking brake

2. Lower forks to the lowest position

3. Turn off the power switch

4. Wipe down control handle and battery surface to prevent moisture damage

5.2 Charging Precautions

• Charge in a well-ventilated, dry designated area

• Use the dedicated charger – do not mix different models

• Disconnect promptly after full charge – avoid overcharging

CBDE Charging Points: Its built-in charger design eliminates the need for a dedicated charging room with plug-and-play convenience, but the charging port still needs to be kept clean and dry.

6. Summary

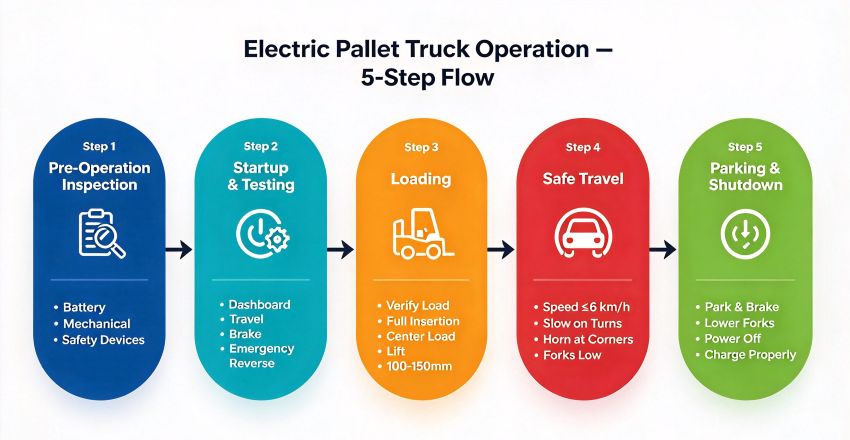

Standardized operation of an electric pallet truck requires five core steps: pre-operation inspection, startup and testing, loading operations, safe travel, and parking and shutdown. Each step has clear standards and operational points, and skipping any step can plant hidden safety hazards.

For companies using 2T Stand On Pallet Truck Off Road CBDE, it is recommended to add model-specific training on top of the standard operating procedures – particularly for the correct use of the emergency reverse button, built-in charger, and optional lithium battery upgrade.

For more safety operation guidelines or training materials, please contact Diding Lift. This professional manufacturer has over 12 years of industry experience and a 65,000 m² factory . All products comply with European EN standards and ISO, CE, and EU certifications.

Need safety training materials, product selection, or equipment pricing? Send an email to sales@didinglift.com – our professional team will provide one-on-one support within 24 hours.

References

1. Occupational Safety and Health Administration (OSHA). (2026). 29 CFR 1910.178 Powered Industrial Trucks – Operator Training and Inspection Requirements. OSHA.gov.

2. Xilin. (2026). How to Safely Operate an Electric Pallet Truck Step by Step?. Xilin Material Handling.

3. Hangcha Europe. (n.d.). Electric Pallet Truck Operation and Maintenance Manual. Hangcha Europe.

4. Lifting Gear Direct. (n.d.). Electric Pallet Truck Service Manual. Lifting Gear Direct.

5. China National Standardization Administration. (2023). GB/T 36507-2023 Industrial Trucks – Safety Rules for Application, Operation and Maintenance.
