How to Choose a 2 Ton Electric Pallet Stacker

In warehousing and logistics operations, the Electric Pallet Stacker is a critical piece of equipment bridging manual handling and forklift operations. For 2-ton load capacity requirements, while numerous options exist in the market, choosing the right model requires a systematic approach. This guide covers four core dimensions—load capacity, lift height, aisle width, and power system—to provide a practical selection framework.

1. First, Confirm Load Capacity: 2 Tons Is Just the Starting Point

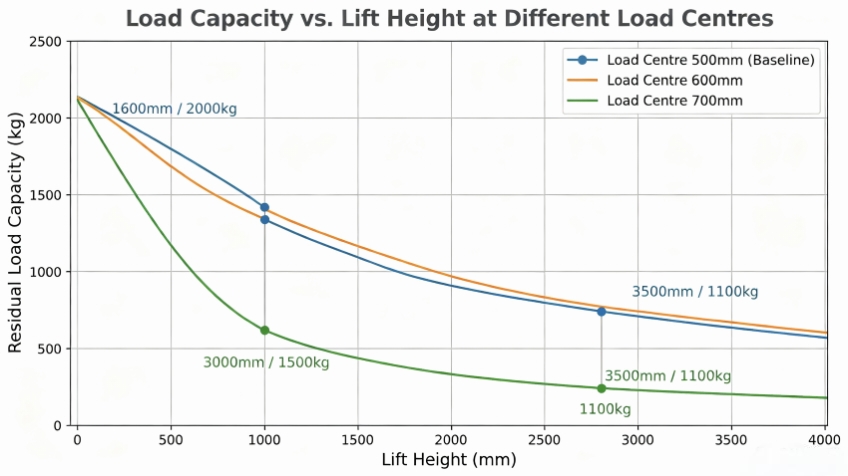

Many buyers assume a "2-ton stacker" can consistently handle 2-ton loads, but the actual selection process is more complex. Rated capacity varies with load centre position, fork length, and lift height.

Product Reference: The 2T Electric Walkie Pallet Stacker CDDA has a rated capacity of 2000kg with a load centre of 500mm. At a lift height of 3500mm, residual capacity is 1100kg. This means if you need to stack loads close to 2 tons at height, this model's high-lift capacity may be insufficient. Always verify actual load capacity against your highest storage level.

2. Lift Height and Mast Configuration

Lift height determines whether the equipment fits your racking system. Different mast types correspond to varying lift capabilities and operational flexibility.

Product Reference: CDDA offers simplex and duplex mast options with a maximum lift height of 3500mm. For lift heights exceeding 3500mm, other models or brands with triplex masts would be required.

3. Aisle Width and Turning Radius: The Most Overlooked Key Parameter

Many equipment purchases fail because the machine "fits in the warehouse but can't make the turn." Turning radius and aisle width are the core metrics determining whether equipment can operate smoothly in your facility.

Selection Advice: Before finalizing your choice, measure your warehouse's narrowest aisle and compare it against the equipment's required aisle width (Ast value). CDDA's 1494mm turning radius makes it well-suited for narrow-aisle warehouse environments.

4. Battery and Powertrain: Determinants of Long-Term Operating Costs

The battery is the core consumable of an electric stacker, directly impacting downtime costs and maintenance expenses.

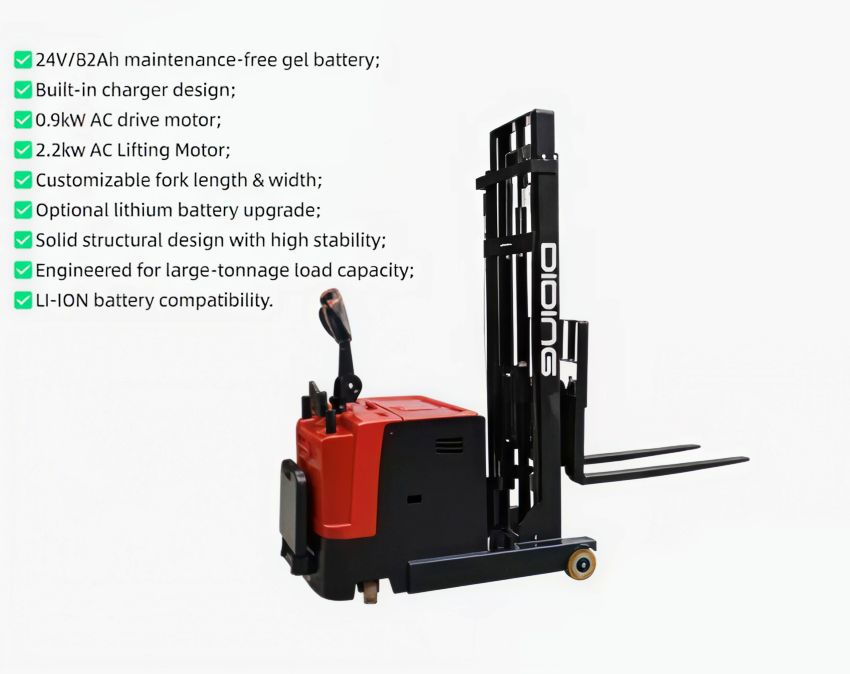

Product Reference: CDDA is equipped with a 0.9kW AC drive motor and a 2.2kW AC lifting motor, featuring a 24V/82Ah maintenance-free gel battery with support for lithium battery upgrade / LI-ION battery compatibility. The fully electric design (electric travel + electric lifting) offers superior performance compared to semi-electric models for high-intensity operations. AC motors deliver higher efficiency and lower maintenance compared to DC motors, making them ideal for frequent start-stop stacking cycles.

5. Selection Checklist

6. Conclusion and Action Recommendations

The core logic for selecting a 2-ton Electric Pallet Stacker is: survey your operating conditions first, match parameters second, calculate total cost last. Be sure to clarify your actual load requirement (including high-lift margin) , maximum lift height, minimum aisle width, and daily operating hours before matching against equipment specifications.

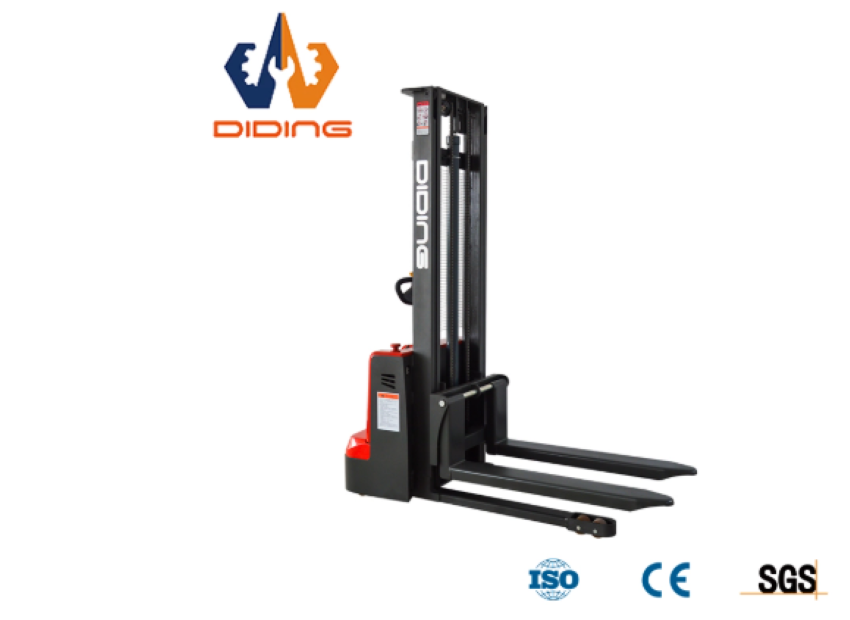

Diding Lift has 12 years of experience and a 65,000 m² factory & workshop, with products holding Europe EN & ISO, CE, EU Certificates, and supports ODM/OEM cooperation & customization. Its 2T Electric Walkie Pallet Stacker CDDA combines a 1494mm minimum turning radius, an AC motor system, and multiple mast height options, making it a mature choice for 2-ton narrow-aisle stacking applications.

If you need detailed selection recommendations tailored to your specific operating conditions, please send an email to sales@didinglift.com, and our professional team will provide one-on-one support.

References:

1.iLift. (2025). When to Use an Electric Stacker vs. a Forklift.

2.PARRS. (2026). Electric Stackers & Lifters: A Practical Guide for Business Buyers.

3.China Procurement and Bidding Network. (2026). Professional Selection Guide: Key Parameters for 2-Ton Electric Stackers.

4.Jungheinrich PROFISHOP. (n.d.). Electric pallet stackers buying guide.
