Electric Pallet Truck Turning Radius: How Much Space Do You Need?

Understanding This Key Parameter to Optimize Your Warehouse Layout

In warehouse planning, aisle width is a crucial decision-making factor. Every extra meter of aisle means a corresponding reduction in storage space. One of the core parameters that determine aisle width is the equipment's turning radius.

For an Electric Pallet Truck, the turning radius directly determines whether it can operate flexibly in your warehouse. This article will explain in detail the concept of turning radius, its influencing factors, and, through comparison, help you understand the space requirements of different equipment.

1. What Is Turning Radius?

Turning radius refers to the radius of the smallest circle traced by the outer wheel of a pallet truck when turning. Simply put, it determines how much space the equipment needs to complete a U-turn or turn around.

Key conclusion: The smaller the turning radius, the higher the flexibility of the equipment in narrow aisles.

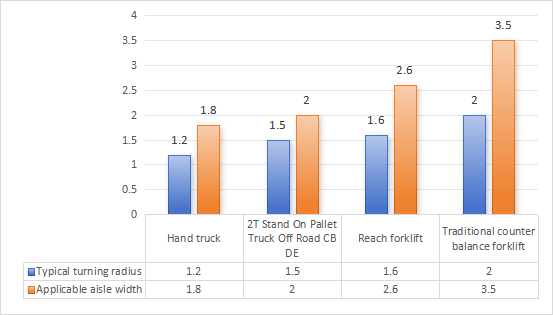

Different types of pallet trucks have significantly different turning radii:

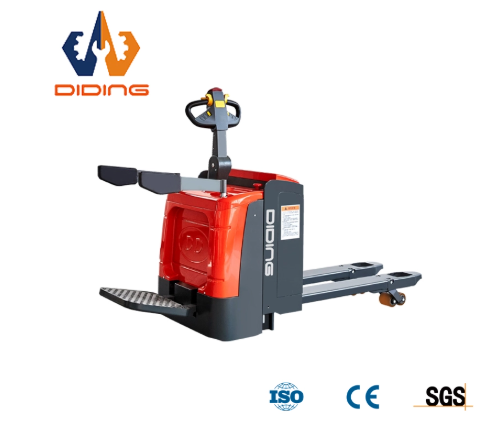

Take Diding Lift's 2T Stand On Pallet Truck Off Road CBDE as an example. Its turning radius is only approximately 1.5 meters, allowing flexible operation in aisles 2.0-2.5 meters wide, significantly improving warehouse space utilization. The CBDE's solid structural design with high stability ensures stability during frequent turning, while its built-in charger eliminates the need for a dedicated charging room, further saving warehouse space.

2. Why Is Turning Radius Important?

2.1 Directly Affects Warehouse Storage Density

The wider the aisle, the less storage space. If the equipment's turning radius is too large, you are forced to reserve wider aisles, which directly reduces the number of racks.

Example with a 1,000 m² warehouse:

* Using a traditional forklift (aisle width 3.8 m): space utilization is approximately 40%

* Using the CBDE (aisle width 2.3 m): space utilization can increase to over 60%

This means that choosing equipment with a small turning radius can increase effective storage space by approximately 200 m² without expanding the warehouse area.

2.2 Affects Operational Efficiency

Equipment with a large turning radius needs multiple adjustments in narrow aisles, increasing operation time. Equipment with a small turning radius can complete a turn in one go, reducing operational steps and improving handling efficiency.

2.3 Reduces Damage to Goods and Equipment

In tight spaces, a large turning radius increases the risk of collision with racks. Equipment with a small turning radius can control its path more precisely, reducing the chance of cargo damage and equipment repair costs.

3. Factors Affecting Turning Radius

The CBDE achieves a turning radius of only approximately 1.5 meters by optimizing its wheelbase and steering angle. Its customizable fork length & width also allows for adaptation to pallet dimensions and aisle widths, further improving maneuverability in narrow aisles.

4. How to Measure and Assess Turning Radius?

4.1 Manufacturer Specifications

The most direct method is to check the turning radius parameter in the equipment manual. The CBDE's turning radius is clearly specified as 1494 mm.

4.2 On-Site Testing

Before purchasing, it is recommended to test the equipment in your actual warehouse aisles to observe whether it can complete turns smoothly.

4.3 Calculation Estimation

You can use the following formula to estimate the required aisle width:

Required Aisle Width ≈ Turning Radius + Fork Length + Safety Margin (approx. 300 mm)

For example, with the CBDE's turning radius of 1.5 m and a fork length of 1.15 m, the required aisle width is approximately:

1.5 + 1.15 + 0.3 = approximately 2.95 m

Note: This is a theoretical estimation. The actual width required also depends on the operation method and cargo dimensions.

5. Selection Guide

6. Summary

Turning radius is a key parameter affecting warehouse space utilization and operational efficiency. Choosing an Electric Pallet Truck with a small turning radius, such as the 2T Stand On Pallet Truck Off Road CBDE, allows you to achieve higher storage density and smoother operational flow within limited warehouse space.

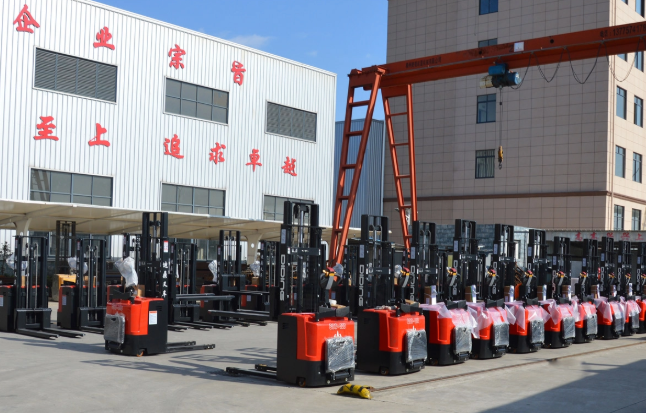

If you are concerned about your warehouse aisle width, or want to learn more about the CBDE's maneuverability under your specific working conditions, please contact Diding Lift. This professional manufacturer has over 12 years of industry experience and a 65,000 m² factory. All products comply with European EN standards and ISO, CE, and EU certifications and can provide you with professional aisle adaptation advice and customization solutions. Additionally, the CBDE's emergency reverse button and optional lithium battery upgrade further enhance operational safety and convenience in confined spaces.

Need aisle assessment, product selection, or customization solutions? Send an email to sales@didinglift.com— our professional team will provide one-on-one support within 24 hours.
