Electric Pallet Truck Purchasing Guide: Key Factors to Consider

From “Buying a Truck” to “Buying the Right Solution” – A Complete Procurement Decision Framework

Electric pallet truck procurement appears to be a simple exercise of “selecting a model and comparing prices,” but it actually involves comprehensive trade-offs across working condition matching, load and dimensions, battery type, safety compliance, and supplier capability. A poorly selected piece of equipment can generate ongoing efficiency losses, repair expenses, and safety hazards throughout its service life.

This article systematically outlines the key factors to consider in electric pallet truck procurement, using Diding Lift‘s 2T Stand On Pallet Truck Off Road CBDE as an example to illustrate how procurement requirements translate into specific configuration decisions.

1. Working Condition Matching: Map First, Select Second

1.1 Aisle Width and Turning Radius

The first step in procurement is not reading spec sheets, but measuring your warehouse aisle widths. The turning radius of an electric pallet truck directly determines the minimum aisle width required. Industry data shows that standard electric pallet trucks typically have a turning radius of 1.3-1.6 meters, while stand-on models (such as the CBDE) are approximately 1.5 meters .

If aisle width is less than 2.5 meters, traditional forklifts cannot enter, making electric pallet trucks the more suitable choice. The CBDE’s turning radius is approximately 1.5 meters, allowing flexible operation in aisles 2.0-2.5 meters wide.

1.2 Ground Conditions and Tire Selection

Ground type determines tire configuration. Indoor epoxy floors suit polyurethane wheels; outdoor gravel and muddy surfaces require off-road tires. The CBDE’s off-road tires and reinforced chassis configuration enable it to handle both indoor smooth floors and outdoor uneven surfaces.

1.3 Operating Frequency and Operation Type

For single-shift, low-frequency operations, walkie models suffice; for multi-shift, long-distance, high-frequency operations, stand-on models offer clearer efficiency advantages. Industry data indicates that stand-on electric pallet trucks achieve loaded travel speeds of 5-6 km/h, significantly higher than the 3-4 km/h of walkie models .

2. Load and Forks: Match Pallets, Reserve Margin

2.1 Rated Load Selection Logic

Electric pallet truck load classes range from 1 ton to over 8 tons. Procurement should calculate total weight based on heaviest cargo weight + pallet weight + packaging weight, reserving a 10%-20% safety margin. The CBDE’s rated load is 2000kg, suitable for standard palletized goods.

2.2 Fork Dimension Matching

Industry standard fork lengths are typically 1150mm or 1220mm, with fork outer widths of 510mm or 690mm, fitting standard EUR pallets (1200×800mm) . The CBDE supports customizable fork length & width, allowing adjustment to actual pallet dimensions for non-standard working conditions.

3. Battery Type: The Ledger Must Be Balanced for Lead-Acid vs. Lithium

3.1 Application Boundaries of Lead-Acid

Lead-acid batteries have low upfront costs but require long charging times (8-12 hours), regular water topping maintenance, and have shorter cycle life. They suit single-shift, low-frequency, budget-sensitive indoor operations .

3.2 Long-Term Advantages of Lithium

Lithium batteries support 1-2 hour fast charging and opportunity charging, are maintenance-free, and achieve 4-5 times the cycle life of lead-acid. For multi-shift, high-frequency, cold storage, or outdoor operations, lithium’s total lifecycle cost is typically lower . The CBDE’s optional lithium battery upgrade features a smart BMS, and its built-in charger design eliminates the need for a dedicated charging room.

4. Safety Configuration: A Non-Negotiable Baseline

4.1 Core Safety Functions to Verify

Electric pallet trucks are Powered Industrial Trucks, and OSHA standards require operators to receive training and certification . The equipment’s own safety configuration is equally critical:

The CBDE comes standard with an emergency reverse button and electromagnetic brake system, providing baseline operational safety assurance.

4.2 Compliance Certifications

For export or premium markets, verify CE certification (EU Machinery Directive and EMC) and ISO 9001. Diding Lift products comply with European EN standards and ISO, CE, and EU certifications.

5. Supplier Capability: From “Quotation” to “Factory Audit”

5.1 Technical Strength and Manufacturing Capability

Reliable suppliers should be able to explain failure modes and design improvement logic, not just specifications. During a factory audit, observe whether production lines are genuinely operating, whether inspection records are dated the same day, and whether capacity matches the quotation. Diding Lift has a 65,000 m² factory (65,000 m² Factory & Workshop) and supports customer factory visits.

5.2 After-Sales and Parts Supply

Write service standards into the contract: response time, parts delivery lead time, and field engineer coverage. The CBDE’s solid structural design with high stability reduces failure probability, but after-sales response speed remains key to long-term user experience.

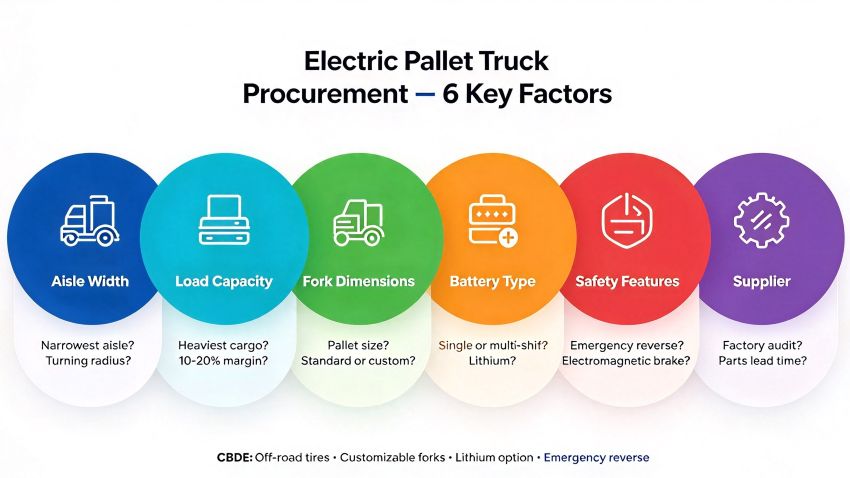

6. Procurement Decision Quick Reference

7. Summary

The core of electric pallet truck procurement is translating “warehouse conditions” into “equipment configuration.” Aisle width determines turning radius, cargo weight determines rated load, pallet dimensions determine fork specifications, shift frequency determines battery type, and safety requirements determine configuration level. The CBDE, with its off-road tires, customizable forks, optional lithium battery upgrade, and emergency reverse button, provides a reference sample for multi-scenario procurement.

For more procurement evaluation methods or product configuration details, please contact Diding Lift. This professional manufacturer has over 12 years of industry experience (12+ Years’ Experience) and a 65,000 m² factory, and can provide full support from working condition assessment to equipment delivery.

Need procurement assessment, product selection, or equipment pricing? Send an email to sales@didinglift.com – our professional team will provide one-on-one support within 24 hours.

References

1. Wikipedia. (2023). Pallet jack. https://en.wikipedia.org/wiki/Pallet_jack

2. Occupational Safety and Health Administration (OSHA). (2026). Powered Industrial Trucks - Forklifts - Overview. OSHA.gov. https://www.osha.gov/powered-industrial-trucks

3. International Organization for Standardization. (2011). ISO 3691-1:2011 Industrial trucks — Safety requirements and verification — Part 1: Self-propelled industrial trucks, other than driverless trucks, variable-reach trucks and burden-carrier trucks. ISO. https://www.iso.org/standard/52163.html

4. Baidu Baike. (2026). Electric Hydraulic Pallet Truck. baike.baidu.com.
