Electric Pallet Truck Charger Not Working? Troubleshooting Guide

From “No Response When Plugged In” to “Unable to Fully Charge” – Quickly Locate Charging Faults

In daily electric pallet truck operations, charger failure is one of the most common issues. When the charger fails to work properly, it not only affects operational progress but can also cause irreversible damage to the battery. This article provides a systematic charger troubleshooting guide across five dimensions: power input inspection, charger status diagnosis, battery connection detection, charging parameter verification, and environmental factor.

1. Power Input Inspection

The first step when a charger is not working is to confirm whether the power input is normal.

Common Causes: Socket power anomaly (approx. 30%), loose or damaged power cable (approx. 20%).

2. Charger Status Diagnosis

After confirming normal power input, check the charger‘s own status.

Reference Data:

• 24V system charger: Open-circuit output voltage approx. 28.8-29.4V

• 48V system charger: Open-circuit output voltage approx. 57.6-58.8V

If output voltage is abnormal, the charger‘s internal circuit is faulty and requires replacement or repair.

3. Battery Connection Detection

When charger output is normal but charging fails, the issue may be at the battery connection end.

Note: Many chargers have under-voltage protection – when battery voltage falls below a certain threshold (e.g., <1.75V per cell), the charger will refuse to start to prevent battery damage.

4. Charging Parameter Verification

Parameter matching between charger and battery is a prerequisite for normal charging.

5. Environmental Factor

Environmental conditions can also cause charger malfunction.

Temperature Compensation: In low-temperature environments, chargers should have temperature compensation to automatically adjust charging voltage based on battery temperature.

6. CBDE Charging System Features

Take Diding Lift‘s 2T Stand On Pallet Truck Off Road CBDE as an example. Its charging system features the following advantages that effectively reduce charging failure rates:

The CBDE‘s built-in charger design simplifies charging operations with plug-and-play convenience, effectively reducing charging failures caused by charger mismatch or damage to external chargers.

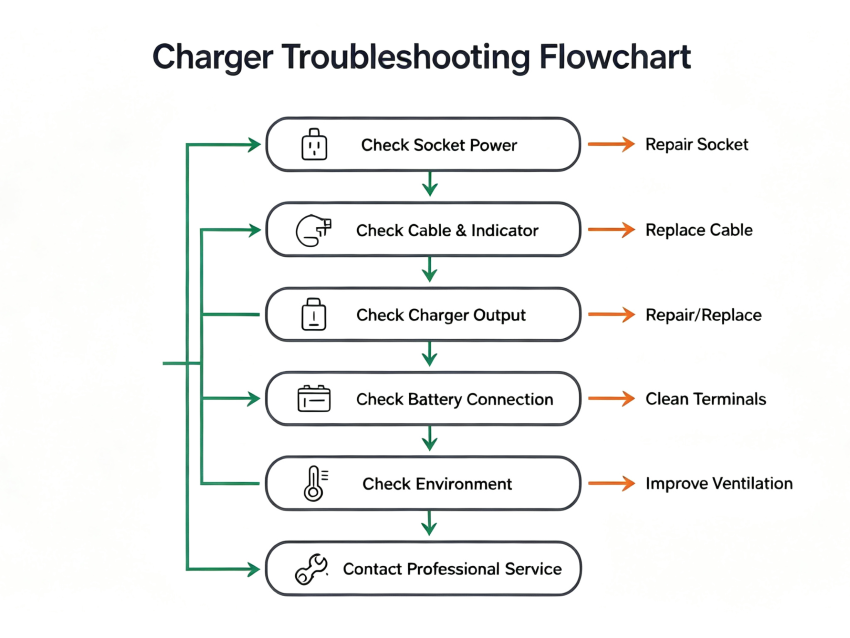

7. Troubleshooting Flowchart

text

Charger Not Working
↓
Check Socket Power → No Power → Repair Socket/Check Breaker
↓ Powered
Check Cable and Indicator → Abnormal → Replace Cable/Check Fuse
↓ Normal
Check Charger Output Voltage → Abnormal → Repair/Replace Charger
↓ Normal
Check Battery Connection and Voltage → Abnormal → Clean Terminals/Check Battery
↓ Normal
Check Temperature/Ventilation → Abnormal → Improve Environment
↓ Normal
Contact Professional Service

8. Summary

Electric pallet truck charger failure typically results from the following five major categories of causes:

Recommendation: When encountering charger faults, follow the sequence of “Input → Output → Connection → Parameters → Environment” for step-by-step troubleshooting – this covers over 90% of common issues.

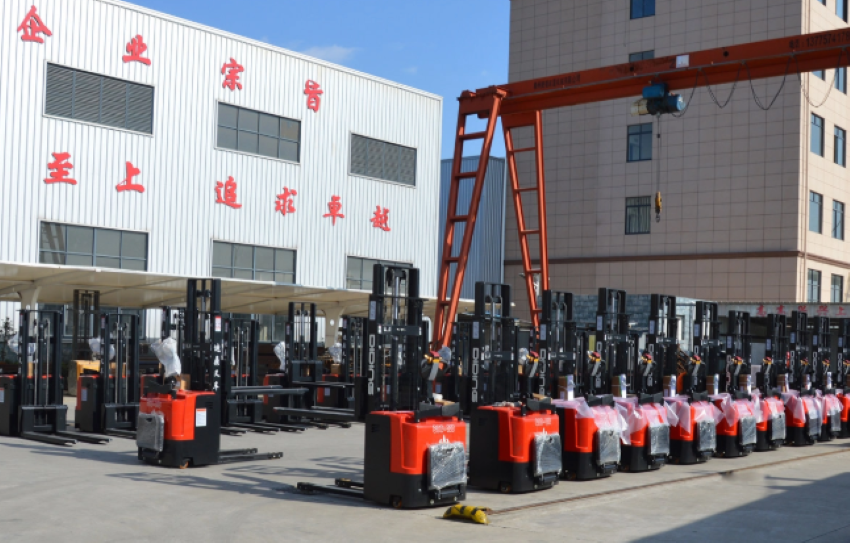

For more charging system configuration details or technical support, please contact Diding Lift. This professional manufacturer has over 12 years of industry experience and a 65,000 m² factory . All products comply with European EN standards and ISO, CE, and EU certifications .

Need charging fault diagnosis, technical support, or equipment pricing? Send an email to sales@didinglift.com – our professional team will provide one-on-one support within 24 hours.
