Diding CDDA 2 Ton Electric Walkie Pallet Stacker: Heavy-Duty Lifting

In the selection of an Electric Pallet Stacker, "heavy-duty lifting" means the equipment must not only handle 2-ton loads but also maintain stability and safety during high-level stacking. Diding Lift's 2T Electric Walkie Pallet Stacker CDDA, with its 2000kg rated capacity, 3500mm maximum lift height, 1494mm turning radius, and AC motor system, builds a "narrow-aisle heavy-duty lifting" solution among 2-ton walkie stackers. This guide analyzes how the CDDA achieves heavy-duty lifting across four dimensions: lifting capacity, structural stability, powertrain, and space adaptability.

1. Lifting Capacity: The Real Boundaries of 2-Ton Load

A "2-ton stacker" cannot handle 2 tons at any height. The CDDA's lifting capacity varies with height—understanding this is the prerequisite for safe operation.

1.1 Rated Capacity vs Residual Capacity

The CDDA20 has a rated capacity of 2000kg (load centre 500mm) . This value only holds at low lift heights (typically ≤1600mm). As lift height increases, residual capacity progressively decreases:

At 3500mm lift height, the residual capacity is 1100kg . This means if cargo weight exceeds 1100kg and needs to be stacked at 3.5 meters, this model cannot safely handle it—consider a stand-on or larger tonnage model.

1.2 Impact of Load Centre Distance

The above data assumes a 500mm load centre distance, corresponding to standard EUR pallets (1200×1000mm) . For non-standard pallets or off-centre loads, actual capacity requires correction. For every 100mm increase in load centre distance, capacity decreases by approximately 10%-15%.

2. Structural Stability: The Safety Foundation for Heavy-Duty Lifting

During high-level stacking, the equipment's centre of gravity rises, making stability critical. The CDDA addresses this challenge through structural design.

2.1 Robust Body and Low Centre of Gravity

The CDDA adopts a solid structural design with high stability. Its service weight is 525-690kg (varies by mast configuration), reasonable among comparable walkie stackers, helping reduce tip-over risk during high-level operations .

2.2 Adjustable Auxiliary Wheels

The CDDA is equipped with adjustable auxiliary wheels, allowing support angle adjustment based on cargo centre of gravity and operating conditions, further enhancing lateral stability during high-level stacking .

2.3 Electromagnetic Brake System

The CDDA uses an electromagnetic brake, automatically locking when power is cut or the operator releases the tiller, preventing roll-away during slope or high-level operations .

3. Powertrain: AC Motor Support for Heavy-Duty Lifting

Heavy-duty lifting requires stable, efficient power output. The CDDA's powertrain is designed around this need.

3.1 AC Motor Configuration

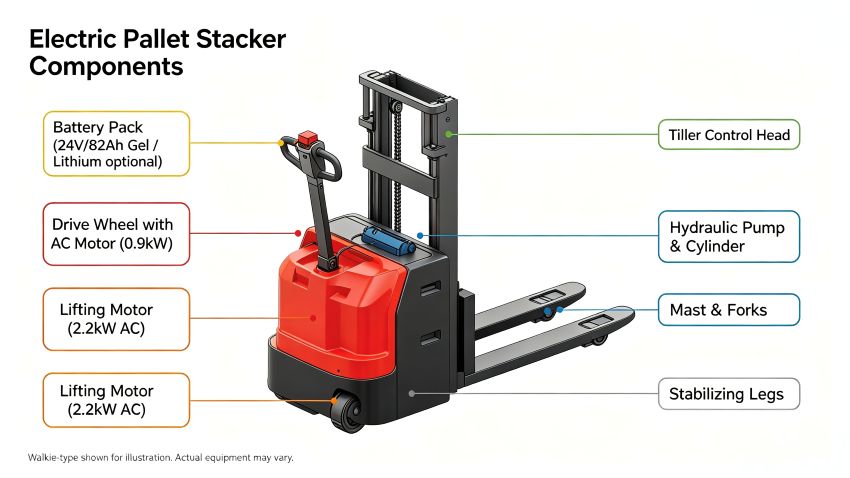

The CDDA is equipped with a 0.9kW AC drive motor and a 2.2kW AC lifting motor . Compared to DC motors, AC motors offer higher efficiency, less maintenance, and smoother starts, suitable for frequent start-stop heavy-load stacking operations.

3.2 Hydraulic System

The CDDA uses a Bucher hydraulic system . Bucher is a well-known brand in hydraulics, providing stable hydraulic power output for heavy-duty lifting and ensuring smooth fork lifting and lowering under full load.

3.3 Battery and Charging

The CDDA comes standard with a 24V/82Ah maintenance-free gel battery, supporting single-shift operations . For multi-shift heavy-duty lifting, lithium battery upgrade is available, supporting 1-2 hour fast charging for continuous operations.

4. Space Adaptability: Balancing Heavy-Duty Lifting with Narrow Aisles

Heavy-duty lifting equipment often faces the contradiction of "larger body, narrower aisle." The CDDA seeks balance between the two.

4.1 Compact Body and Minimal Turning Radius

The CDDA's minimum turning radius is only 1494mm , with an overall width of 850mm . This means the CDDA can complete right-angle stacking in aisles approximately 2377mm wide (1200×1000mm pallet) . For space-constrained warehouses, this parameter directly determines whether the equipment can enter the work area.

4.2 Mast Configuration Options

The CDDA offers simplex and duplex mast options, with lift heights covering 1600mm to 3500mm . Users can select the matching mast configuration based on rack height, avoiding the dilemma of "high mast can't fit through the door, low mast can't reach the goods."

5. Conclusion and Action Recommendations

Diding Lift's 2T Electric Walkie Pallet Stacker CDDA, with its 2000kg rated capacity, 3500mm maximum lift height, 1494mm turning radius, and AC motor system, provides a viable solution for narrow-aisle heavy-duty lifting. Its robust structure, electromagnetic brake, and adjustable auxiliary wheels address stability requirements during high-level stacking; AC motors and Bucher hydraulic system provide reliable heavy-load power support.

Diding Lift has 12 years of experience and a 65,000 m² factory & workshop, with products complying with EN 12895:2015 and EN ISO 3691-1:2015 European standards, certified to ISO 9001:2015 quality management system and CE safety certification, and supports ODM/OEM cooperation & customization .

For detailed lifting capacity assessment tailored to your operations or complete CDDA technical specifications, please send an email to sales@didinglift.com, and our professional team will provide one-on-one support.
