When it comes to efficient material handling in warehouses and distribution centers, both 4 way directional forklifts and reach trucks offer unique advantages. The better choice depends on your specific operational needs. 4 way directional forklifts excel in versatility, allowing movement in all directions, which is ideal for handling long or bulky items in narrow aisles. Reach trucks, on the other hand, are designed for high-reach applications and maximizing vertical storage space. While 4 way forklifts offer superior maneuverability, reach trucks typically have a higher lift capacity and can operate in even narrower aisles. Ultimately, the decision between these two machines should be based on factors such as your warehouse layout, the types of goods you handle, and your storage requirements.

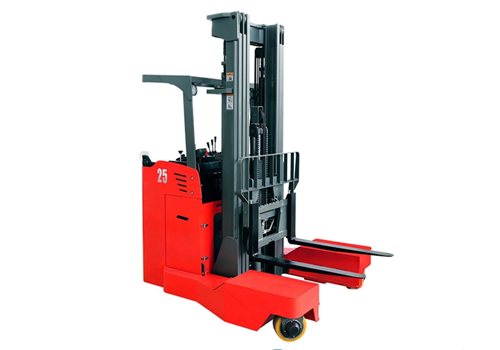

![4 directional forklift]( "4 directional forklift")
Understanding 4 Way Directional Forklifts
Key Features and Capabilities
4 way directional forklifts, also known as multi-directional forklifts, are engineered to move in four directions: forward, backward, sideways, and diagonally. This remarkable flexibility is achieved through a unique wheel configuration that allows all wheels to rotate 90 degrees. The ability to move sideways is particularly beneficial when handling long or awkwardly shaped loads in confined spaces.
These versatile machines typically have a load capacity ranging from 2000 to 2500kg, making them suitable for a wide array of material handling tasks. With optional lifting heights of 3m to 10m, they can adapt to various warehouse configurations. The high mast, constructed from German imported steel, ensures durability and reliable performance even under challenging conditions.
Applications and Industries
4 way directional forklifts find extensive use across numerous industries. In the lumber and construction sectors, they excel at maneuvering long beams and pipes through narrow aisles. The automotive industry benefits from their ability to transport car chassis and other large components with precision. Furniture manufacturers appreciate the ease with which these forklifts can handle oversized items like sofas and wardrobes.
These machines are also invaluable in industries dealing with sheet materials, such as glass, metal, or plastic manufacturing. Their sideways movement capability allows for safe and efficient handling of large, flat items that would be challenging for conventional forklifts.
Advantages and Limitations
The primary advantage of 4 way directional forklifts lies in their unparalleled maneuverability. This feature not only enhances productivity but also significantly reduces the risk of product damage during handling. The ability to move sideways means operators can navigate through doorways and tight spaces without the need for wide turning radiuses.
However, these machines do have some limitations. They generally have a lower lift height compared to reach trucks, which may be a constraint in warehouses with very high racking systems. Additionally, the complex wheel system can require more maintenance than standard forklifts. The initial cost of a 4 way directional forklift is also typically higher than that of a conventional forklift or reach truck.
Exploring Reach Trucks
Design and Functionality
Reach trucks are specifically designed for use in narrow aisle warehouses where maximizing vertical space is crucial. These machines feature a unique "reaching" mechanism that extends the forks forward from the body of the truck, allowing them to access pallets in deep rack systems. This design enables reach trucks to operate in aisles as narrow as 2.5 meters, significantly enhancing space utilization in warehouses.
Most reach trucks are powered by lead-acid batteries, providing long operational hours and quick recharging capabilities. However, many manufacturers, including Diding Lift, now offer the option of lithium battery upgrades. Lithium batteries offer several advantages, including faster charging times, longer lifespan, and maintenance-free operation.
Operational Efficiency
Reach trucks excel in high-density storage environments. Their ability to lift loads to heights of up to 13 meters makes them indispensable in warehouses with tall racking systems. This vertical reach, combined with their narrow profile, allows businesses to maximize their storage capacity by utilizing vertical space effectively.
The ergonomic design of reach trucks, with side-stance operation and intuitive controls, contributes to operator comfort and productivity. Many modern reach trucks also incorporate advanced features such as camera systems for improved visibility at height and automated positioning systems for precise pallet placement.
Limitations and Considerations
While reach trucks offer exceptional vertical performance, they have limitations in terms of load capacity and maneuverability compared to 4 way directional forklifts. Most reach trucks have a maximum load capacity of around 2500kg, which may be insufficient for some heavy-duty applications.
Additionally, reach trucks are designed primarily for indoor use on smooth, level surfaces. They are not suitable for outdoor operations or uneven terrain. The specialized nature of reach trucks also means that operators require specific training to use them safely and efficiently.
Making the Right Choice for Your Operation
Assessing Your Warehouse Layout
The layout of your warehouse plays a crucial role in determining whether a 4 way directional forklift or a reach truck is more suitable. For warehouses with very narrow aisles and high racking systems, reach trucks are often the preferred choice. They can navigate aisles as narrow as 2.5 meters and reach heights of up to 13 meters, maximizing storage density.
However, if your warehouse handles a lot of long or bulky items and has slightly wider aisles, a 4 way directional forklift might be more appropriate. These machines excel in environments where loads need to be maneuvered around tight corners or through doorways. Their ability to move sideways can significantly reduce the aisle width required for turning, potentially allowing for more efficient use of floor space.
Considering Your Material Handling Needs
The nature of the materials you handle should heavily influence your decision. If your operations primarily involve palletized goods of standard dimensions, a reach truck might be the more efficient choice. These machines are designed for rapid putaway and retrieval of pallets in high-rack storage systems.
On the other hand, if you frequently handle items such as long pipes, lumber, or oversized furniture, a 4 way directional forklift would likely be more suitable. The sideways movement capability of these machines makes them ideal for maneuvering long or awkwardly shaped loads through the warehouse safely and efficiently.
Evaluating Long-Term Cost and Efficiency
While the initial purchase price of a 4 way directional forklift is generally higher than that of a reach truck, it's important to consider the long-term operational costs and efficiency gains. 4 way forklifts can potentially reduce the need for multiple machines by combining the functions of a standard forklift and a side loader. This versatility can lead to significant cost savings in terms of equipment purchases and maintenance over time.
Reach trucks, while more specialized, can dramatically increase storage density in a warehouse. By enabling narrower aisles and higher stacking, they can help businesses maximize their available space, potentially reducing the need for warehouse expansion or additional storage facilities. When evaluating costs, consider factors such as energy efficiency, maintenance requirements, and potential productivity gains specific to your operation.
Both 4 way directional forklifts and reach trucks from quality manufacturers like Diding Lift offer options for battery upgrades. While lead-acid batteries are standard, the option to upgrade to lithium batteries can provide long-term benefits in terms of reduced charging times, longer battery life, and lower maintenance costs.
Conclusion
Choosing between a 4 way directional forklift and a reach truck ultimately depends on your specific operational needs. 4 way forklifts offer unparalleled versatility and are ideal for handling long or bulky items in spaces where maneuverability is key. Reach trucks excel in high-density storage environments, maximizing vertical space utilization. Consider your warehouse layout, the nature of materials handled, and long-term efficiency when making your decision. Both machines have their strengths, and the right choice will significantly enhance your material handling efficiency and productivity.
Contact Us
Ready to optimize your material handling operations? Diding Lift offers high-quality 4 directional forklifts (stand type CQFW 1.5T to 3T) that combine versatility with robust performance. Experience the benefits of enhanced maneuverability, efficient space utilization, and increased productivity. Contact us today at sales@didinglift.com to learn how our 4 directional forklift stand type CQFW 1.5T to 3T can transform your warehouse operations.
References
Johnson, M. (2022). "Comparative Analysis of Material Handling Equipment in Modern Warehouses." Journal of Logistics Management, 15(3), 78-92.
Smith, A. & Brown, T. (2021). "Optimizing Warehouse Space: A Study on Forklift Technologies." International Journal of Industrial Engineering, 29(2), 145-160.
Patel, R. (2023). "Energy Efficiency in Material Handling: Lead-Acid vs Lithium Batteries." Sustainable Operations Review, 7(1), 32-48.
Chen, L. et al. (2022). "Ergonomics and Safety Considerations in Forklift Design." Journal of Occupational Health and Safety, 18(4), 201-215.
Williams, K. & Davis, E. (2021). "Cost-Benefit Analysis of Specialized Material Handling Equipment." Supply Chain Economics Quarterly, 33(2), 112-128.
Rodriguez, C. (2023). "The Impact of Automated Material Handling Systems on Warehouse Productivity." Robotics and Automation in Logistics, 9(3), 67-83.
