Adzɔnuwo ŋuti nuŋlɔɖi .
Míenye dɔnyala Walkie counterbalanced stacker wɔlawo kple nudzralawo le China, be woaƒle alo wholesale counterbalanced azɔlizɔzɔ megbe forklift tso míaƒe dɔwɔƒea. Ne èdi nyayɔyɔ alo ne nya aɖe le asiwò la, te ɖe mía ŋu fifia hena counterbalance walkie stacker si wowɔ ɖe ɖoɖo nu kple asi.

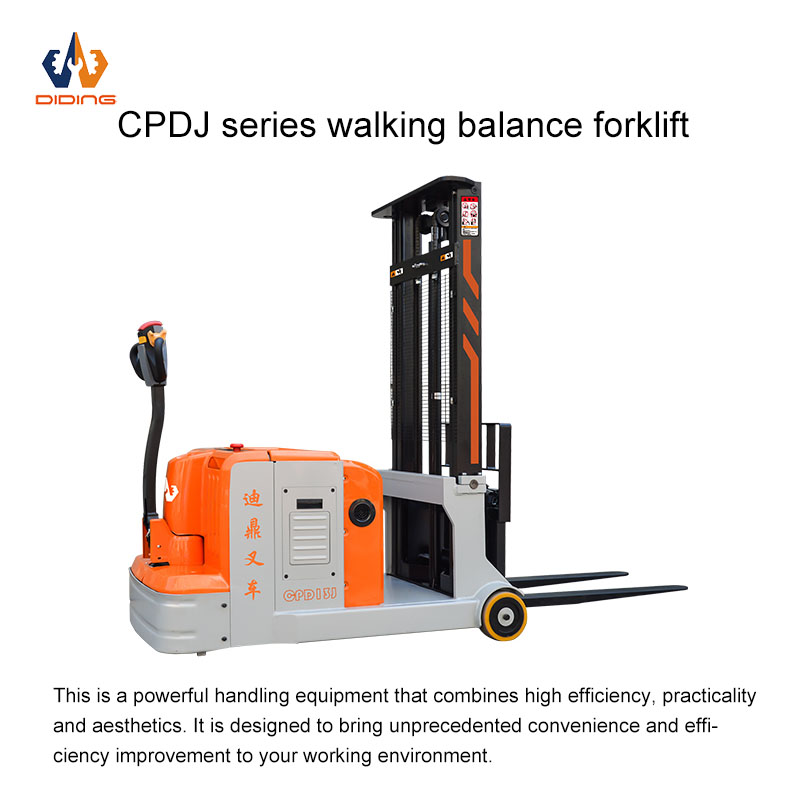

Original amegbetɔ ƒe nɔnɔme si wowɔ le Walkie counterbalanced stacker .
![]()

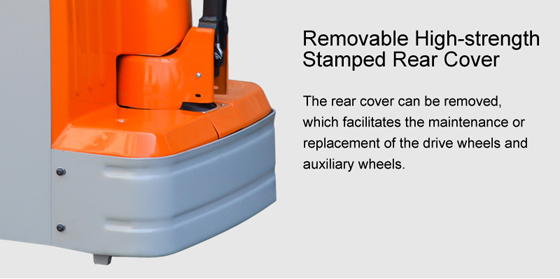

![Afɔmanɔsitɔ ƒe ƒuƒoƒo si nye counterbalance walkie stacker .]()
![]()

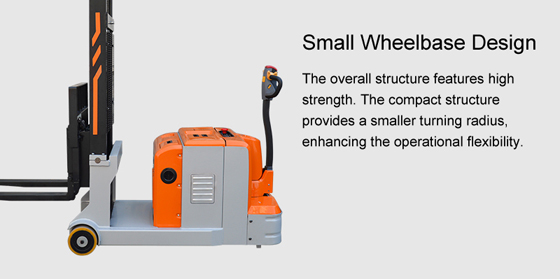

![Small Wheelbase Design of counterbalance walkie stacker .]()
![]()
![]()
Design of Walkie counterbalanced stacker na xɔtuɖoɖo & nɔnɔme si nɔa anyi didina .
![]()
![]()

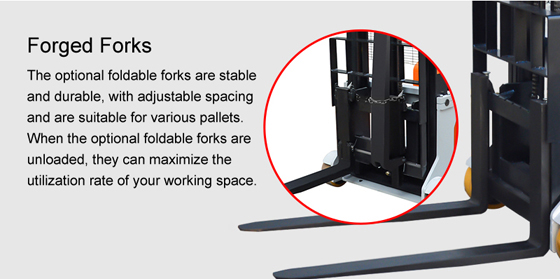

![Forged Forks of Counterbalance Walkie Stacker .]()
![]()

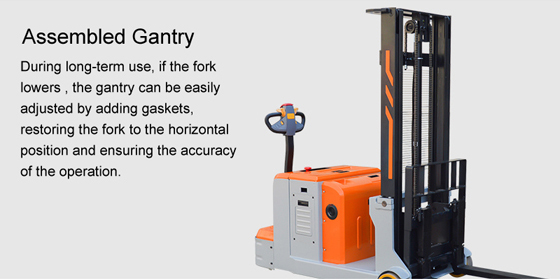

![Gantry si woƒo ƒu ɖe counterbalance walkie stacker .]()
![]()
Dɔwɔwɔ bɔbɔe & beléle na Walkie counterbalanced stacker .

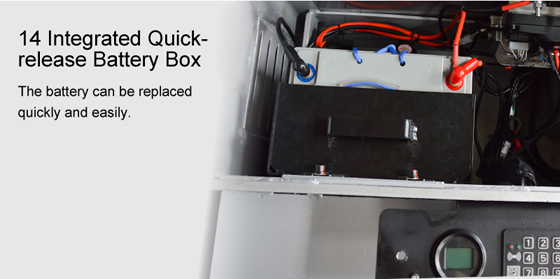

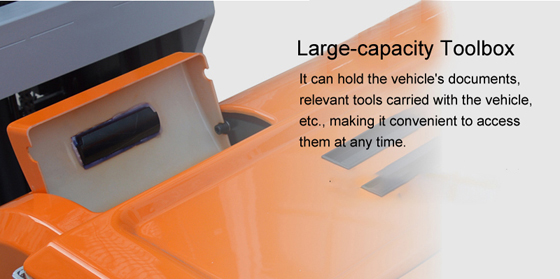

![Dɔwɔnuɖaka si ƒe ŋutete lolo ŋutɔ si nye counterbalance walkie stacker .]()
![]()
![]()

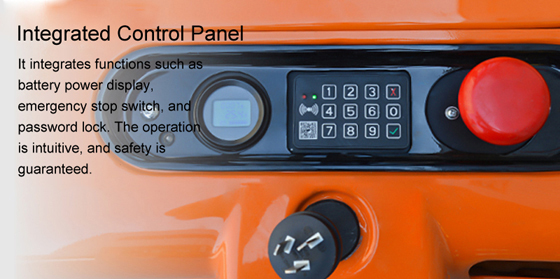

![Counterbalance Walkie Stacker ƒe dziɖuɖu ƒe akpa si wotsɔ wɔ ɖekae .]()
![]()
![]()
Original amegbetɔ ƒe nɔnɔme si wowɔ le Walkie counterbalanced stacker .
![]()
![Afɔmanɔsitɔ ƒe ƒuƒoƒo si nye counterbalance walkie stacker .]()
![]()
![Small Wheelbase Design of counterbalance walkie stacker .]()
![]()
![]()

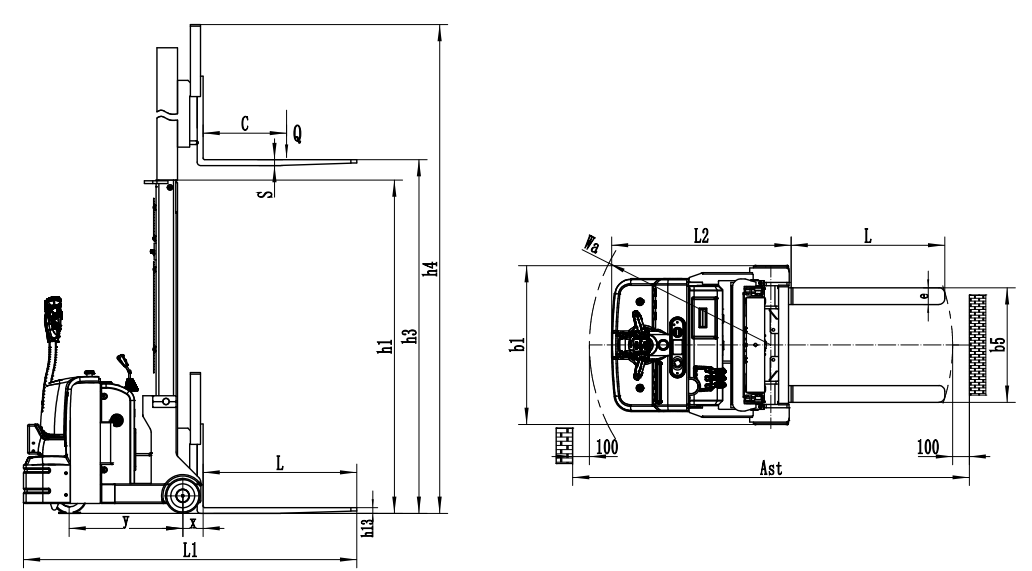

Mɔ̃ɖaŋununya ƒe parameter of Walkie counterbalanced stacker .
| Specification . |
| Nɔnɔmewo |
| Nuwɔƒe . |
| Diding . |
| Kpɔɖeŋu |
| CPD10J . |
| Nuwɔna |
| Walkie . |
| Rated traction weight . | Q (kg) | 1000 |
| Mast ƒomevi . |
| Singel ƒe mast . | 2-afɔɖeɖe . |
| Kᴐe dzi | H3 (MM) . | 1600 | 2000/2500/3000/3500 |
| Ŋutete si le kɔkɔƒe kɔkɔtɔ kekeake . | KG . | 1000 | 1000/1000/850/700 . |
| Subɔsubɔ ƒe kpekpeme kple batri . | KG . | 1515 | 1545/1565/1585/1635 |
| Agbatsɔƒe . | C (MM) | 500 |
| Axle Center vaseɖe Fork Face . | x (mm) . | 119 |
| Tasiaɖamfɔ ƒe gɔmeɖoanyi . | y (mM) | 990 |
| Dzɔla . |
| Daneng D2P . |
| Tasiaɖamfɔwo . |
| Tasiaɖamfɔwo ƒe ƒomevi . |
| Polyurethane . |
| Ʋukuku ƒe tasiaɖamfɔ ƒe lolome . | ∅×W . | φ210×75. |
| Bearing Wheel ƒe lolome . | ∅×W . | φ210×85. |
| tasiaɖamfɔwo,xexlẽdzesi ŋgɔgbe/megbe(X=Driven) |
| 1x,0/2. |
| Dzidzemewo . |
| Mast ƒe kɔkɔme,eƒe anyigba . | H1 (MM) . | 2095 | 1595/1845/1995/2345 |
| Mast ƒe kɔkɔme,extended . | H4 (MM) . | 2095 | 2695/3197/3700/4200 |
| Fork ƒe kɔkɔme,woɖee fia . | H13 (MM) . | ≤65 . |
| didime bliboa . | L1 (MM) . | 2364 |
| didime vaseɖe fɔkpa ƒe mo . | L2 (MM) . | 1254 |
| kekeme bliboa . | B1/B2 (mm) . | 950 |
| Fork ƒe didime . | s/e/l (mm) . | 40/100/1070 . |
| fɔklɔ ƒe kekeme . | B5 (MM) | 210-685 . |

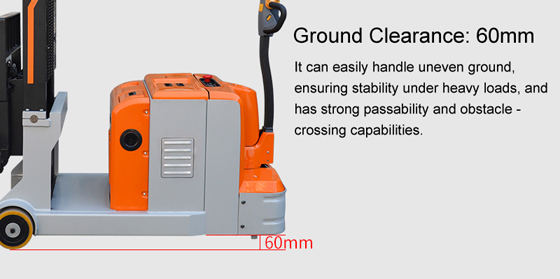

| Min.anyigba ƒe ʋuʋu . | M2 (MM) . | 60 |
| Aisle kekeme kple pallet 1000×1200 le fɔklɔwo ŋu . | Ast (MM) | 2827 |
| Aisle kekeme kple pallet 800×1200 le fɔklɔwo ŋu . | Ast (MM) | 2796 |
| Min.Turing Radius . | WA (MM) | 1264 |
| Dᴐwᴐwᴐ |
| Mɔzɔzɔ spees,kple/agba manɔmee . | (km/h) | 4.5/5. |
| Kɔkɔƒe ƒe duƒuƒu,kple/agba manɔmee . | (mm/s) | 110/155 . |
| Ðeɖiteameŋu ƒe duƒuƒu,kple/agba manɔmee . | (mm/s) | 100/110 . |
| Max.Gradeability Laden/Adzɔnu Siwo Me Wometsɔa Adzɔ O . | (%) | 5/8 . |
| Subɔsubɔdɔ ƒe brek . |
| Elektrikŋusẽ ƒe brek . |
| Ʋu kple batri . |
| Ʋu ƒe mɔ̃,nusi do tso eme S2 60 min. | (KW) | 0.75 |
| Lift motor rating le S3 15% . | (KW) | 2.2 |
| Batri le DIN 43531/35/36 A,B,C |
| Ao |
| Batri ƒe ʋuʋudedi/ŋutete si woɖo ɖi . | (V/AH) | 24/92 . |
| Batriki ƒe kpekpeme (±5%) . | (kg) | 27.5×2. |
| Bubuwo . |
| Toɣliɖeɖe ƒe sesẽme le dɔwɔla ‘Sear . | (DB (A) | 69 |
| ʋukuku ƒe ƒomevi . |
| Mɔ̃ɖaŋununya ƒe ʋukuku . |
Walkie Counterbalanced Stacker ƒe nuwɔna ŋuti nyatakakawo .
![]()
Walkie counterbalanced stacker wɔla .
Diding Lift la léa ŋku ɖe le nyonyome nyuitɔ kekeake nana ŋu walkie counterbalanced stacker si kple subɔsubɔdɔ nyuitɔ kekeake tso ƒe 2015. Míenye walkie counterbalanced stacker wɔla kple dɔwɔƒe si ƒe lolome nye 65,000 m 2 si koŋ wɔa elektrik pallet , elektrik stacker , ɖo agbatsɔʋu ƒe nutovɛwo gbɔ hena ƒe 12 ƒe nuteƒekpɔkpɔ. Diding naa wò kple rideable elektrik pallet jack wholesale, customization, aɖaŋu, packaging, dɔwɔƒe kuxiwo gbɔkpɔnu kple OEM & ODM subɔsubɔdɔ.
![Nukpɔkpɔ ƒe teƒe .]( "exhibition site")
![Nukpɔkpɔ ƒe teƒe .]( "exhibition site")
![Nukpɔkpɔ ƒe teƒe .]( "exhibition site")
![Nyatakakadzraɖoƒe si woɖona ɖe amewo .]( "delivery site")
![Nyatakakadzraɖoƒe si woɖona ɖe amewo .]( "delivery site")
![Nyatakakadzraɖoƒe si woɖona ɖe amewo .]( "delivery site")
Afikae woaƒle Walkie Countalbalanced Stacker le?
Ne nya aɖe le asiwò ku ɖe Walkie counterbalanced stacker ,counterbalanced azɔlizɔzɔ megbe forklift, counterbalance walkie stacker, taflatse mègahe ɖe megbe le email ɖoɖo ɖe sales@didinglift.com le ɣeyiɣi ɖesiaɖe me. Míana nyatakaka tsitotsito kple mɔ̃ɖaŋununya ƒe kpekpeɖeŋu tso Electric Pallet Truck , Electric Stacker , Truck ƒe nɔnɔmewo, eƒe nɔnɔmewo, egbɔkpɔnuwo kple tɔtrɔ ɖe nɔnɔmewo ŋu ƒe tiatiawɔblɔɖewo ŋu ... Míexɔ wò nyuie be nàɖi tsa ayi míaƒe dɔwɔƒea!
