What Is the Role of Ergonomics in Electric Pallet Trucks?

From “Can Work” to “Can Work Long,” the Underestimated Efficiency Lever

In electric pallet truck procurement and use, load capacity, speed, and battery range often take center stage, while ergonomics is frequently relegated to “comfort features” at the bottom of the priority list. But industry data reveals a different conclusion: in warehousing operations, musculoskeletal disorders (MSDs) are the most common type of workplace injury, mainly from overexertion in lifting and lowering. For workers operating electric pallet trucks for hours each day, equipment ergonomics directly determines fatigue accumulation rate, operational precision, and long-term health.

This article systematically analyzes the practical role of ergonomics in electric pallet trucks across four dimensions—operator platform and shock absorption, control interface design, power steering, and the selection logic between stand-on and walkie models—using Diding Lift‘s 2T Stand On Pallet Truck Off Road CBDE as an example to illustrate how ergonomic design translates into tangible efficiency gains.

1. Operator Platform: From “Standing” to “Standing Steady”

1.1 Ergonomic Differences in Stand-On Platforms

The core ergonomic carrier of a stand-on electric pallet truck is the standing platform. Design differences at this detail level directly affect the operator’s spinal load and comfort during extended operation.

Take the Red Dot Design Award-winning Jungheinrich ERD 220i as an example. Its stand-on platform features a softly suspended design that protects the driver from three sides; the entire drive is also suspended, which promotes relief on the driver‘s spine and makes the frame and technical components subject to significantly less stress. Yale’s end rider models feature a platform cushion that provides 30% less shock and vibration compared to conventional rubber mats, improving comfort and promoting steadier footing.

Translation into Efficiency: Shock absorption design reduces not only fatigue but also the decline in control precision caused by vibration. In narrow-aisle operations or high-level stacking, a stable standing platform means more precise fork positioning and lower cargo damage rates.

1.2 CBDE’s Platform Design Logic

The CBDE‘s solid structural design with high stability also plays a role at the stand-on platform level. The reinforced chassis and structural rigidity reduce body sway during travel, providing a more stable standing foundation for the operator. Combined with the shock-absorbing characteristics of off-road tires, it also reduces the impact transmitted to the operator’s body on outdoor uneven surfaces.

2. Control Interface: “Micro-Ergonomics” for Wrists and Fingers

2.1 Detail Differences in Handle Design

The control handle of an electric pallet truck is the component the operator contacts for the longest duration. The grip angle, button layout, and rotation damping of the handle accumulate into wrist and finger strain risks over day-after-day operation.

Yale‘s end rider models use a full rotary control handle with a twist/grip design that minimizes wrist stress and allows precise lift/lower, travel, and horn functions from both sides. The Jungheinrich AME series emphasizes ergonomic tiller heads and controls, combined with practical features like storage compartments, helping reduce fatigue during long shifts and increase productivity.

2.2 CBDE’s Control Configuration

The ergonomic value of the CBDE‘s standard emergency reverse button is often overlooked. The button’s trigger area and pressure have been optimized to remain reliably triggerable while wearing gloves, reducing secondary risks caused by difficulty locating the button or applying improper force in emergencies. The turtle speed switch‘s one-key speed limiting design avoids the fatigue of sustained micro-pressure on fingers during prolonged precision control.

3. Power Steering: From “Laborious Turning” to “Effortless Steering”

3.1 The Efficiency Ledger of Power Steering

For stand-on electric pallet trucks, steering ease directly affects fatigue during extended operation. Yale data shows its power assist steering system reduces physical effort by up to 60% compared to manual steer trucks, with programmable steering feel. This means that across hundreds of steering operations per day, the operator’s arm and shoulder load is substantially reduced.

3.2 Intelligent Steering-Speed Linkage

Another ergonomic design of the Jungheinrich ERD 220i is automatic maximum speed reduction based on steering angle when cornering. This feature not only improves safety but also reduces the extra control force operators apply due to tension when cornering—the equipment makes the “slow down” judgment for the human, and the operator only needs to focus on direction.

CBDE‘s Steering Characteristics: Its turning radius of only approximately 1.5 meters reduces the number of repeated directional adjustments in narrow aisles, indirectly lowering steering operation frequency and fatigue accumulation. The electromagnetic brake automatically engages when the handle is released, eliminating the physical effort of frequent manual braking.

4. Stand-On vs. Walkie: The Ergonomic Dividing Line

4.1 Application Boundaries of Walkie Models

The ergonomic advantage of walkie electric pallet trucks lies in their compact body and small turning radius, suitable for narrow aisles and low-frequency operations. But their core limitation is also ergonomic: operators walk behind the truck throughout, and continuous operation exceeding 4 hours per day easily causes physical fatigue; travel speed is slower, and overall efficiency is lower when facing high-volume, high-frequency turnover.

4.2 The Efficiency Leap of Stand-On Models

Stand-on pallet trucks let operators stand on the platform and travel with the truck, greatly reducing labor intensity; even during full 8-hour shifts, operators can maintain a good state. Under equivalent conditions, transfer efficiency is over 60% higher than walkie models. The essence of this efficiency gap is that ergonomic design transforms the operator from a “physical output provider” to a “controller,” transferring energy that would otherwise be consumed by walking and pushing into productive work.

CBDE’s Positioning: As a stand-on model, the CBDE‘s optional lithium battery upgrade and built-in charger further reduce operational interruptions caused by charging waits and battery swaps, allowing the efficiency advantages of ergonomics to persist throughout the full shift.

5. Summary: Ergonomics Is “Hidden Productivity”

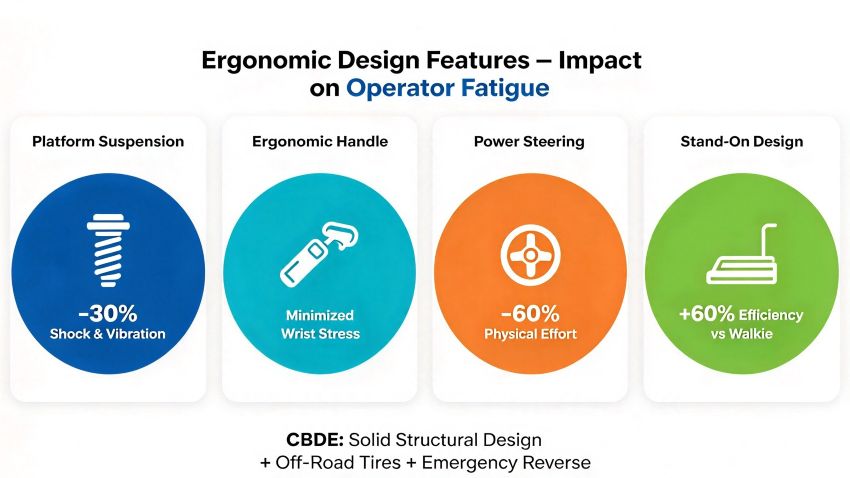

The role of ergonomics in electric pallet trucks goes far beyond “sitting comfortably” or “standing without fatigue.” By reducing vibration transmission, optimizing control effort, and lowering fatigue accumulation, it preserves the operator’s attention and physical strength for the actions that actually create value. For day-after-day high-frequency handling scenarios, these seemingly minor design differences accumulate into significant efficiency gaps and injury cost gaps.

For more ergonomic configuration details or product selection advice, please contact Diding Lift. This professional manufacturer has over 12 years of industry experience and a 65,000 m² factory . All products comply with European EN standards and ISO, CE, and EU certifications.

Need ergonomic assessment, product selection, or equipment pricing? Send an email to sales@didinglift.com – our professional team will provide one-on-one support within 24 hours.

References

1. Red Dot Design Award. (2026). Jungheinrich ERD 220i. red-dot.org.

2. Alta Material Handling. (2026). Yale MPE60-G Rider Pallet Trucks. altg.ca.

3. MHD. (2025). Jungheinrich launches AME pallet trucks. mhdsupplychain.com.au.

4. Hawaii Department of Labor & Industrial Relations. (2022). Warehousing and Storage Safety. labor.hawaii.gov.
