Warehouse Electric Pallet Stacker Procurement Guide

Views: 0 Author: Site Editor Publish Time: 2026-08-06 Origin: Site

Purchasing a warehouse Electric Pallet Stacker is a critical decision in optimizing internal logistics operations. It affects not only daily operational efficiency but also warehouse space utilization, labor costs, and long-term safety. This guide provides a systematic procurement framework—from requirement definition, parameter interpretation, and supplier evaluation, to new vs. used equipment decisions, contract negotiation, and acceptance—helping procurement decision-makers complete the selection and purchasing process with confidence.

1. Requirement Definition: First Clarify "What Problem Am I Solving?"

Before contacting suppliers, procurement teams should complete an internal requirement review. Clear requirement definition is the foundation for all subsequent decisions.

Requirement Dimension	Key Questions	Procurement Significance
Cargo & Load	What is the heaviest cargo? Pallet size and type?	Determines rated capacity and fork specifications
Warehouse Space	What is the narrowest aisle width? Tallest rack level?	Determines turning radius and lift height requirements
Operating Intensity	Daily stacking frequency? Shift duration? Multi-shift?	Determines battery type and charging solution
Operator Profile	Operator experience? Training plan in place?	Determines equipment complexity and training needs

Core Principle: Procurement decisions should be based on operational fit and long-term Total Cost of Ownership (TCO) , not just the lowest purchase price.

2. Key Parameter Interpretation: Reading Between the Lines of Spec Sheets

Supplier spec sheets often contain numerous technical parameters. The following five are the most critical for procurement decisions:

Parameter	Meaning	Procurement Focus
Rated Capacity	Maximum load at standard load centre (usually 500mm)	Important: This value decreases with lift height—check residual capacity at height
Lift Height	Maximum fork lift height	Must match your tallest rack level with some margin
Turning Radius	Minimum turning radius of the equipment	Determines narrow-aisle passability. Aisle width ≈ turning radius + pallet width + safety margin
Battery Type & Capacity	Gel or lithium, Ah (ampere-hours) indicates capacity	Larger capacity (e.g., 24V/82Ah) provides longer runtime; lithium supports fast charging
Motor Type	DC or AC	AC motors offer higher efficiency, lower maintenance, and smoother starts—ideal for frequent start-stop cycles

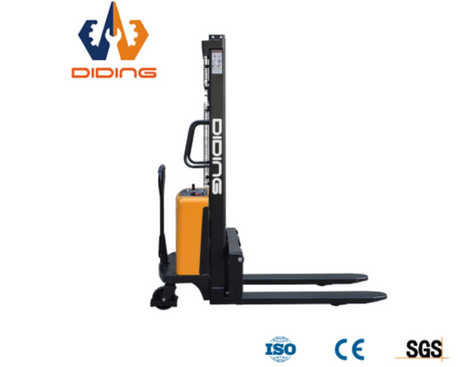

Example Reference: The 2T Electric Walkie Pallet Stacker CDDA features: rated capacity 2000kg (load centre 500mm) , maximum lift height 3500mm (duplex mast) , turning radius 1494mm , standard 24V/82Ah maintenance-free gel battery (optional lithium upgrade) , and 0.9kW AC drive motor + 2.2kW AC lifting motor. This combination covers the requirements of the vast majority of indoor stacking applications.

2T Electric Walkie Pallet Stacker CDDA Flat Detail Drawing.png

3. Supplier Evaluation: Beyond Price, What Else to Consider?

Selecting a supplier is a critical step in the procurement process. Evaluate suppliers across the following dimensions:

Evaluation Dimension	Key Considerations	Ideal Supplier Characteristics
Manufacturing Experience	Years in industry, production scale	12+ years experience, own factory
Certification & Compliance	Product quality and safety certifications	ISO, CE, EU certifications
Customization Capability	Can meet special requirements (fork size, mast height)	Supports ODM/OEM cooperation & customization
After-Sales Support	Warranty period, parts availability, response time	Full warranty, adequate parts supply, local support

Product Reference: Diding Lift has 12 years of experience and a 65,000 m² factory & workshop, with products holding Europe EN & ISO, CE, EU Certificates, and supports ODM/OEM cooperation & customization. Its flagship CDDA model is a mature choice for 2-ton stacking applications, offering full lifecycle technical support.

4. New vs. Used Equipment Decision: New Machine vs. Used Forklift

When budgets are tight, many buyers consider used forklifts. Be aware of the following hidden risks:

Comparison Dimension	New Electric Stacker (e.g., CDDA)	Used Forklift
Equipment Condition	Zero hours, zero wear, full lifecycle protection	Condition of hours, battery, hydraulics often unknown
Battery Cost	Included in warranty, 0 additional cost	High battery aging risk; replacement can cost up to 50% of purchase price
Maintenance Cost	Low, all components new	High, frequent replacement of worn parts
Compliance & Safety	Meets CE, ISO certifications, complete safety features	Safety devices may be degraded, compliance risks high
5-Year TCO	Predictable and controllable (approx. 80,000-110,000 RMB)	Unpredictable (approx. 100,000-200,000 RMB, highly variable)

Procurement Advice: If your operation meets load ≤2 tons, lift ≤3.5m, aisle ≤2.5m, a brand-new 2-ton electric stacker is often a more economical, more reliable, and less troublesome choice than a used forklift.

5. Contract and Acceptance: Protecting Your Procurement Rights

Before placing your final order, verify the following items to ensure a transparent procurement process and clear rights:

Stage	Checklist Items
Requirement Confirmation	☐ Cargo weight (including height margin) ≤2 tons ☐ Maximum pick height ≤3.5m ☐ Narrowest aisle ≥ equipment Ast value
Supplier Screening	☐ Verify manufacturer experience and certifications ☐ Confirm warranty terms and after-sales response time
Contract Signing	☐ Clarify delivery lead time, installation, and operator training ☐ Confirm payment terms and warranty conditions ☐ Check spare parts supply and technical support terms
Acceptance & Delivery	☐ Verify all spec sheet parameters (load/lift/battery/motor) ☐ Conduct practical operation tests (turning, stacking, braking) ☐ Confirm operator training has been completed

6. Conclusion and Action Recommendations

The warehouse Electric Pallet Stacker is the universal solution for indoor warehousing stacking applications. The core principle of procurement is: survey operating conditions first, match parameters second, calculate total cost third, and choose your partner last.

Diding Lift has 12 years of experience and a 65,000 m² factory & workshop, with products holding Europe EN & ISO, CE, EU Certificates, and supports ODM/OEM cooperation & customization. Its 2T Electric Walkie Pallet Stacker CDDA, featuring a 1494mm turning radius, 2-ton capacity, AC motor system, and multiple mast options, is a mature choice offering both flexibility and reliability for 2-ton stacking applications.

If you need detailed procurement recommendations and customized solutions tailored to your specific operating conditions, please send an email to sales@didinglift.com, and our professional team will provide one-on-one support.
