Do I Need a Full Electric Pallet Stacker or Just a Manual Pallet Jack?

Views: 0 Author: Site Editor Publish Time: 2026-08-04 Origin: Site

In warehouse operations, the core question of equipment selection is not "what equipment is the best," but "what equipment best fits my actual working conditions." The difference between a full-electric pallet stacker and a manual pallet jack is not just about power versus price—it is a fundamental difference in operating mode, labor allocation, and storage strategy. This guide will help you determine: does your warehouse actually need a full-electric stacker, or is a manual pallet jack enough?

2T Electric Walkie Pallet Stacker CDDA.png

1. Understanding the Three Equipment Types

Equipment Type	Travel Drive	Lifting Drive	Typical Lift Height	Operation Mode
Manual Pallet Jack	Manual pushing/pulling	Manual hydraulic pump	Only 200mm (ground clearance)	Walkie, fully manual
Semi-Electric Stacker	Manual pushing/pulling	Electric hydraulic pump	Up to 2500-3500mm	Walk manually, lift electrically
Full-Electric Pallet Stacker	Electric (AC motor driven)	Electric hydraulic pump	Up to 3500-5000mm	Electric travel + electric lift, button control

Conclusion: A manual pallet jack solves the "horizontal transport" problem, while a full-electric stacker solves both "horizontal transport + vertical stacking." They are fundamentally different tools for different jobs.

2. Decision Framework: Four Questions to Help You Decide

Before deciding, answer these four questions:

Question	Manual Pallet Jack	Full-Electric Stacker
① Do goods need to be placed on racks?	No (only floor storage or truck loading)	Yes (requires racking or stacking)
② What is the daily stacking frequency?	<20 cycles/day	>60 cycles/day
③ How long is the transport distance?	<20m	>30m (more efficient for longer distances)
④ Is aisle width constrained?	Not limited (manual pushing, highly flexible)	Requires ≥2377mm (CDDA as example)

Quick Check: If Q① is "Yes" and Q② is ">60 cycles/day", a full-electric stacker is a necessity. If both Q① and Q② are "No", a manual pallet jack is sufficient.

3. Efficiency Data: How Big Is the Gap?

The following data is based on industry tests, showing the efficiency differences between the two equipment types in typical stacking operations:

Operation Scenario	Manual Pallet Jack	Full-Electric Stacker (CDDA)	Efficiency Gap
Single pallet stacking to 2.7m rack	Approx. 55 sec/cycle (with manual pumping)	Approx. 28 sec/cycle (button control)	Electric is ~49% faster
Output per 8-hour shift	Approx. 60 pallets (requires 2 operators)	Approx. 180 pallets (requires 1 operator)	Electric increases output by 200%
Operator physical exertion	High (walking + pumping)	Very low (standing, button control)	Electric significantly reduces injury risk

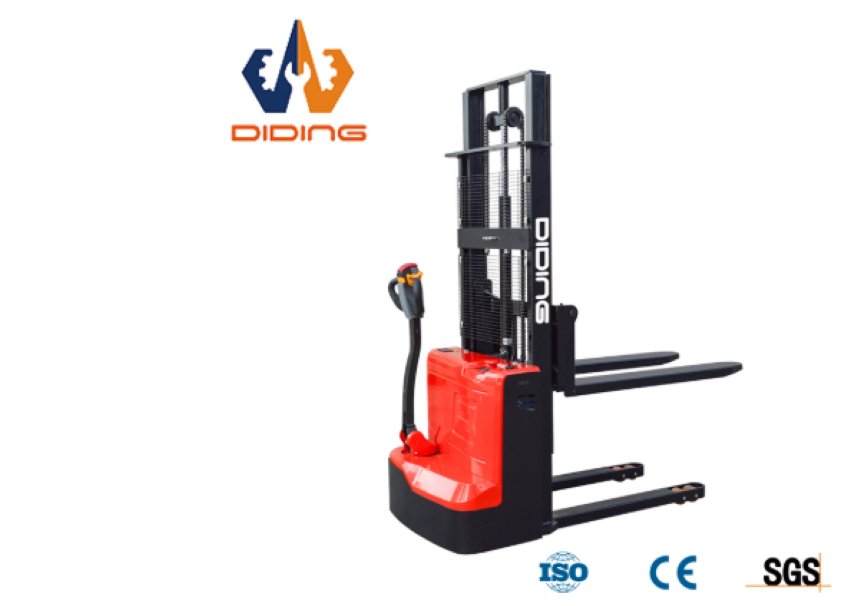

Product Reference: The 2T Electric Walkie Pallet Stacker CDDA, equipped with a 0.9kW AC drive motor and a 2.2kW AC lifting motor, allows operators to control travel and lifting with buttons—no manual pushing or pumping required.

Selling Points and Advantages of the Electric Pallet Stacker.png

4. Cost Analysis: Short-Term Investment vs. Long-Term Gain

Cost Item	Manual Pallet Jack Solution	Full-Electric Stacker Solution (CDDA)
Equipment Purchase Cost	Approx. 2,000 - 8,000 RMB	Approx. 60,000 - 100,000 RMB
Operators Required per Day	2 people (if stacking)	1 person
Annual Labor Cost (at 80,000 RMB/person/year)	160,000 RMB (2 people)	80,000 RMB (1 person)
Annual Energy & Maintenance Cost	Very low (approx. 200 - 500 RMB)	Low (approx. 2,000 - 4,000 RMB)
Five-Year Total Cost of Ownership (TCO)	Approx. 80,000 - 100,000 RMB (labor-dominated)	Approx. 110,000 - 140,000 RMB (equipment + labor)

Conclusion: In stacking scenarios, a full-electric stacker saves one operator, and the additional equipment investment is typically recovered within 1-2 years through labor cost savings. If no stacking is required, a manual pallet jack is more economical.

5. Selection Checklist

Check Item	Manual Pallet Jack	Full-Electric Stacker (e.g., CDDA)
Goods need racking (lift >200mm)	❌ Cannot perform	✅ Core function
Daily stacking >60 cycles	❌ Not sustainable manually	✅ Efficiently completed
Transport distance >30m	❌ Operator fatigue sets in	✅ Motor-driven, stable efficiency
Aisle width ≥2377mm	✅ Not constrained	✅ CDDA fits narrow aisles
Limited budget (<30,000 RMB)	✅ Economical choice	❌ Exceeds budget

6. Conclusion and Action Recommendations

There is no absolute "better" between a full-electric pallet stacker and a manual pallet jack—only which one fits your actual operating conditions. The core decision criterion is: Do you need to place pallets on racks (lift >200mm)? If yes, an electric stacker is a necessity; if no, a manual pallet jack is sufficient.

Diding Lift has 12 years of experience and a 65,000 m² factory & workshop, with products holding Europe EN & ISO, CE, EU Certificates, and supports ODM/OEM cooperation & customization. Its 2T Electric Walkie Pallet Stacker CDDA, featuring a 1494mm turning radius, 2-ton capacity, and AC motor system, is an ideal choice for upgrading warehouses from "manual handling" to "electric stacking."

If you need to evaluate whether your warehouse is ready to upgrade from manual to electric solutions, please send an email to sales@didinglift.com, and our professional team will provide one-on-one support.
