Choosing the Best Electric Pallet Stacker for Your Warehouse

Choosing the right electric pallet stacker is one of the most important things you can do when buying warehouse tools. It has a direct effect on how well your business runs and your bottom line. As a powered lifting option, an electric pallet stacker moves and stacks palletized goods with little physical effort, making the workplace safer and lowering the amount of work that needs to be done. With their electric drive systems, advanced battery technology, and precise moving mechanisms, these machines can be used in a wide range of settings, from small store stockrooms to large distribution centers, to make the flow of materials more efficient. Procurement experts can find stackers that work perfectly with their building and help them reach their business goals by understanding the technical specs, operational needs, and overall costs.

Understanding Electric Pallet Stackers and Their Benefits

Electric pallet stackers are a big step up from manual pallet jacks because they have driven systems that take away the physical pain of moving things the old way. Electric motors power both moving and pulling parts of these machines. They get their power from onboard battery systems, which allow them to keep working during normal work shifts. In the basic structure, there is a motor that moves things, a motor that lifts and lowers things using hydraulic or mechanical systems, and complex control systems that let workers move things precisely.

Core Components and Technical Architecture

The performance of any driven stacker relies on how well its main parts are put together. Drive motors usually run from 0.5kW to 1.2kW. Units with higher-powered AC drive motors, like those with 0.9kW motors, can go faster and climb steeper slopes better. Lifting motors, which usually have ratings between 1.5kW and 2.5kW, decide how fast things can be lifted and how much weight the equipment can safely hold. These days, modern stackers with 2.2kW AC lifting motors work well in tough situations where they need to lift things often or move heavier palletized goods.

Battery technology has come a long way. Now, maintenance-free gel batteries like the 24V/82Ah models provide steady power without the need for regular water refilling that standard lead-acid cells need. These gel batteries give the same power over a number of discharge cycles, so you can count on them to work reliably during long shifts. Modern models come with a charger built right in, so you don't need any other charging equipment. This makes operations easier and reduces the amount of infrastructure needed in places with limited room.

Operational Advantages Across Industries

There are many ways that electric stackers are useful in the workplace. When workers move boxes faster than they could by hand, throughput in warehouses goes up. Depending on the layout of the warehouse and the type of load, normal productivity gains range from 25% to 40%. The ergonomic benefits are just as important. For example, powered pulling gets rid of the repeated strain injuries that come with using a pallet jack by hand, which lowers the number of worker's compensation claims and absences.

The ability to save energy is another important benefit. Compared to internal combustion forklifts, pallet stacker electrics use a lot less energy per pallet moved. In fact, their running costs are often 60% to 70% cheaper when fuel, upkeep, and emissions compliance are taken into account. Electric units are more nice to work in because they are quiet. This is especially helpful in store settings where stackers work near customers during business hours. Controlled descent speeds, stability systems, and user presence monitors are some of the better safety features that make powered units and manual tools much safer than they used to be.

Essential Criteria for Choosing the Right Electric Pallet Stacker

To choose the best electric pallet stacker for your building, you need to carefully compare working needs with equipment skills. This method based on criteria makes sure that the equipment chosen gives the required performance while avoiding over-specification that raises costs without providing any practical benefits.

Load Capacity and Lifting Height Requirements

The most important thing that determines whether or not a piece of equipment is suitable is its load capacity. Standard stackers can hold between 1,000 kg and 1,600 kg, which is enough for most retail and small industrial tasks. For factories and distribution centers that deal with heavy industrial goods, you need units that are designed to hold a lot of weight and have strong frames that stay stable even when they lift the heaviest loads to full height extensions.

Lifting height needs are very different depending on the job. Standard shelving in retail stockrooms may only need a lift of 2.5 to 3 meters, but high-bay buildings need lifts that can go at least 4.5 meters. The connection between lifting height and load capacity is very important. As loads get heavier, stackers become less stable, so it's important to make sure that the specifications are perfectly matched to make sure they work safely. Equipment with strong structural frames and wide wheelbases stays more stable even when it's fully stretched and carrying the most weight.

Battery Performance and Power Systems

The choice of battery has a big effect on how it works and how much it costs to own. Maintenance-free gel battery systems work reliably and don't need much upkeep. This makes them good for businesses that don't have a dedicated repair staff or that work with multi-shift operations and need to cut down on downtime. Most mid-capacity stackers have a 24V/82Ah setup that lets them run continuously for six to eight hours with modest use, which works well for single-shift operations.

Lithium battery choices should be looked at by facilities that work multi-shift patterns or have very demanding job cycles. Li-ion battery compatibility offers several operational benefits, such as the ability to charge during breaks, the elimination of the need to change batteries, a longer service life of four to six years compared to two to three years for regular batteries, and consistent power delivery throughout the discharge cycle. Even though the beginning costs are higher, lithium technology often ends up being cheaper in the long run because it requires less work, doesn't need spare batteries, and remains effective for longer.

Maneuverability and Space Considerations

The layout of the warehouse has a big impact on the choice of tools. Compact stackers made for narrow aisles make it possible to store more, which is especially useful in urban facilities where room costs are still high. Fork length and width can be changed to precisely match pallet sizes and hallway layouts, making the best use of space while still keeping safe spacing.

The turning radius of an item determines whether it can move through tight places, loading areas, and busy work areas. Walkie stackers, which are run by walking workers, can turn the tightest and are best for store stockrooms and storage areas with a lot of items. Rider pallet stacker electrics can move things faster over longer distances, but they need bigger lanes and room to turn. Careful mapping of trip routes, storage places, and operating processes helps you figure out what kind of maneuverability your application needs.

Procurement Guide: Buying, Renting, and After-Sales Support

Strategic buying includes more than just the specs of the equipment. It also includes choosing the right provider, finding the best way to pay for it, and setting up long-term support systems that keep operations running smoothly. When buying expensive tools that will improve the warehouse's capacity over a number of years, these things become especially important.

Identifying Qualified Suppliers and Manufacturers

When evaluating a supplier, you should look at more than just the price of the tools. Quality of manufacture and technical standards have a direct effect on how reliable and long-lasting technology is. Established companies like Diding Lift, which has a lot of experience designing and making material handling equipment, usually make better products than generic sellers who offer what seem to be the same specs. The difference can be seen in the small things, like how well the parts fit together, the quality of the welds and structural elements, the choice of electrical and hydraulic parts, and how well the parts are tested before they are delivered.

The power of a regional service network has a big effect on the purchasing experience. When your suppliers keep service centers close to your sites, they can respond quickly when fixes or maintenance are needed. Another thing to think about is the availability of parts. Manufacturers with large dealer networks tend to keep more extra parts on hand than smaller providers, which cuts down on downtime when parts need to be replaced. Asking for customer examples from companies in the same industry and operating style can give you useful information about how well a supplier really does in the real world and how good their help is.

Purchase Versus Leasing Financial Analysis

Outright buying is the clearest way to become an owner, and it works for businesses that have the money and are sure of their long-term property needs. When figuring out the total cost, you should include not only the price of the machine itself, but also the costs of installation, user training, spare parts, and expected upkeep costs over the life of the machine. Commercial lenders can also help you finance equipment, which can help you keep your operating cash and spread out the costs over a normal five to seven-year repayment term.

Leasing works well for businesses that can't be sure of their volume forecasts, whose demand changes with the seasons, or who don't have enough cash to buy everything they need all at once. Operating leases keep the balance sheet flexible while giving you fixed monthly costs that make planning easier. Some types of leases cover upkeep, which means that the lessor takes on the costs and duties of service. Rental options work well for short-term needs, but the daily fees make them less cost-effective than leasing or buying tools that will be needed for longer than a few months.

Warranty Coverage and After-Sales Service Contracts

There are big differences in the warranty terms between sellers, which has an effect on the owner's risk during the early, crucial stages of operations. Comprehensive warranties that cover parts, labor, and travel costs for service techs for 12 to 24 months are the norm for good makers in the business. Reviewing the terms and conditions of the warranty helps keep you from being surprised. For example, some coverage requires that you follow certain repair plans or only use authorized service providers.

Longer service contracts let you plan ahead for repair costs and make sure that your equipment gets professional care throughout its life. Most of the time, these agreements cover certain fixes, offer priority service response, and include planned preventative maintenance. The value offer depends on how much equipment is used and how well the company can do its own upkeep. Service contracts are often a better way for businesses to save money than handling repair themselves or calling for service as needed. This is especially true for businesses that work more than one shift.

Customization Options and Technical Support

Standard equipment designs work well for many uses, but the ability to customize them lets them be optimized for specific operating needs. You can change the fork's length and width to perfectly match the sizes of pallets and types of loads that are popular in your building. Specialized attachments make the machine more useful. For example, side shifters let you move the forks laterally without moving the whole machine, and special fork designs can handle barrels, coils, and other unusual loads.

The level of technical help affects operational success, especially during the implementation phase. Manufacturers that offer full user training make sure that your team knows how to use the equipment correctly, follow safety rules, and fix basic problems before it is put into regular use. Installation help makes integration go more smoothly by taking care of facility-specific issues and making sure the equipment works right in your setting. As your business grows, having access to ongoing expert consultations can help you answer operational questions and get the most out of your tools.

Conclusion

It's important to carefully weigh working needs, technical specs, and total cost when choosing the right electric pallet stacker. The tools you choose has a direct effect on how much work gets done, how safe workers are, and how much it costs to run the building over its lifetime. It is possible to find the best stackers for your needs by carefully comparing their load limits, lifting heights, battery technologies, and mobility features against how you normally run your business. By comparing stackers to other options for moving materials, you can be sure that your investment meets the specific needs of your business and not just follows general buying trends. Sticking to the right operating methods and repair schedules makes equipment last longer and give you a better return on your investment. This protects the money you invested and keeps the equipment working well.

FAQ

What is the typical lifespan of an electric pallet stacker?

Electric stackers usually last between eight and twelve years if they are well taken care of, but the exact length of time they last depends on how often they are used and how well they are kept. When used on a single-shift with modest job cycles, equipment usually lasts longer than ten years. However, when used on multiple shifts, equipment may need to be replaced every six to eight years because of wear and tear that affects performance and dependability. When compared to reactive repair methods, regular preventive maintenance greatly increases the service life.

How do I determine the appropriate load capacity for my facility?

The choice of load capacity should be based on the largest palletized loads that are usually handled, not on the heaviest weights that are sometimes reached. Standard storage pallets can hold between 1,200 kg and 1,500 kg, which is enough for most activities. For factories that deal with denser goods or loads on multiple pallets, they need tools that can handle a lot of weight. By adding a safety cushion of 15% to 20% above the usual maximum load, you can change how the machine works and still be sure it is safe to use across a wide range of weights.

Can electric pallet stackers operate in outdoor environments?

Standard electric stackers are made to work on flat, smooth surfaces inside and shouldn't be used outside all the time. Weather, high temperatures, and wetness can damage electrical systems and speed up the breakdown of parts. Facilities that need to be able to work outside should ask for all-terrain versions or other types of tools that can be used outside. Occasional moving through covered loading docks or short periods of time spent outside when the weather is nice usually don't pose much of a risk.

Partner with Diding Lift for Your Material Handling Solutions

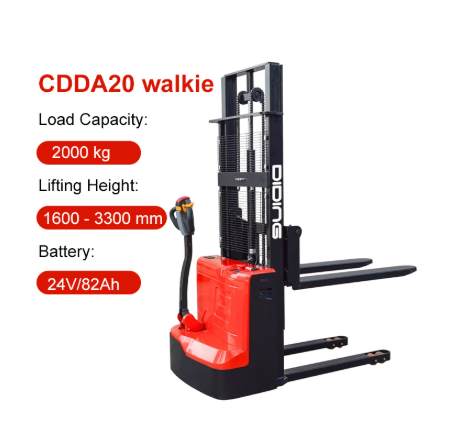

Diding Lift knows that picking out warehouse tools is a big choice that can affect how well your business runs and how competitive it is. Our electric pallet stackers use tried-and-true technologies, such as gel battery systems that don't need to be maintained and charge themselves, strong 2.2kW AC lifting motors, and powerful 0.9kW AC drive motors. The strong structure design makes it very stable when moving heavy loads, and the fork dimensions can be changed to fit your exact needs. Upgrades to lithium batteries are available that improve performance for heavy multi-shift activities.

We've been experts in material handling tools for twelve years, so we know a lot about the problems that warehouses, distribution centers, and factories in a wide range of businesses face. Our dedication goes beyond just selling equipment; it also includes full support, such as expert advice, training for operators, and quick service after the sale. Our team is ready to help you find the electric pallet stacker options that will help you reach your operational goals, whether you're setting up a new building, replacing old equipment, or increasing capacity to meet rising demand. Talk to our experts at sales@didinglift.com about your unique needs and find out why procurement professionals trust Diding Lift as their supplier of material handling tools.

References

Meyers, F.E., & Stephens, M.P. (2019). Manufacturing Facilities Design and Material Handling (5th ed.). Purdue University Press.

Frazelle, E. (2016). World-Class Warehousing and Material Handling (2nd ed.). McGraw-Hill Education.

Richards, G. (2018). Warehouse Management: A Complete Guide to Improving Efficiency and Minimizing Costs in the Modern Warehouse (3rd ed.). Kogan Page Publishers.

Mulcahy, D.E. (2017). Materials Handling Handbook. McGraw-Hill Professional Publishing.

Tompkins, J.A., & Smith, J.D. (2020). The Warehouse Management Handbook (4th ed.). Tompkins Press.

International Material Management Society. (2021). Powered Industrial Truck Standards and Best Practices for Warehouse Operations. IMMS Technical Publications.
