2 Ton Electric Pallet Stacker vs 1.5 Ton: Which Capacity Is Right?

When selecting an Electric Pallet Stacker for warehousing and logistics operations, load capacity is one of the core decision factors. The 1.5-ton and 2-ton classes are adjacent but distinctly positioned load grades. The difference between them goes far beyond "an extra 500kg"—it involves a comprehensive trade-off between operational coverage, equipment cost, aisle adaptability, and future expansion headroom. This guide will help you evaluate the numbers from a practical application perspective.

1. Load Capacity Comparison: The Real Meaning Behind the Numbers

Here is a side-by-side comparison of the core parameters for the two load classes:

Key Insight: The load capacity gap is amplified in high-level operations. A 1.5-ton stacker may only safely stack 800-900kg at 3 meters, while a 2-ton stacker (like the CDDA) can still maintain approximately 1100kg residual capacity at the same height.

2. Application Matching: Which Load Class Fits Your Operations?

The core of load class selection is the combination of actual cargo weight and operating height:

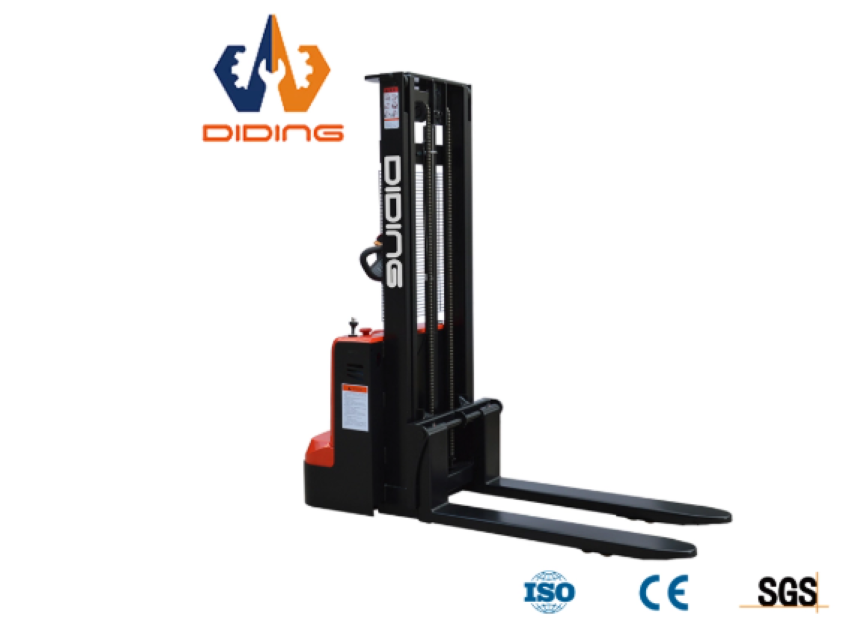

Product Reference: The 2T Electric Walkie Pallet Stacker CDDA has a rated capacity of 2000kg and retains 1100kg residual capacity at a lift height of 3500mm. If your cargo weight approaches 1.5 tons and requires high-level stacking, a 2-ton class equipment is the safer choice.

3. Cost vs. Benefit: Purchase Price Difference vs. Long-Term Value

Recommendation: If your current cargo weight is consistently below 1.2 tons with no growth expectation, the 1.5-ton class is sufficient. If your cargo weight approaches 1.5 tons, or if there is potential for business expansion, the additional investment in a 2-ton class (amortized at approximately 5,000-10,000 RMB per year) provides greater safety margins and broader application coverage.

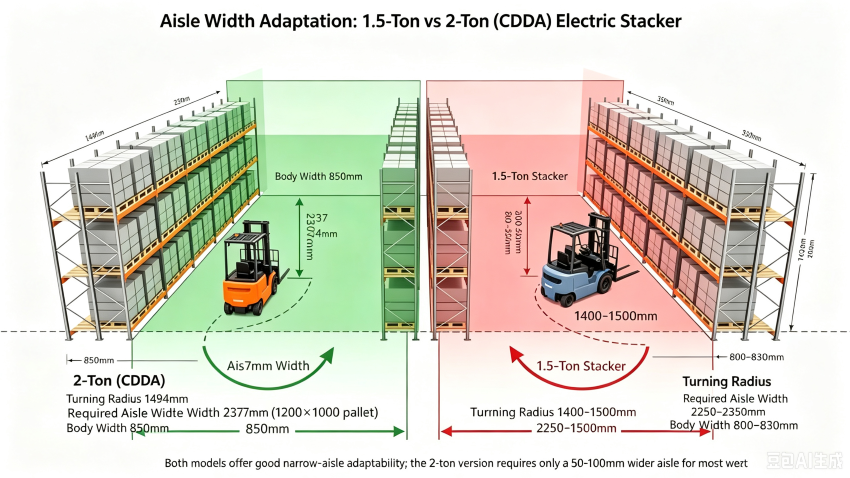

4. Aisle and Space Adaptability Comparison

The difference in narrow-aisle adaptability between the two classes is minimal. The 2-ton class requires only a slightly wider aisle (approximately 50-100mm more), which is acceptable for the majority of warehouses.

5. Decision Recommendations

6. Conclusion and Action Recommendations

Choosing between a 2-ton and a 1.5-ton Electric Pallet Stacker is essentially a trade-off between current needs and future flexibility. If your current cargo weight approaches or exceeds 1.5 tons, or if you need high-level stacking, opting for a 2-ton class equipment (such as the CDDA) is a more prudent long-term decision.

Diding Lift has 12 years of experience and a 65,000 m² factory & workshop, with products holding Europe EN & ISO, CE, EU Certificates, and supports ODM/OEM cooperation & customization. Its 2T Electric Walkie Pallet Stacker CDDA, featuring a 2000kg load capacity, 1494mm turning radius, and AC motor system, is a mature choice offering both flexibility and reliability for 2-ton stacking applications.

If you need detailed selection recommendations tailored to your specific operating conditions, please send an email to sales@didinglift.com, and our professional team will provide one-on-one support.
