Moving a dead electric pallet truck can be challenging, but it's not impossible. When your pallet truck loses power or malfunctions, you'll need to follow specific steps to safely relocate it. First, assess the situation and ensure the area is clear of obstacles. Next, release the brake manually using the designated lever or mechanism. Then, enlist the help of colleagues to push or pull the truck to a safe location. For heavier loads, consider using a tow strap or another operational pallet truck to assist. Remember to keep the forks lowered during transport to maintain stability. Once in a secure area, investigate the cause of the breakdown and contact a qualified technician for repairs. Always prioritize safety and proper handling techniques when moving a dead electric pallet truck.

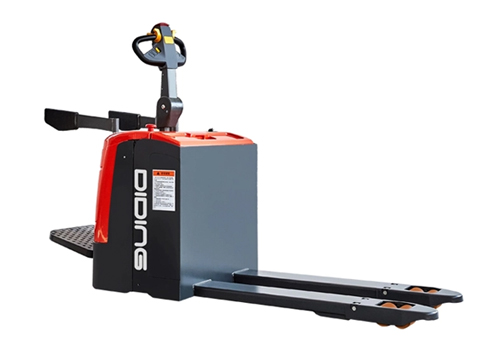

![Pallet Truck]( "Pallet Truck")
Understanding Electric Pallet Truck Mechanics
Components of an Electric Pallet Truck
Electric pallet trucks are sophisticated machines designed for efficient material handling. The main components include the battery, electric motor, hydraulic system, control panel, and wheels. The battery serves as the power source, supplying energy to the electric motor. This motor drives the hydraulic pump, which controls the lifting and lowering of the forks. The control panel houses the operational buttons and indicators, allowing operators to maneuver the truck with precision. High-quality wheels, typically made of polyurethane or rubber, ensure smooth movement across various surfaces.
Common Causes of Electric Pallet Truck Failures
Several factors can lead to an electric pallet truck becoming inoperative. Battery depletion is a frequent culprit, especially if regular charging routines are neglected. Electrical system malfunctions, such as loose connections or damaged wiring, can disrupt power flow. Hydraulic issues, including leaks or pump failures, may prevent the forks from lifting or lowering properly. Mechanical problems, like worn-out wheel bearings or damaged drive units, can also render the truck immobile. Understanding these potential failure points helps in diagnosing and addressing issues promptly.
Safety Features and Their Impact on Movement
Modern electric pallet trucks incorporate numerous safety features that can affect movement when the truck is non-operational. The automatic parking brake, for instance, engages when the truck is stationary to prevent unintended movement. Emergency stop buttons, when activated, cut off power to all systems. Load sensors may lock the lifting mechanism if weight limits are exceeded. While these features enhance safety during normal operation, they can complicate the process of moving a dead pallet truck. Familiarity with these systems and how to manually override them when necessary is crucial for safe relocation.
Step-by-Step Guide to Moving a Dead Electric Pallet Truck
Initial Assessment and Preparation
Before attempting to move a dead electric pallet truck, conduct a thorough assessment of the situation. Verify that the truck is indeed non-operational by checking the battery charge level and attempting to restart the system. Inspect the surrounding area for potential hazards or obstacles that could impede movement. Clear the path you intend to use for relocation, ensuring it's wide enough and free of debris. If the pallet truck is carrying a load, evaluate whether it's safe to move with the load or if unloading is necessary. Gather any required tools, such as a manual pump handle or tow straps, and assemble a team of colleagues to assist with the move.
Manual Release of Safety Mechanisms
Most electric pallet trucks have built-in safety mechanisms that need to be disengaged before manual movement. Locate the manual brake release lever, typically found near the base of the handle or under a maintenance panel. Engage this lever to disengage the electromagnetic brake system. Some models may require the use of a special tool or key to access this feature. Next, check for any additional locking mechanisms, such as steering locks or hydraulic bypass valves. Consult the operator's manual for specific instructions on releasing these systems, as the process can vary between manufacturers and models. Exercise caution when disengaging safety features to prevent unexpected movement of the truck.
Techniques for Physical Movement
With safety mechanisms disengaged, you can now physically move the pallet truck. For lighter trucks or shorter distances, manual pushing or pulling may suffice. Position team members at strategic points around the truck, ensuring everyone has a firm grip and stable footing. Coordinate your efforts to push or pull in the same direction, moving slowly and steadily. For heavier trucks or longer distances, consider using a tow strap connected to another operational vehicle, such as a forklift or tug. Attach the strap to designated towing points on the dead pallet truck, ensuring a secure connection. Move at a slow, controlled pace, with one person guiding the towed truck to maintain proper alignment. Throughout the process, remain vigilant for any signs of instability or potential hazards.
Post-Movement Procedures and Troubleshooting
Securing the Pallet Truck in Its New Location
Once you've successfully relocated the dead electric pallet truck, take steps to secure it in its new position. Engage any manual locking mechanisms that were previously released. If possible, use wheel chocks to prevent unintended movement, especially if the truck is on an incline. Ensure the forks are fully lowered to the ground for maximum stability. If the truck was carrying a load during the move, carefully assess whether it's safe to leave the load in place or if it should be removed. Place appropriate warning signs or barriers around the disabled truck to alert others of its non-operational status and potential hazard.
Diagnostic Steps for Identifying the Cause of Failure
With the pallet truck safely secured, begin the process of diagnosing the underlying issue. Start by checking the most common and easily resolvable problems. Verify the battery charge level and connections, ensuring there's no corrosion or loose terminals. Inspect the fuses and circuit breakers for any signs of tripping or damage. Examine the control panel for error codes or warning lights that might indicate specific system failures. Check the hydraulic fluid levels and look for any visible leaks in the system. If these initial checks don't reveal the problem, consider using diagnostic tools or software specific to your pallet truck model for more in-depth analysis. Document your findings to assist maintenance personnel or technicians in their repair efforts.
Maintenance and Prevention Strategies
To minimize the occurrence of dead electric pallet trucks in the future, implement a robust maintenance and prevention strategy. Establish a regular maintenance schedule that includes battery care, hydraulic system checks, and electrical system inspections. Train operators in proper usage techniques and daily inspection procedures to catch potential issues early. Implement a system for reporting and addressing minor problems before they escalate into major failures. Consider investing in predictive maintenance technologies, such as IoT sensors or data analytics tools, to anticipate and prevent breakdowns. By prioritizing proactive maintenance and operator education, you can significantly reduce the frequency of pallet truck failures and the need for emergency relocation procedures.
Conclusion
Moving a dead electric pallet truck requires careful planning, teamwork, and adherence to safety protocols. By understanding the mechanics of these essential machines and following the step-by-step guide provided, you can safely relocate a non-operational pallet truck without causing further damage or risking injury. Remember that prevention is key – regular maintenance and prompt attention to minor issues can significantly reduce the likelihood of unexpected breakdowns. Always prioritize safety and consult with professionals when faced with complex mechanical problems. With the right approach, you can efficiently manage dead pallet truck situations and minimize disruptions to your operations.
